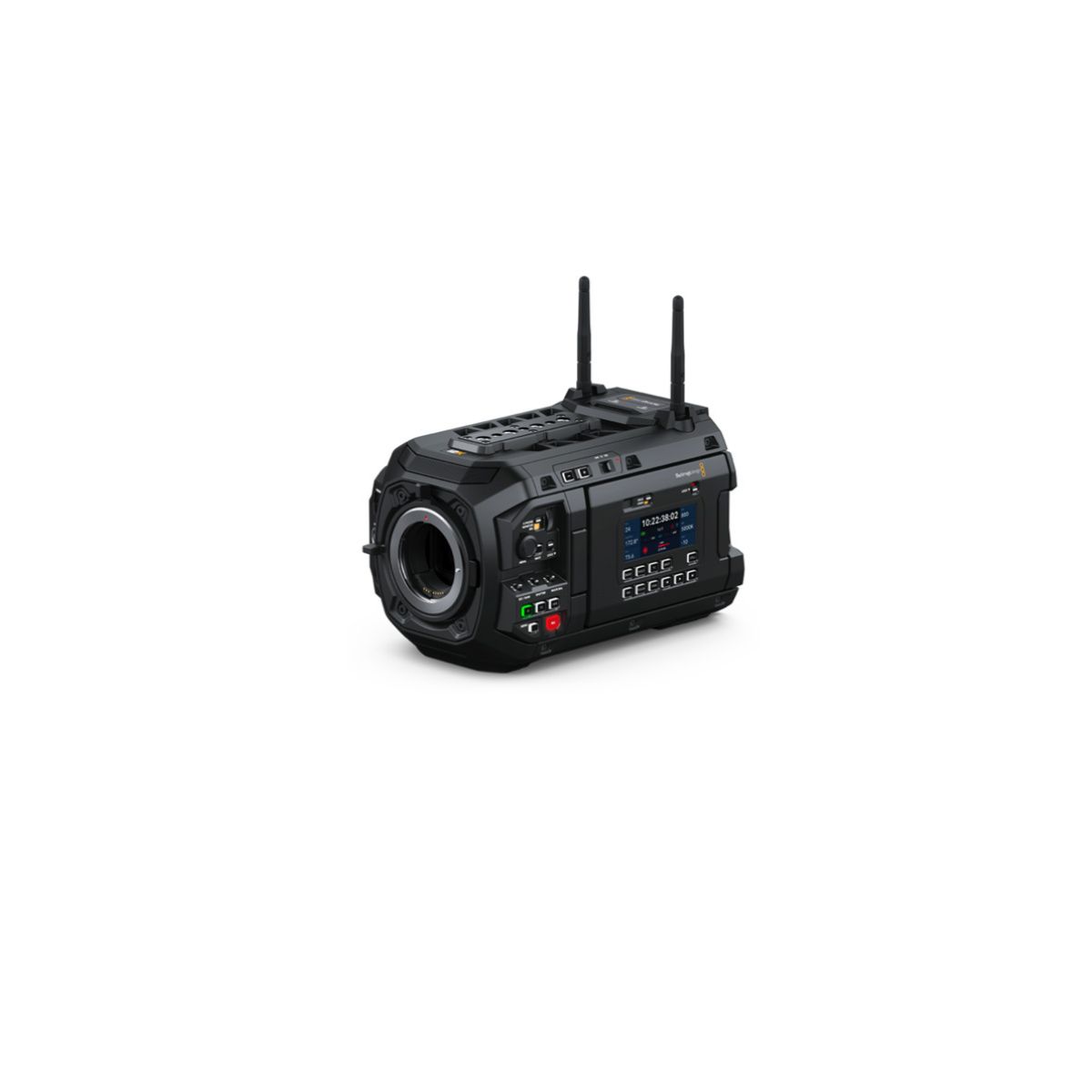

Blackmagic URSA Cine 12K LF 100G Body

This powerful Blackmagic URSA Cine 12K 100G model has a much faster 100G Ethernet port for SMPTE-2110 live video at incredibly high frame rates. With the new B4 lens mount for broadcast lenses, it can deliver up to 240fps! Your main cameras can also be high-frame-rate cameras, perfect for live sports and replay. You still get the large format RGBW 36x24mm sensor and 16 stops of dynamic range. It also works with the new URSA Cine Studio Viewfinder for a complete studio camera solution.

Contact to Seller

Camera Features

Effective Sensor Size

 35.64 mm x 23.32 mm (Large Format)

Pixel Pitch

 2.9 microns

Lens Mount

 URSA Cine lockable EF mount. Interchangeable with optional URSA Cine PL mount.

Lens Control

 Lens control of compatible EF lenses. Lens data from compatible PL lenses and control of some PL lenses.

Dynamic Range

 16 Stops

Shooting Formats

12,288 x 8040 (12K 3:2 open gate)
12,288 x 6912 (12K 16:9)
12,288 x 6480 (12K 17:9)
12,288 x 5112 (12K 2.4:1)
9648 x 8040 (12K 6:5)

9408 x 6264 (9K 3:2)
8688 x 4896 (9K 16:9)
9312 x 4896 (9K 17:9)
9312 x 3864 (9K 2.4:1)
7680 x 6408 (9K 6:5)

8192 x 5360 (8K 3:2 open gate)
8192 x 4608 (8K 16:9)
8192 x 4320 (8K 17:9)
8192 x 3408 (8K 2.4:1)
6432 x 5360 (8K 6:5)

4608 x 2592 (4.6K 16:9 B4 crop)

4096 x 2680 (4K 3:2 open gate)
4096 x 2304 (4K 16:9)
4096 x 2160 (4K 17:9)
4096 x 1704 (4K 2.4:1)
3216 x 2680 (4K 6:5)

Frame Rates

 Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected.

High Speed Frame Rates

12K 3:2 open gate up to 80 fps

12K 17:9 up to 100 fps

12K 2.4:1 up to 120 fps

9K 3:2 Super 35 up to 100 fps

8K / 4K 3:2 open gate up to 144 fps

8K / 4K 2.4:1 up to 224 fps

4.6K B4 crop 16:9 up to 240 fps

Built in ND Filters

Button activated ND filters with clear, 2-stop, 4-stop and 6-stop IR ND filters.

Focus

Focus button turns on peaking, auto focus available using compatible lenses.

Iris Control

Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode.

Screens

2 x Monitoring Screens

1 x Camera Status Screen

Monitoring Screen Dimensions

5 inch.

Monitoring Screen Resolution

1920px x 1080px

Monitoring Screen Brightness

1500 nits.

Monitoring Screen Type

LCD capacitive touchscreen

Metadata Support

 Automatically populated lens data from compatible EF lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.

Controls

 Touchscreen menus on 5 inch screen. Push buttons for other controls. 6 assignable shortcut keys plus 6 assignable viewfinder shortcut keys on optional URSA Cine EVF.

Timecode Clock

 Highly accurate timecode clock. Less than 1 frame drift every 8 hours.

Audio

Microphone

Integrated stereo microphone.

Built in Speaker

1 x mono speaker.

Media

Media

Blackmagic Media Module CF includes 2 x slots for CFexpress Type B media. Also compatible with optional Blackmagic Media Module 8TB or 16TB.

Media Format

Blackmagic



Connections

Total Video Outputs

3

SDI Video Outputs

2

SDI Rates

1.5G, 3G, 6G, 12G.

100G 2110 IP Networks

1 x 100G QSFP28 connection.

2110 IP Video Outputs

1 x 100G QSFP28 connection.

2110 IP Video Inputs

1 x 100G QSFP28 connection.

Senders and Receivers per 100G

1 x Ultra HD

Analog Audio Inputs

2 x XLR analog switchable between mic, line and AES audio. Phantom power support.

1 x 3.5mm headset jack

Analog Audio Outputs

1 x 3.5mm headset jack

Reference Inputs

Tri-Sync/Black Burst and Timecode.

PTP clock and timecode over 2110 IP network.

Viewfinder

 1 x Viewfinder USB-C with video, power, camera control data and locking connector. Works with URSA Cine EVF and PYXIS Monitor.

USB-C Monitor Outputs

2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors.

Accessories

1 x 7-pin Lemo ‘EXT’ for power out, serial communication, and run/stop.

1 x 3-pin Fischer ‘RS’ for power out and run/stop.

Computer Interface

2 x USB-C side expansion ports for camera accessories.

Software updates using side USB‑C closer to rear

Ethernet

 1 x 100Gb/s QSFP28 connector for sending and receiving 2110 IP video or SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming.

Power

1 x 8-pin Lemo compatible +24V DC power input.
