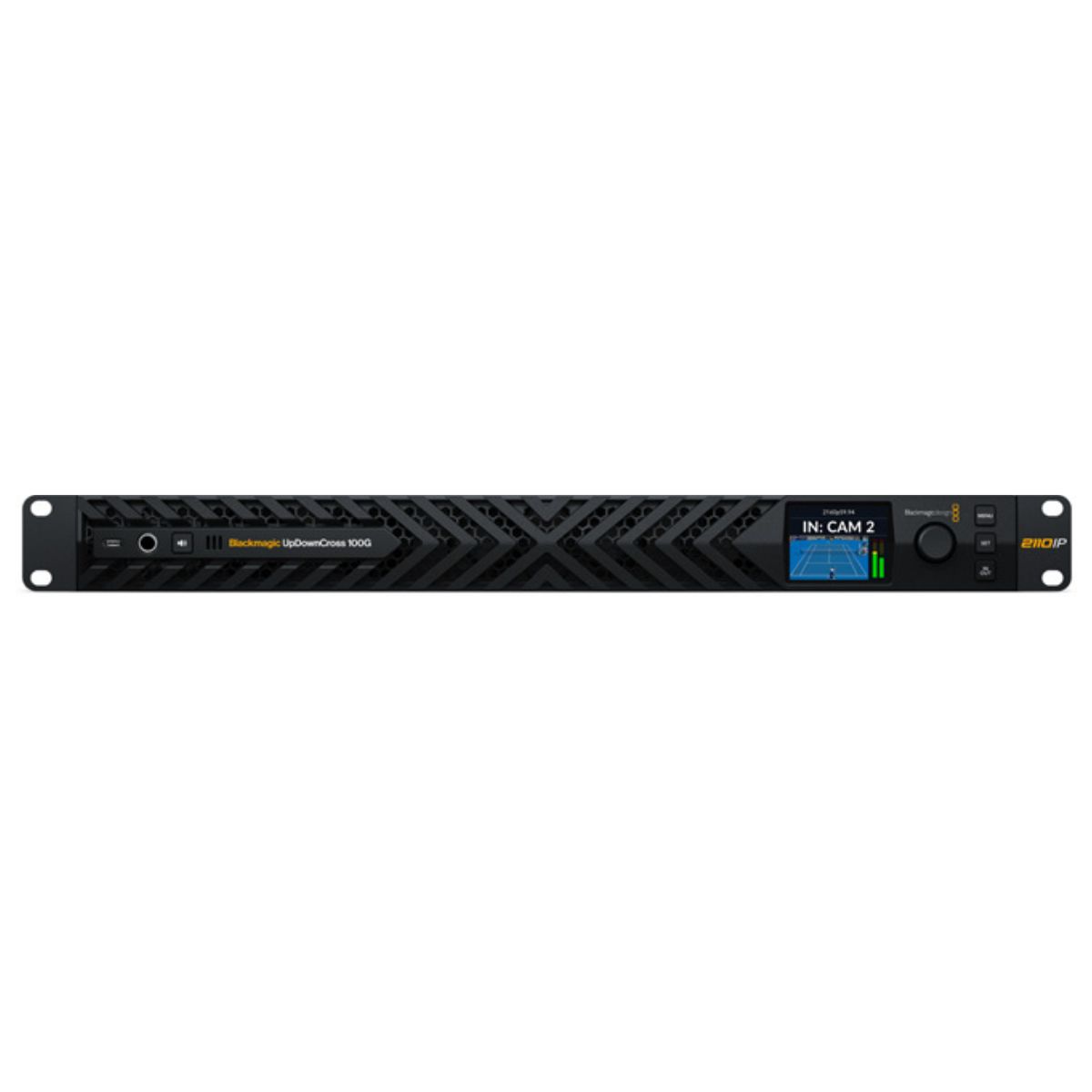

The Blackmagic UpDownCross 100G is a powerful 8-channel standards converter with native SMPTE-2110 connections via 100G Ethernet. It converts up to 8 separate channels of SD, HD, and Ultra HD video to any other standard simultaneously. The professional 1RU design features front-to-back cooling that's very quiet! It also includes redundant 100G Ethernet for full SMPTE-2022-7 compliance, dual redundant AC power supplies, and a separate NMOS control port for connecting to control networks!
Video Standards
|
SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
|
HD Video Standards |
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF25, 1080PsF29.97, 1080PsF30 |
|
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
|
SMPTE Compliance |
SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022-7 |
|
Audio Sampling |
Television standard sample rate of 48 kHz and 24 bits. |
|
Color Precision |
10-bit 4:2:2 YUV |
|
Color Space |
Rec. 709, Rec. 2020 |
Audio
|
Headphones |
Front panel headphone outputs active monitor. |
|
Built-in Speaker |
Front panel mono speaker outputs active monitor. |
|
Audio Controls |
Front panel button functions as a single press for momentary speaker ON, a double press for speaker ON / OFF plus press and hold for volume control using the search dial. |
Displays
Display
Built-in 2.2-inch LCD for monitoring video, audio, video standard, and timecode, plus menu settings. Use the search dial to scrub between all available inputs and monitor on the front panel.
Control
|
Built-in Control Panel |
2.2-inch color display, 3-button control panel, and spin knob for source and destination setup and menu settings. |
|
External Control |
RJ-45 Ethernet and USB-C. |

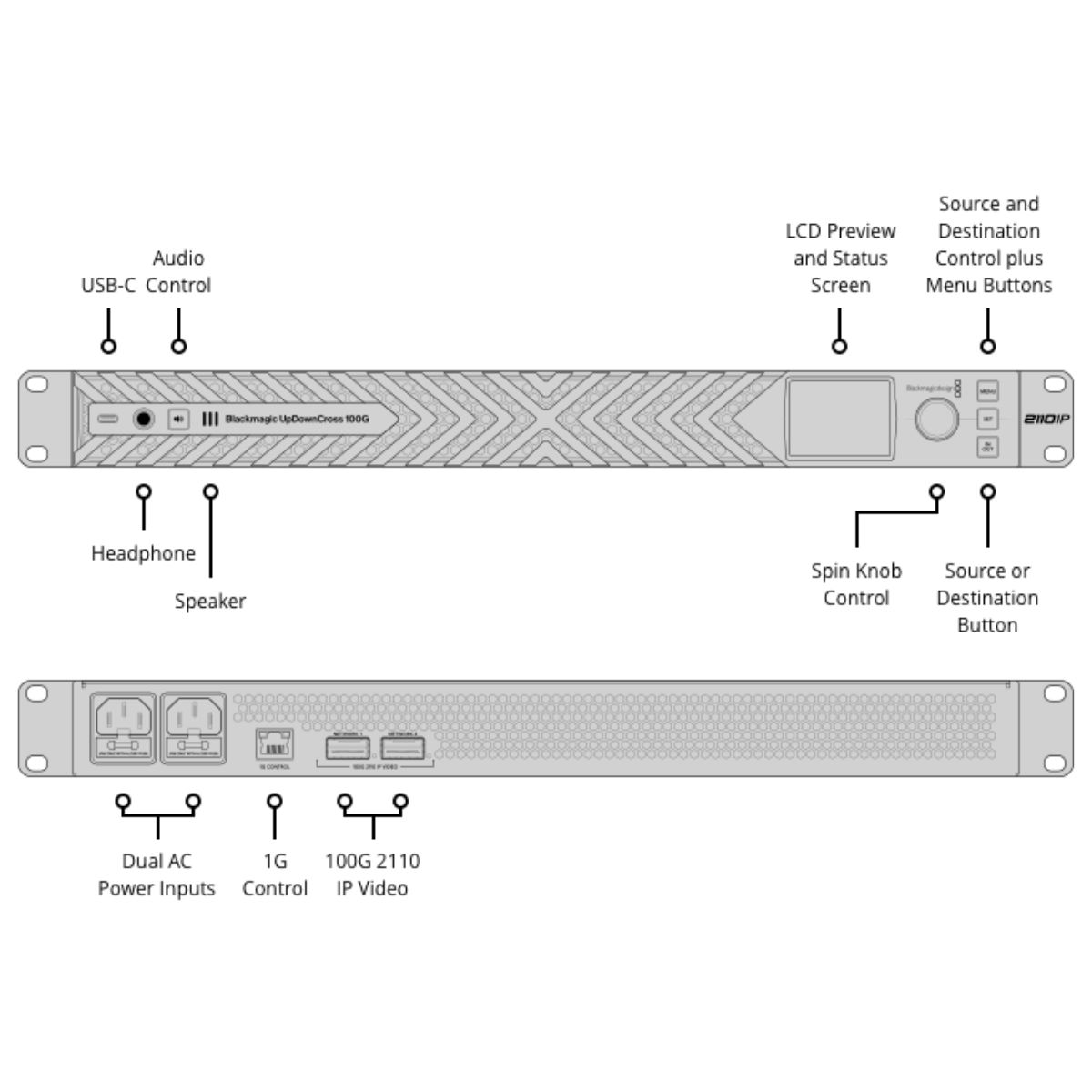

Connections
|
100G 2110 IP Networks |
2 x 100G QSFP28 connections. Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks. |
|
Senders and Receivers |
8 x Ultra HD or HD. |
|
1G Control Network |
1 x 1G RJ45 for NMOS control, configuration and firmware updates. |
|
SMPTE ST 2110 IP Audio Inputs |
16 Ch embedded audio on each 2110 IP video stream over 100G Ethernet. |
|
SMPTE ST 2110 IP Audio Outputs |
16 Ch embedded audio on each 2110 IP video stream over 100G Ethernet. |
|
Analog Audio Outputs |
1 x 6.35 mm headphone jack. |
|
Computer Interface |
1 x USB-C for configuration and firmware updates. |
|
Power |
2 x IEC C14 power inputs. |
