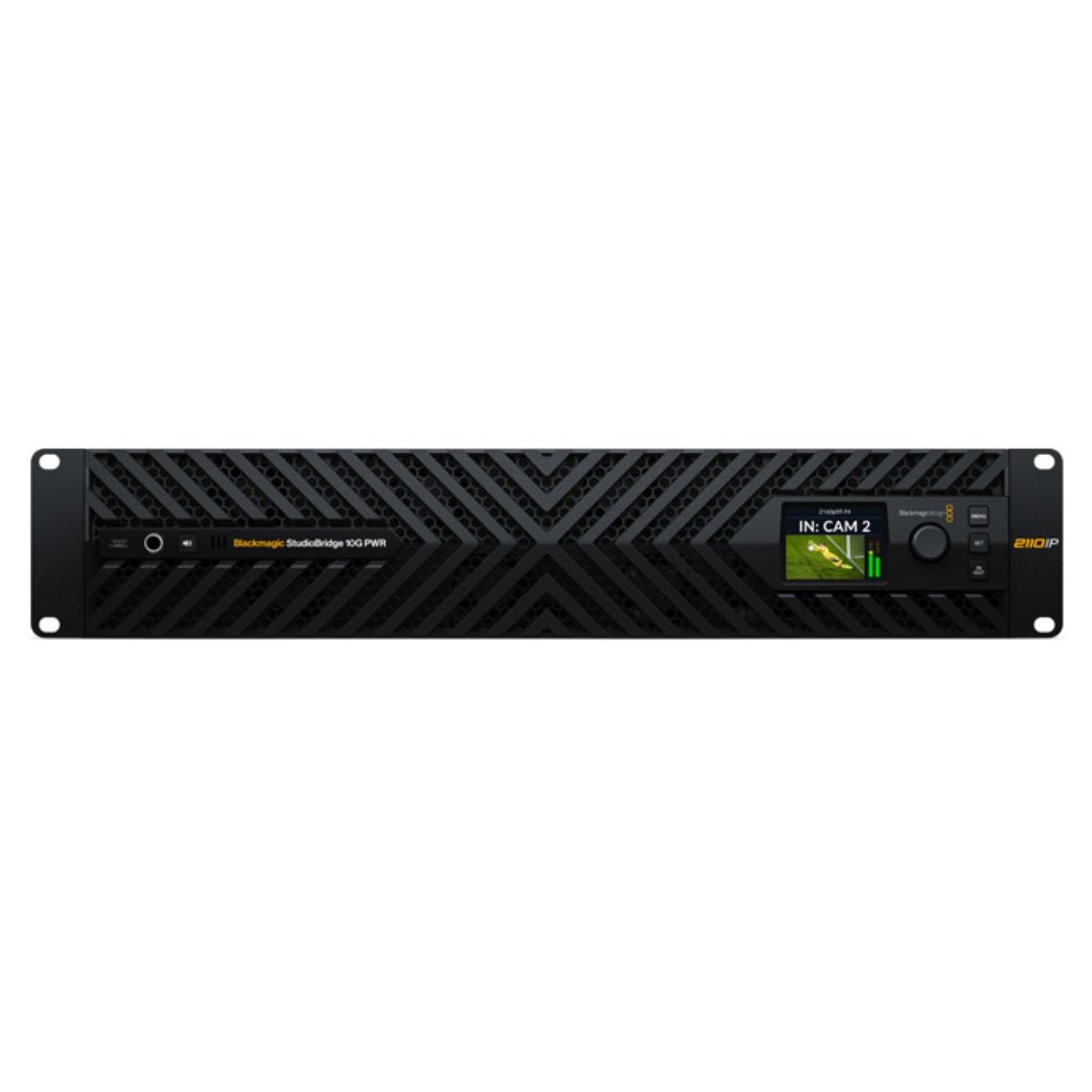

The Blackmagic StudioBridge 10G PWR is designed to bridge low-cost single link 10G Ethernet SMPTE-2110 connections into high-end redundant 100G Ethernet based systems. It converts and combines 8 channels of 10G Ethernet into a redundant pair of 100G Ethernet connections. That means you can plug in 8 separate 10G Ethernet Ultra HD devices. Each 10G Ethernet port has a massive 90W of PoE++ power, so you can power equipment such as converters and cameras directly from their Ethernet connections!
Video Standards
|
HD Video Standards |
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 |
|
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
|
SMPTE Compliance |
SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022-7 |
|
Color Precision |
10-bit 4:2:2 YUV |
|
Color Space |
Rec. 709, Rec. 2020. |
|
SDI Auto Switching |
Automatically detects HD and Ultra HD. |

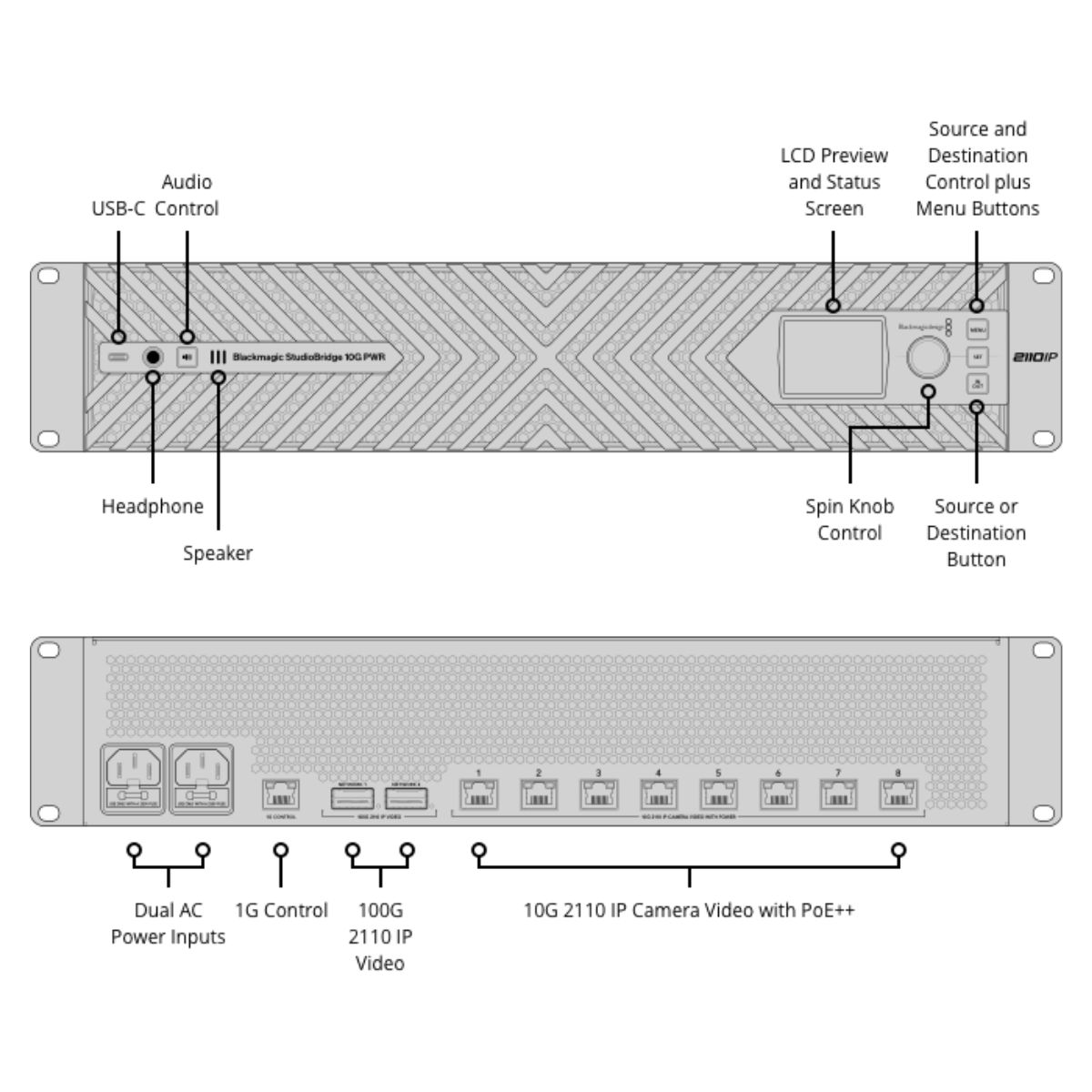

Connections
|
100G 2110 IP Networks |
2 x 100G QSFP28 connections. Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks. |
|
10G 2110 IP Networks |
8 x 10G PoE++ RJ45 connections. |
|
Senders and Receivers per 100G Pair |
8 x Ultra HD or HD. |
|
1G Control Network |
1 x RJ45 for NMOS control, configuration and software updates. |
|
SMPTE ST 2110 IP Audio Inputs |
16 Ch embedded audio on each 2110 IP video stream over 100G and 10G Ethernet. |
|
SMPTE ST 2110 IP Audio Outputs |
16 Ch embedded audio on each 2110 IP video stream over 100G and 10G Ethernet. |
|
Multi-Rate Support |
Auto detection of HD and Ultra HD. |
|
Computer Interface |
1 x USB-C for configuration and firmware updates. |
|
Power |
2 x IEC C14 power inputs. |
