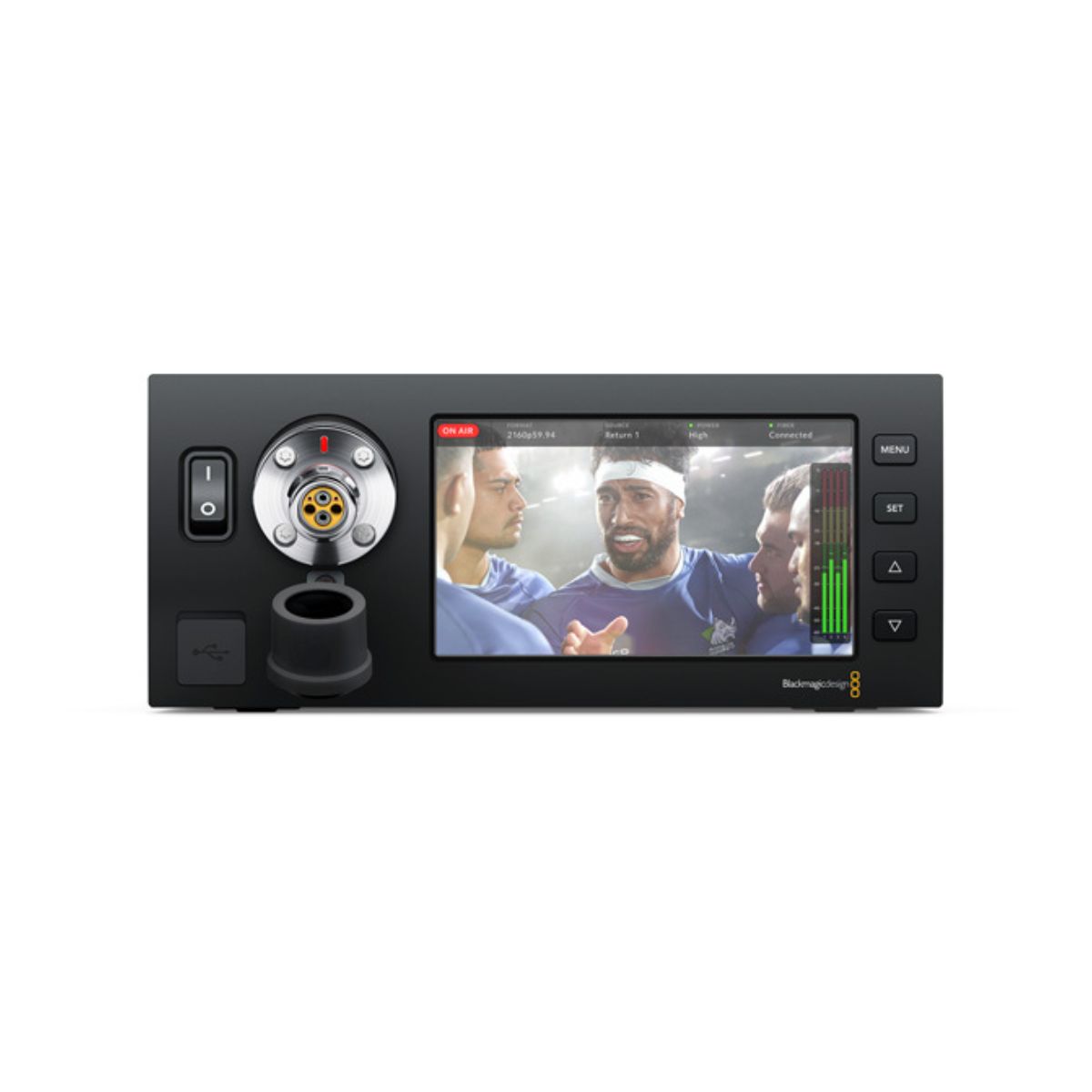

Work with remote cameras up to 2 km away from your studio or outside broadcast truck using SMPTE fiber. The Blackmagic Studio Fiber Converter converts SDI video, audio, and remote camera control connections into a single optical fiber cable, which connects to a Blackmagic Camera Fiber Converter attached to a remote camera. All video and data are transmitted using standard IP for extremely low-latency broadcast-quality video. You get 12G-SDI for an HD or Ultra HD camera feed and 3 independent HD return feeds, along with standard connections for camera control, PTZ, two dual-channel talkback intercoms, tracker talkback, tally, and a 5-inch LCD screen for monitoring camera and return feeds. The Blackmagic Studio Fiber Converter also provides power for your remote cameras and accessories.
|
HD Video Standards |
720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60 |
|
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
|
SDI Compliance |
SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M. |
|
Audio Sampling |
Television standard sample rate of 48Khz, 24-bit A/D conversion. |
|
Video Sampling |
4:2:2 |
|
Color Precision |
10-bit |
|
Color Space |
REC 709, REC 2020. |
|
Multiple Rate Support |
SDI switches between HD, 3G-SDI, 6G-SDI and 12G-SDI. |
|

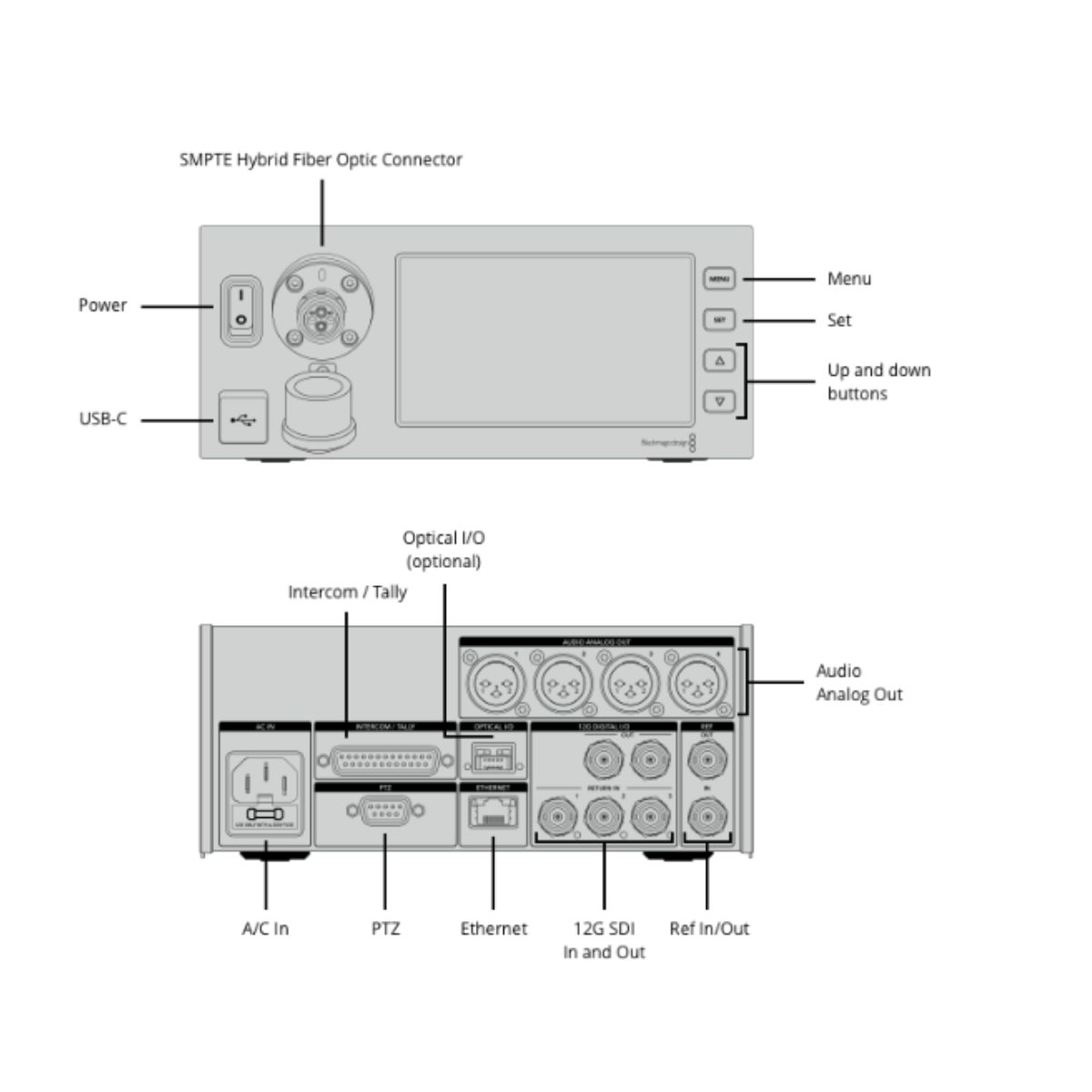

Optical Fiber Input |
1x SMPTE Hybrid Fiber Optic With a female SMPTE 304 connector. |
|
SDI Video Input |
3x 12G SDI Return feeds with Program, Camera Control, Tally, Genlock, and Intercom on Return 1. |
|
SDI Video Output |
2x 12G SDI for Ultra HD up to 60p. |
|
Talkback Audio |
SDI Channels 15 and 16 for Production, Analogue in and out are supported via a 25-pin connector for Production and Engineering talkback support. |
|
Balanced XLR Audio Outputs |
4x camera analogue audio outputs. |
|
Optical Fiber Outputs |
1x Optical I/O via 10 Gb-E (not currently active). |
