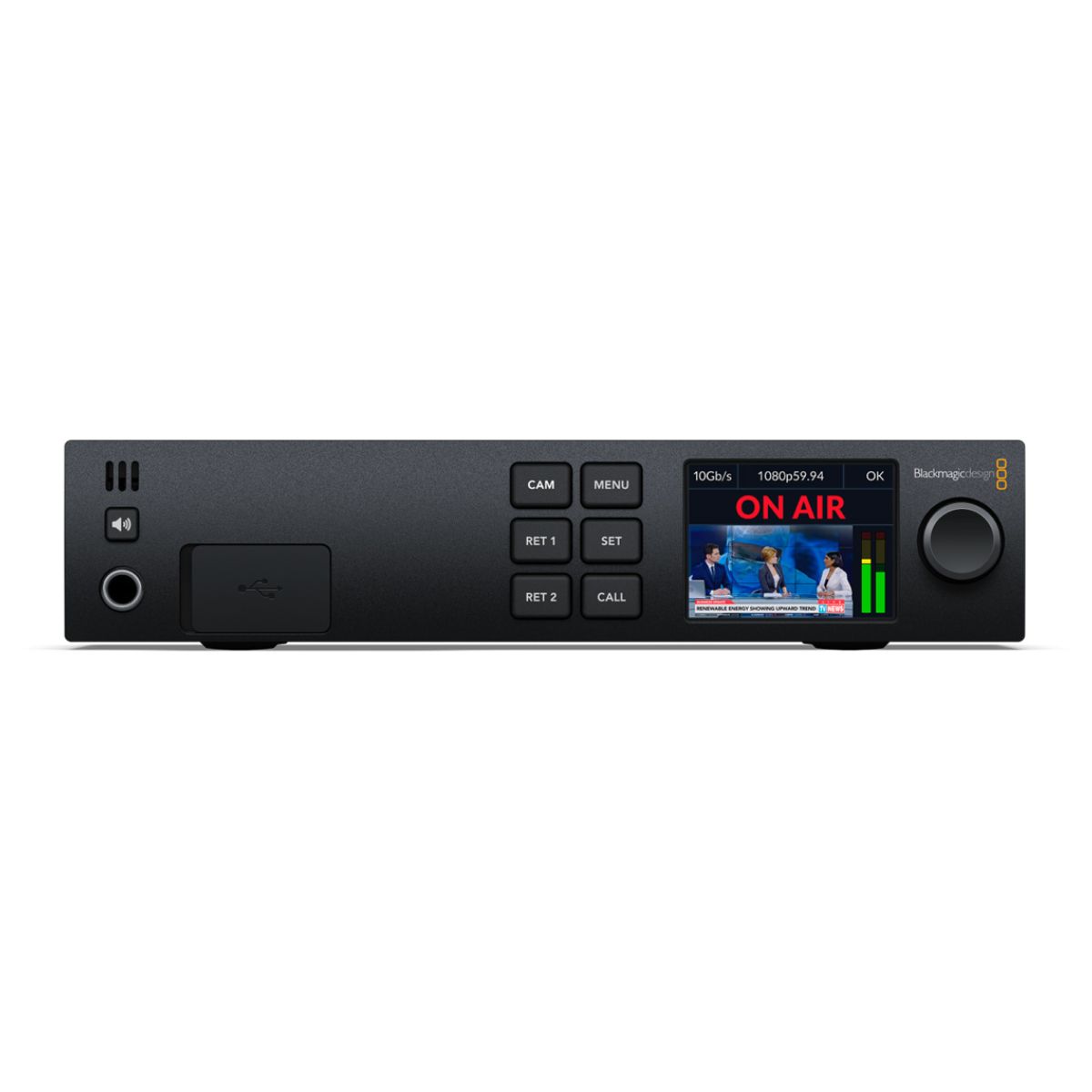

With 10G Ethernet on Blackmagic Studio Converter and Blackmagic Studio Camera Pro, you can connect all camera signals using one Ethernet IP link connection. That means the camera feed, return program feed, timecode, reference, tally, talkback and control are all sent down the single cable. That's the same benefits of SMPTE fiber, but the standard 10G copper Ethernet cable is much lower cost. The Blackmagic Studio Converter allows breakout of all the video, audio, and talkback connections at the studio end. It also includes a massive power supply that powers the camera down the Ethernet cable, so you don't even need a power source near the camera!
Standards
|
HD Video Standards |
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 |
|
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
|
SDI Compliance |
SMPTE 292M, SMPTE 424M, SMPTE 425M levels A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10. |
|
Audio Sampling |
Television standard sample rate of 48kHz and 24‑bit. |
|
Video Sampling |
4:2:2 |
|
Color Precision |
10-bit |
|
Color Space |
REC 709, REC 2020. |
|
Multiple Rate Support |
SDI switches between HD, 3G-SDI, 6G-SDI, and 12G-SDI. |
Control
|
Built-in Control Panel |
7 buttons with spin knob control and 2.2-inch color display for device control and menu settings. |
|
External Control |
RJ-45 1Gb/s Ethernet. |
Connections
|
SDI Video Inputs |
2 |
|
SDI Video Outputs |
2 |
|
SDI Monitor Outputs |
1 |
|
SDI Rates |
1.5G, 3G, 6G, 12G. |
|
Built-in Speaker |
Mono |
|
Analog Audio Inputs |
2-channel analog Program audio is supported via a 9‑pin connector. |
|
Analog Audio Outputs |
1 x 6.35 mm headphone jack. |
|
SDI Audio Input |
Return 1 with 2 channels of Program audio embedded in 1.5G/3G/6G/12G-SDI. 4 talkback channels on 13, 14, 15 and 16. Return 2 with 2 channels of audio embedded in 1.5G/3G/6G/12G-SDI. |
|
SDI Audio Output |
2 channels of Program audio embedded in 1.5G/3G/6G/12G-SDI. 4 talkback channels on 13, 14, 15 and 16. |
|
Timecode Connections |
1 x BNC In, 1 x BNC Out. |
|
Reference Connections |
1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst. |
|
Talkback Audio |
SDI channels 13 and 14 for Engineering talkback. SDI channels 15 and 16 for Production talkback. RJ-45 Talkback connector for analog external talkback systems. |
|
Screen |
2.2 inch LCD |
|
Ethernet |
1 x 10Gb/s PoE RJ‑45 Camera connector for SMPTE Fibre style workflow over Cat 6A network cable. 1 x 1Gb/s for external control and software updates. |
|
Computer Interface |
1 x USB-C. |
