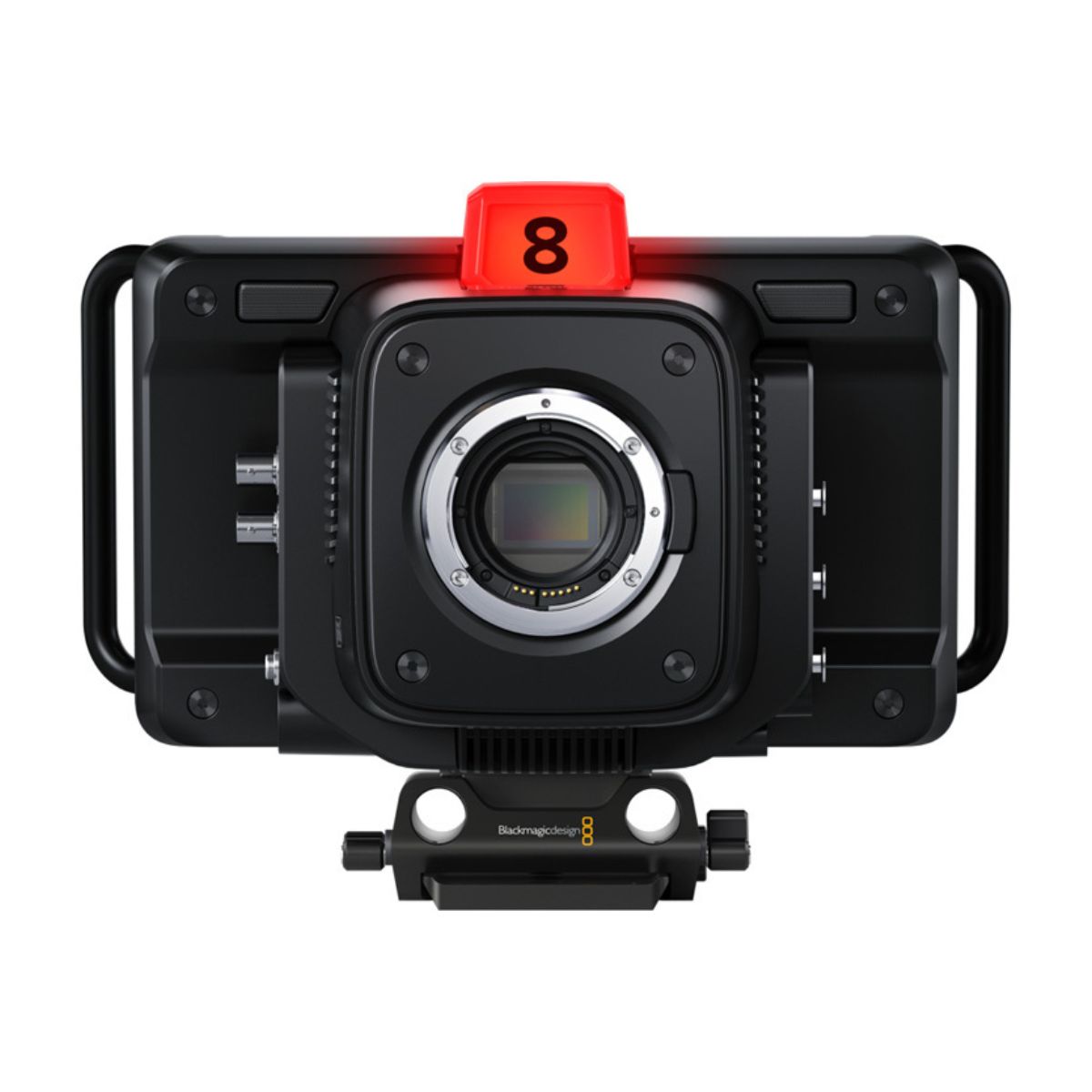

Designed as the ultimate studio camera, Blackmagic Studio Camera 6K Pro adds a larger 6K Super 35 sensor and EF lens mount for true cinematic images in live production. There are built-in ND filters that let you reduce the amount of light entering the camera, allowing you to work in a wider range of situations, including in bright sunlight. Plus stream directly to the internet with built-in streaming! You also get 12G‑SDI, HDMI, and 10G Ethernet, which allows all connections on a single cable for an SMPTE-style workflow that's much lower cost.
Camera Features
|
Effective Sensor Size |
23.10mm x 12.99mm (Super 35) |
|
Lens Mount |
Active EF mount. |
|
Lens Control |
Iris, focus, and zoom on supported lenses. |
|
Dynamic Range |
13 Stops. |
|
Dual Native ISO |
0dB and 18dB gain. |
|
Sensitivity at 0dB Gain |
f11 with 2160p59.94. f12 with 2160p50. at 2,000 lux with 89.9% reflectance. |
|
Signal to Noise Ratio |
64.62dB for 2160p Ultra HD scaled from 5.3K |
|
Recording Resolutions |
6144 x 3456 (6K) up to 50 fps 6144 x 2560 (6K 2.4:1) up to 60 fps 5376 x 3024 (5.3K 16:9) up to 60 fps 3840 x 2160 (Ultra HD) up to 60 fps |
|
Video Output Standards |
2160p, 1080p, 1080i |
|
Frame Rates |
Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates 5 ‑ 50 fps in 6K, and 5 ‑ 60 fps for all other recording resolutions. |
|
Built-in ND Filters |
Four-position ND filter with clear, 2‑stop, 4‑stop and 6‑stop IR ND filters. |
|
Focus |
Auto-focus available using compatible lenses. |
|
Screen Dimensions |
7 inch 1920 x 1200 |
|
Screen Type |
LCD capacitive touchscreen. |
|
Screen Brightness |
2000 nits |
|
Controls |
Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness, contrast and peaking dials. |
|
Mounting Options |
2 x 1/4 inch tripod mounts. 1 x 3/8 inch tripod mount. |
Media
|
Media |
2 x USB-C 3.1 Gen 1 expansion ports for external media for recording Blackmagic RAW. |
|
Media Format |
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems. |
Control
External Control
Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.
Blackmagic Control Protocol over SDI, RTMP and HDMI for external control when used with a compatible ATEM switcher with ATEM Software Control or ATEM Camera Control Panel. Includes control of some camera settings, focus, iris and zoom with compatible lenses, color corrector, tally and record start and stop to external media via USB expansion port.
Camera Control REST API over Ethernet or USB Ethernet for external control via HTTP when used with REST client applications such as Postman.
Connections
|
SDI Video Inputs |
1 |
|
SDI Video Outputs |
1 |
|
SDI Rates |
1.5G, 3G, 6G, 12G. |
|
HDMI 2.0 Video Outputs |
1 |
|
Analog Audio Input |
2 x XLR analog switchable between mic and line levels. Phantom power support. 1 x 3.5mm Stereo Input. Can also be used for Timecode input. |
|
Analog Audio Output |
1 x 5-pin XLR for talkback headset. 1 x 3.5mm TRRS mini jack for headphones with mic. |
|
SDI Audio Output |
2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI. 2 talkback channels on 15 and 16. |
|
Reference Inputs |
Tri-Sync or Black Burst when used with optional Blackmagic Studio Converter. |
|
Remote Control |
Remote camera control over SDI, HDMI or Ethernet. |
|
Ethernet |
10Gb/s |
|
Computer Interface |
2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus/zoom demand connection. Software updates using USB‑C Port A. |
