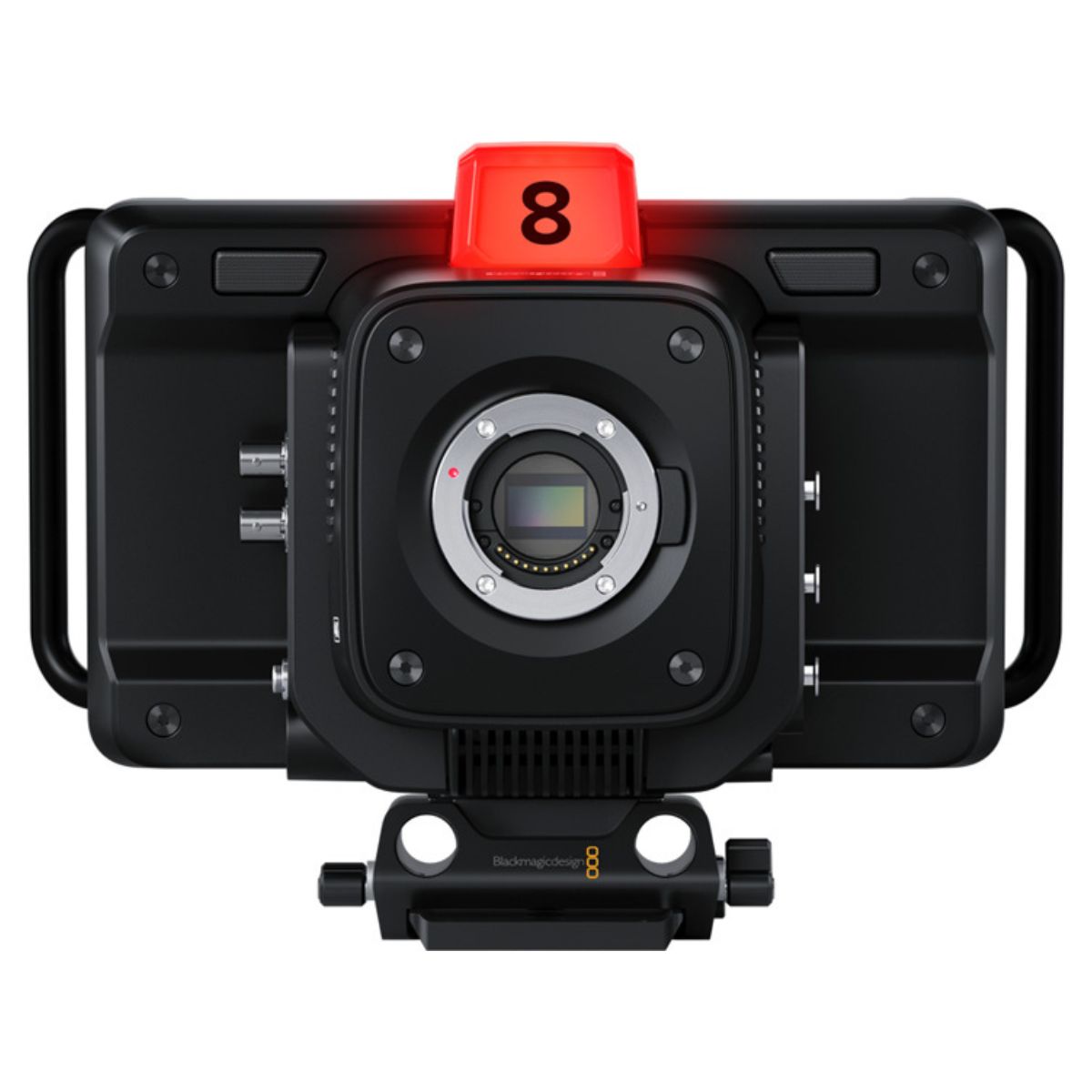

Designed for powerful SDI switchers, Blackmagic Studio Camera 4K Pro G2 adds professional 12G-SDI and 10G Ethernet connections. That's perfect when the camera is located a long distance from a switcher. There's a 12G‑SDI output and a 12G‑SDI program return input that includes camera control, talkback, and tally. You also get the same powerful HDMI output with control features. Plus, the 10G Ethernet connection allows all connections on a single cable for an SMPTE-style workflow that's much lower cost.
Camera Features
|
Effective Sensor Size |
17.78mm x 10mm (Four Thirds) |
|
Lens Mount |
Active MFT Mount. |
|
Lens Control |
Iris, focus, and zoom on supported lenses. |
|
Dynamic Range |
13 Stops. |
|
Dual Native ISO |
0dB and 18dB gain. |
|
Sensitivity at 0dB Gain |
f11 with 2160p59.94. f12 with 2160p50. at 2,000 lux with 89.9% reflectance. |
|
Signal to Noise Ratio |
63dB for 2160p. |
|
Shooting Resolutions |
3840 x 2160 (Ultra HD) up to 60 fps. |
|
Frame Rates |
23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second. Off-speed frame rates up to 60 fps in Ultra HD. |
|
Focus |
Auto focus available using compatible lenses. |
|
Screen Dimensions |
7 inch 1920 x 1200 |
|
Screen Type |
LCD capacitive touchscreen. |
|
Screen Brightness |
2000 nits |
|
Controls |
Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness, contrast and peaking dials. |
|
Mounting Options |
2 x 1/4 inch tripod mounts. 1 x 3/8 inch tripod mount. |
Audio
|
Microphone |
Integrated stereo microphone. |
|
Built-in Speaker |
1 x mono speaker. |
Media
|
Media |
2 x USB-C 3.1 Gen 1 expansion ports for external media for recording Blackmagic RAW. |
|
Media Format |
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems. |
Connections
|
SDI Video Inputs |
1 |
|
SDI Video Outputs |
1 |
|
SDI Rates |
1.5G, 3G, 6G, 12G. |
|
HDMI 2.0 Video Outputs |
1 |
|
Analog Audio Input |
2 x XLR analog switchable between mic and line levels. Phantom power support. 1 x 3.5mm Stereo Input. Can also be used for Timecode input. |
|
Analog Audio Output |
1 x 5-pin XLR for talkback headset. 1 x 3.5mm TRRS mini jack for headphones with mic. |
|
Reference Inputs |
Tri-Sync or Black Burst when used with optional Blackmagic Studio Converter. Program SDI Input on camera or on Blackmagic Studio Converter. |
|
SDI Audio Output |
2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI. 2 talkback channels on 15 and 16 |
|
Remote Control |
Remote camera control over SDI, HDMI or Ethernet. |
|
Ethernet |
10Gb/s |
|
Computer Interface |
2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus/zoom demand connection. Software updates using USB‑C Port A. |
