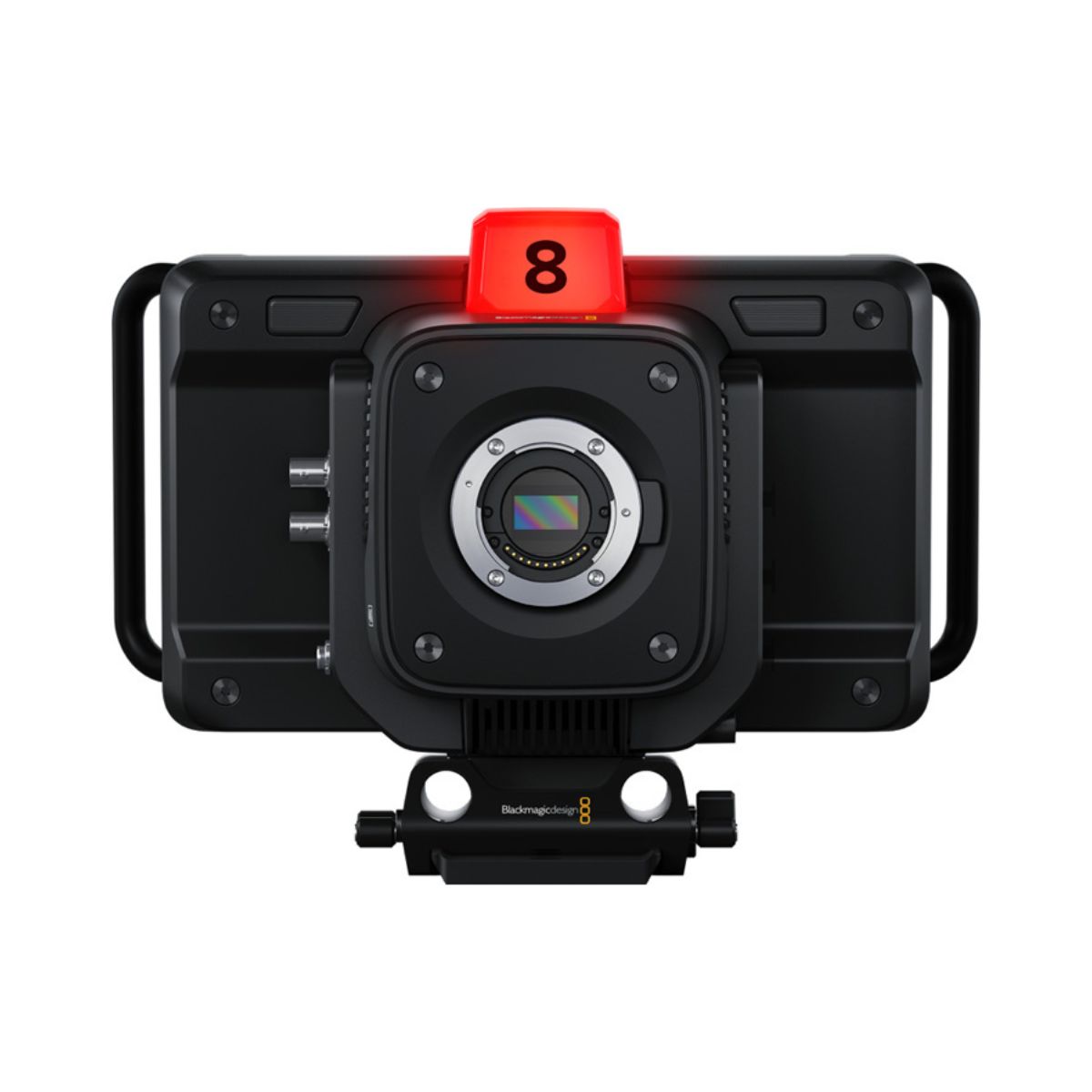

The Blackmagic Studio Camera 4K Plus G2 has the same features as large studio cameras, miniaturized into a single compact and portable design. Plus with digital film camera dynamic range and color science, the cameras can handle extremely difficult lighting conditions while producing cinematic looking images. The sensor features an ISO up to 25,600 so you can create amazing images even in dimly lit venues. It even works under moonlight! Advanced features include tally, camera control, built-in color corrector, Blackmagic RAW recording to USB disks, and much more! You can even add a focus and zoom demand for lens control!
Camera Features
|
Effective Sensor Size |
17.78mm x 10mm (Four Thirds) |
|
Lens Mount |
Active MFT Mount. |
|
Lens Control |
Iris, focus, and zoom on supported lenses. |
|
Dynamic Range |
13 Stops. |
|
Dual Native ISO |
0dB and 18dB gain. |
|
Sensitivity at 0dB Gain |
f11 with 2160p59.94. f12 with 2160p50. at 2,000 lux with 89.9% reflectance. |
|
Signal to Noise Ratio |
63dB for 2160p. |
|
Shooting Resolutions |
3840 x 2160 (Ultra HD) up to 60 fps. |
|
Frame Rates |
23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 frames per second. Off-speed frame rates up to 60 fps in Ultra HD. |
|
Focus |
Auto-focus available using compatible lenses. |
|
Screen Dimensions |
7 inch 1920 x 1200 |
|
Screen Type |
LCD capacitive touchscreen. |
|
Screen Brightness |
600 nits |
|
Controls |
Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness, contrast and peaking dials. |
|
Mounting Options |
2 x 1/4 inch tripod mounts. 1 x 3/8 inch tripod mount. |
Audio
|
Microphone |
Integrated stereo microphone. |
|
Built-in Speaker |
1 x mono speaker. |
Media
|
Media |
2 x USB-C 3.1 Gen 1 expansion ports for external media for recording Blackmagic RAW. |
|
Media Format |
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems. |
Connections
|
SDI Video Inputs |
1 |
|
SDI Video Outputs |
1 |
|
SDI Rates |
1.5G, 3G, 6G, 12G. |
|
HDMI 2.0 Video Outputs |
1 |
|
Analog Audio Input |
1 x 3.5mm Stereo Input. Can also be used for Timecode input. |
|
Analog Audio Output |
1 x 3.5mm TRRS mini jack for headphones with mic. |
|
Reference Input |
Program SDI Input on camera. |
|
SDI Audio Output |
2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI. 2 talkback channels on 15 and 16 |
|
Remote Control |
Remote camera control over SDI, HDMI, or USB Ethernet. |
|
Computer Interface |
2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus/zoom demand connection. Software updates using USB‑C Port A. |
