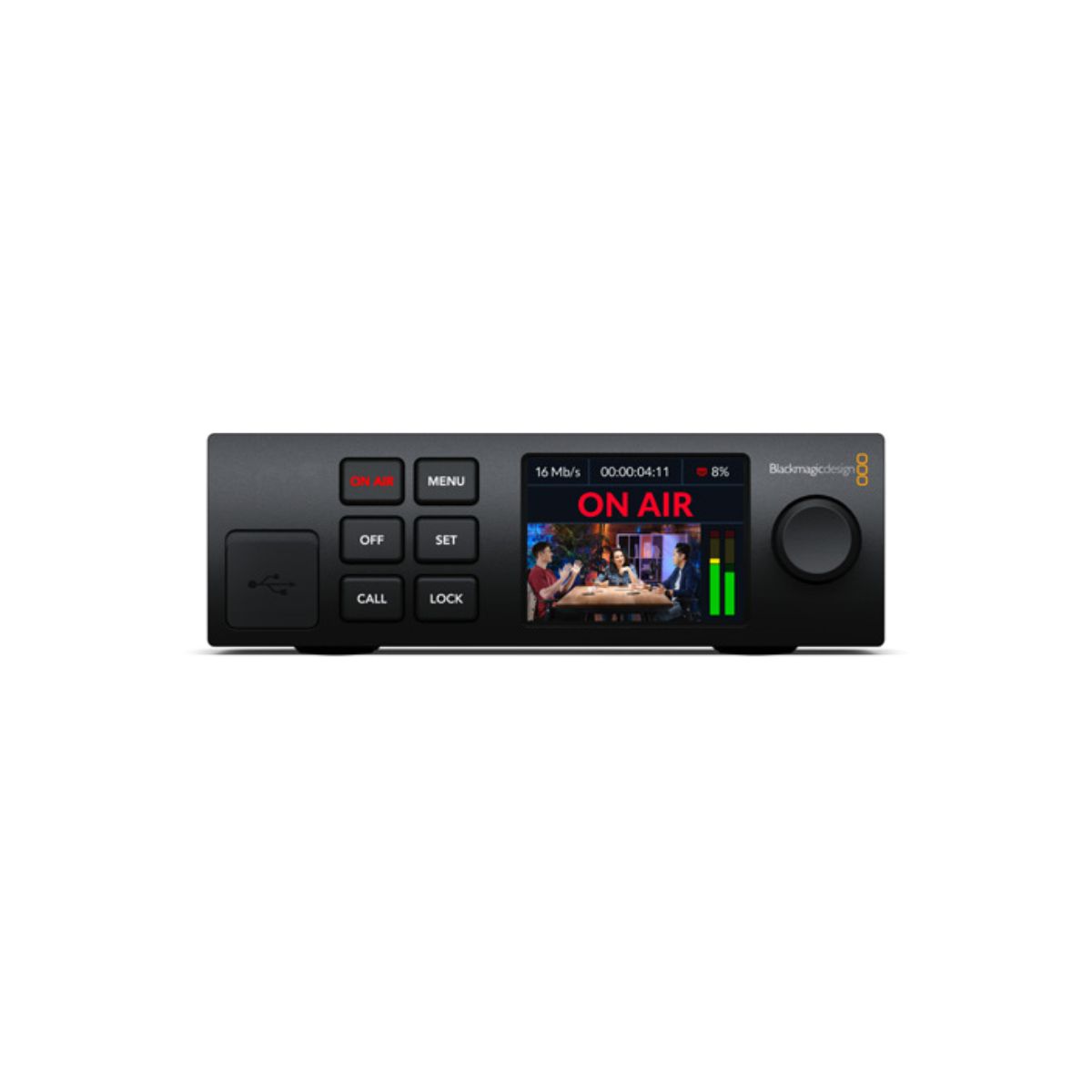

Blackmagic Streaming Encoder HD is powerful self-contained streaming processor with H.264 streaming in 720p, 1080i and 1080p HD via SRT or RTMP protocols. Stream directly to services such as YouTube, Facebook, X and more. Plus you can stream to the internet using Ethernet or connect a 5G or 4G phone to use mobile data. Includes USB webcam, standards converted 12G-SDI input and streaming monitoring output.

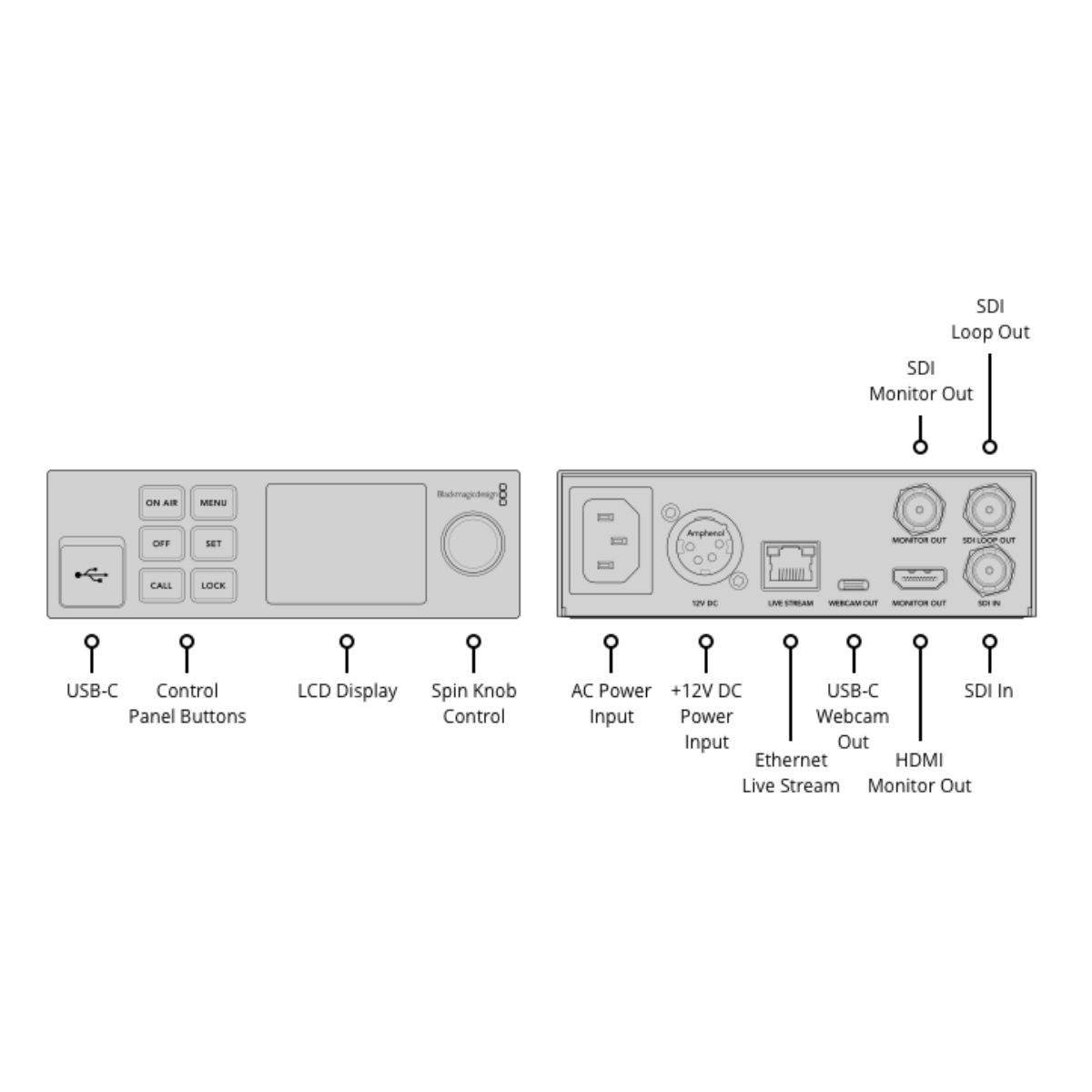

Connections
|
SDI Video Inputs |
1 |
|
SDI Loop Outputs |
1 |
|
SDI Monitor Outputs |
1 |
|
SDI Rates |
1.5G, 3G, 6G, 12G |
|
HDMI Monitor Outputs |
1 |
|
SDI Audio Inputs |
16 channels embedded audio. |
Standards
|
HD Video Input Standards |
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, |
|
Ultra HD Video Input Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
|
SDI Compliance |
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084 and SMPTE 2108‑1. |
|
Video Input Color Space |
Rec. 709, Rec. 2020 |
|
3G SDI |
Auto detects SMPTE level A or B on SDI input. |
|
SDI and HDMI Monitor Out Video Standards |
1080p50, 1080p59.94, 1080p60 |
