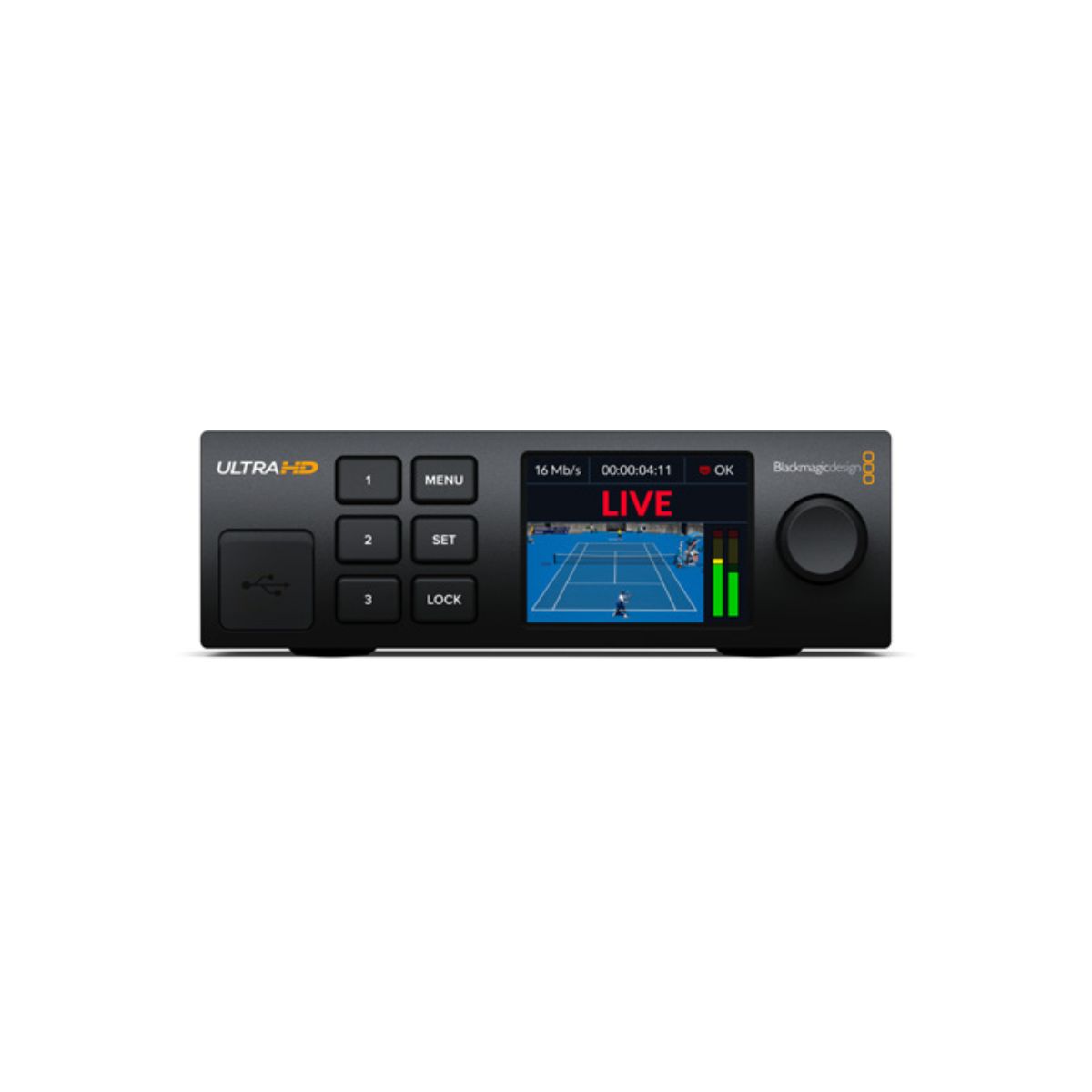

Blackmagic Streaming Decoder 4K is a professional streaming decoder that lets you receive an H.264 or H.265 stream from Blackmagic Streaming Encoder, ATEM switcher or Blackmagic camera and convert it back to SDI and HDMI video. Includes Blackmagic Cloud streaming and 12G-SDI reference input that lets you connect SDI tally, camera control and talkback back to the encoder.
Standards
|
HD Video Input Standards |
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
|
Ultra HD Video Input Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
|
SDI Compliance |
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084 and SMPTE 2108‑1. |
|
Video Input Color Space |
Rec. 709, Rec. 2020 |
|
3G SDI |
Auto detects SMPTE level A or B on SDI input. |
|
HDMI HD Video Standards |
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
|
HDMI Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
|
HDMI 4K Video Standards |
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI |
|
HDMI Color Precision |
4:2:2 |
|
HDMI Color Space |
Video Streaming Standards |
|
Video Streaming Standards |
720p25, 720p30, 720p50, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
|
Video Output Conversion |
12G-SDI Out and 4K HDMI Out can follow the streaming standard or be user configured to convert to any of the following standards: 720p25, 720p30, 720p50, 720p60, |
|
HDR Metadata Support |
Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084. |
Control
|
Control Panel |
Built-in control panel including 6 buttons, spin knob control and 2.2-inch color display. |
|
Device Control |
Front panel, USB‑C or Ethernet. |
|
External Control |
Supports remote camera control, color corrector, tally, and talkback. REST API over Ethernet for external control via HTTP when used with REST client applications. |

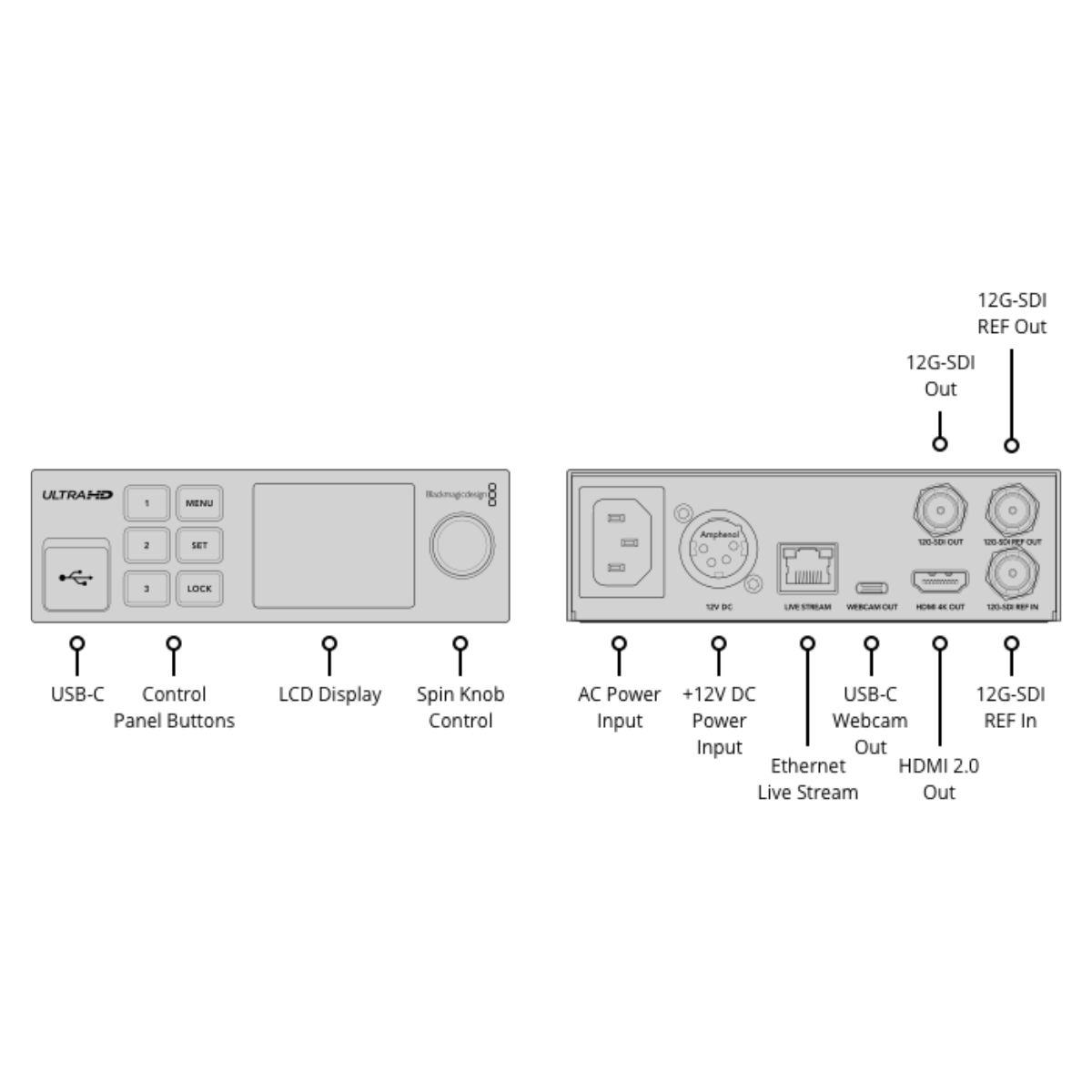

Connections
|
SDI Reference Inputs |
1 |
|
SDI Video Outputs |
1 |
|
SDI Reference Outputs |
1 |
|
SDI Rates |
1.5G, 3G, 6G, 12G |
|
HDMI 2.0 Video Outputs |
1 |
|
Frame Rate and Format Converters |
On 12G-SDI Out and 4K HDMI Out. |
