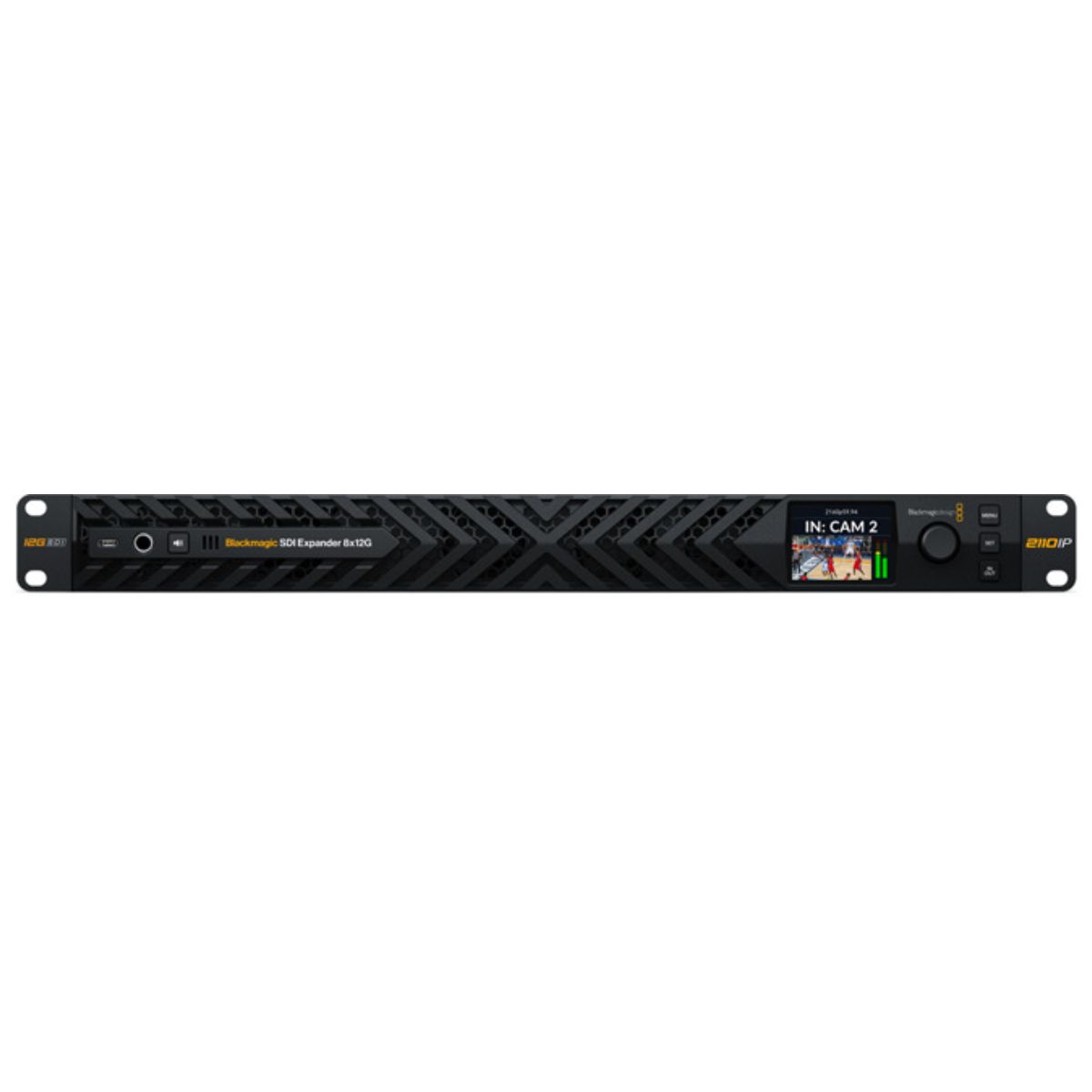

Blackmagic SDI Expander 8x12G converts in 2 directions at the same time! It converts 8 independent channels of 12G-SDI to SMPTE-2110, while simultaneously converting a separate set of 8 channels of SMPTE-2110 back to 12G-SDI. That's 16 channels of conversion in a single rack unit! The SMPTE-2110 connections use two 100G Ethernet ports for full SMPTE-2022-7 redundancy. There is also a separate NMOS control Ethernet port and dual redundant AC power supplies for reliable broadcast operation.
Video Standards
|
SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
|
HD Video Standards |
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 |
|
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
|
SMPTE Compliance |
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2022-7, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084, SMPTE 2108‑1, SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40. |
|
SDI Color Precision |
10-bit 4:2:2 YUV |
|
Color Space |
Rec. 790, Rec. 2020. |
|
SDI Auto Switching |
Automatically detects HD and Ultra HD. Level A and B are automatically detected on 3G-SDI input and user selectable on 3G‑SDI output. |

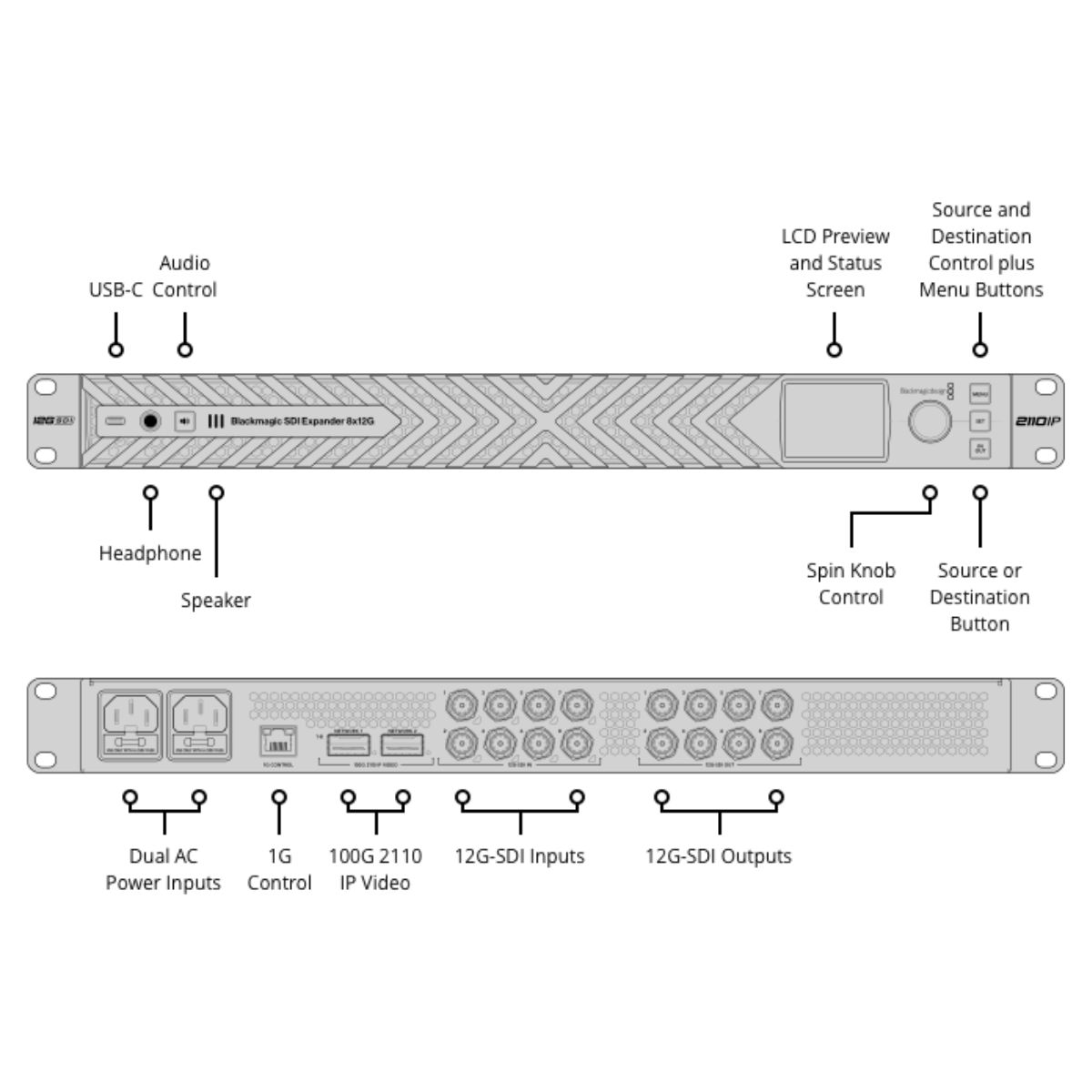

Connections
|
100G 2110 IP Networks |
2 x 100G QSFP28 connections. Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks. |
|
Senders and Receivers per 100G Pair |
8 x Ultra HD or HD. |
|
1G Control Network |
1 x 1G RJ45 for NMOS control, configuration and firmware updates. |
|
SDI Video Inputs |
8 |
|
SDI Video Outputs |
8 |
|
SDI Rates |
1.5G, 3G, 6G, 12G. |
|
SDI Audio Inputs |
16 Ch embedded audio on SDI inputs. |
|
SDI Audio Outputs |
16 Ch embedded audio on SDI outputs. |
|
SMPTE ST 2110 IP Audio Inputs |
16 Ch embedded audio on each 2110 IP video stream over 100G Ethernet. |
|
SMPTE ST 2110 IP Audio Outputs |
16 Ch embedded audio on each 2110 IP video stream over 100G Ethernet. |
|
Analog Audio Outputs |
1 x 6.35 mm headphone jack. |
|
Power |
2 x IEC C14 power inputs. |
