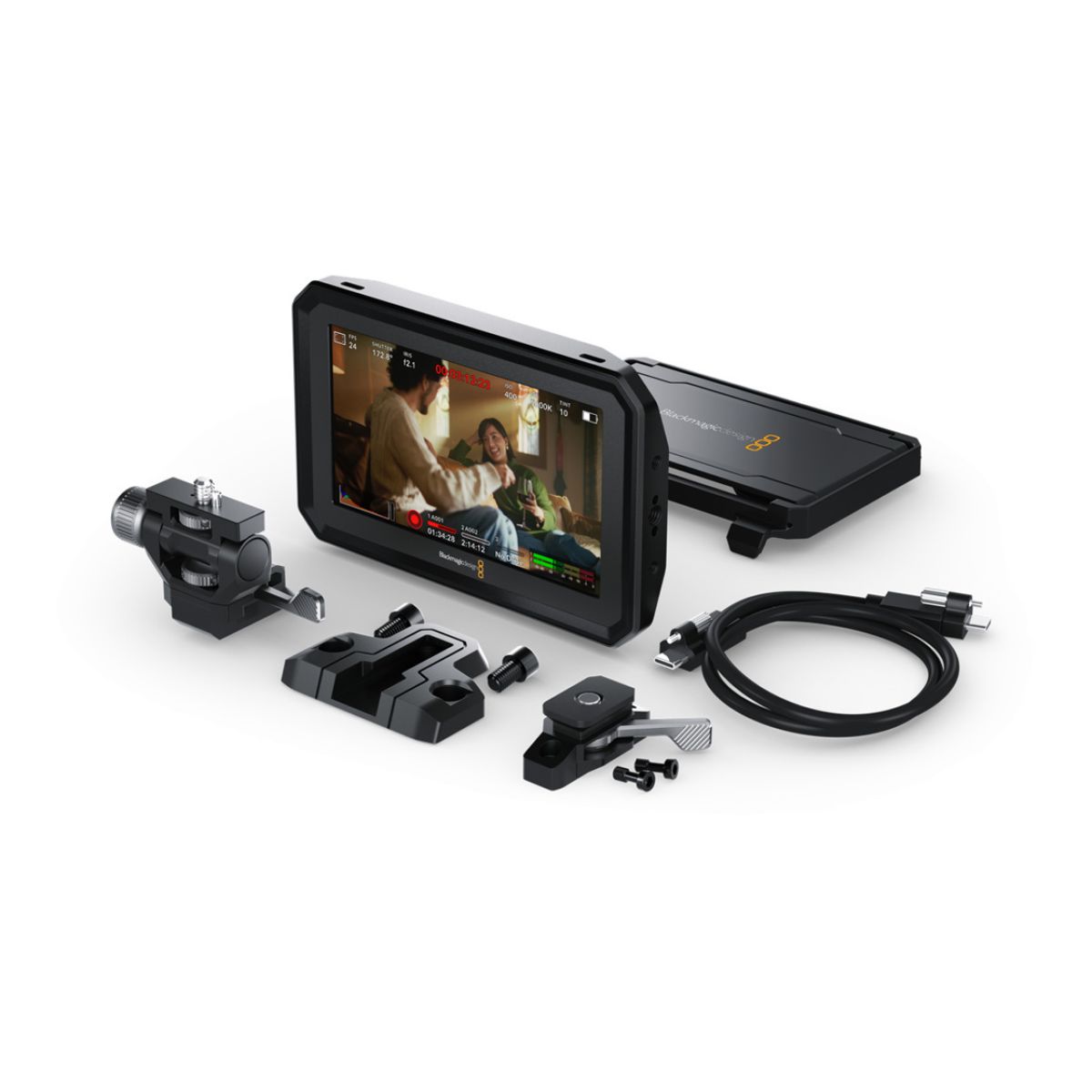

Blackmagic PYXIS Monitor is a versatile 5″ HDR touchscreen monitor with full camera control that can be mounted almost anywhere. Blackmagic PYXIS Monitor Kit contains the monitor, foldable sunshade, locking USB cable, and PYXIS Mounts to attach to Blackmagic PYXIS and Blackmagic URSA Cine cameras. The design of the PYXIS Mounts with a dovetail means the PYXIS Monitor can be quickly attached and removed from the camera. The mount makes it simple to position the monitor where customers need it without requiring tools to loosen bolts.
|
Display Size |
5 inch. |
|
Display Resolution |
Full 1920 x 1080. |
|
Display Type |
LCD capacitive touchscreen. |
|
Display Brightness |
1500 nits. |
|
Frame Rates |
Up to 60fps. |
|
Tally |
Rear-facing LED tally light. |
|
Accelerometer |
Automatically rotates the image when the monitor is mounted upside down. |
Mounting
Mounting Points
1 x 1/4-20 bottom mounting point with ARRI locating pin pattern.
2 x M4 bottom mounting points.
1 x 1/4-20 side mounting point with ARRI locating pin pattern.
2 x M4 side mounting points.
Control
|
On-Screen Controls |
Tap the screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate, and camera menus. |
|
Button Controls |
Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions. |
|
Function Button Presets |
FPS: Preset Value Iris: Preset Value WB: Preset Value ISO: Preset Value Shutter: Preset Value |
|
Function Button Toggle |
Clean Feed Status Text Display LUT Frame Guides Focus Assist False Color Zebra Grid Safe Area Guide Off Speed Rec Focus Zoom Focus Record Auto White Balance Color Bars Playback False Color + Zebra OIS Stream Still |
