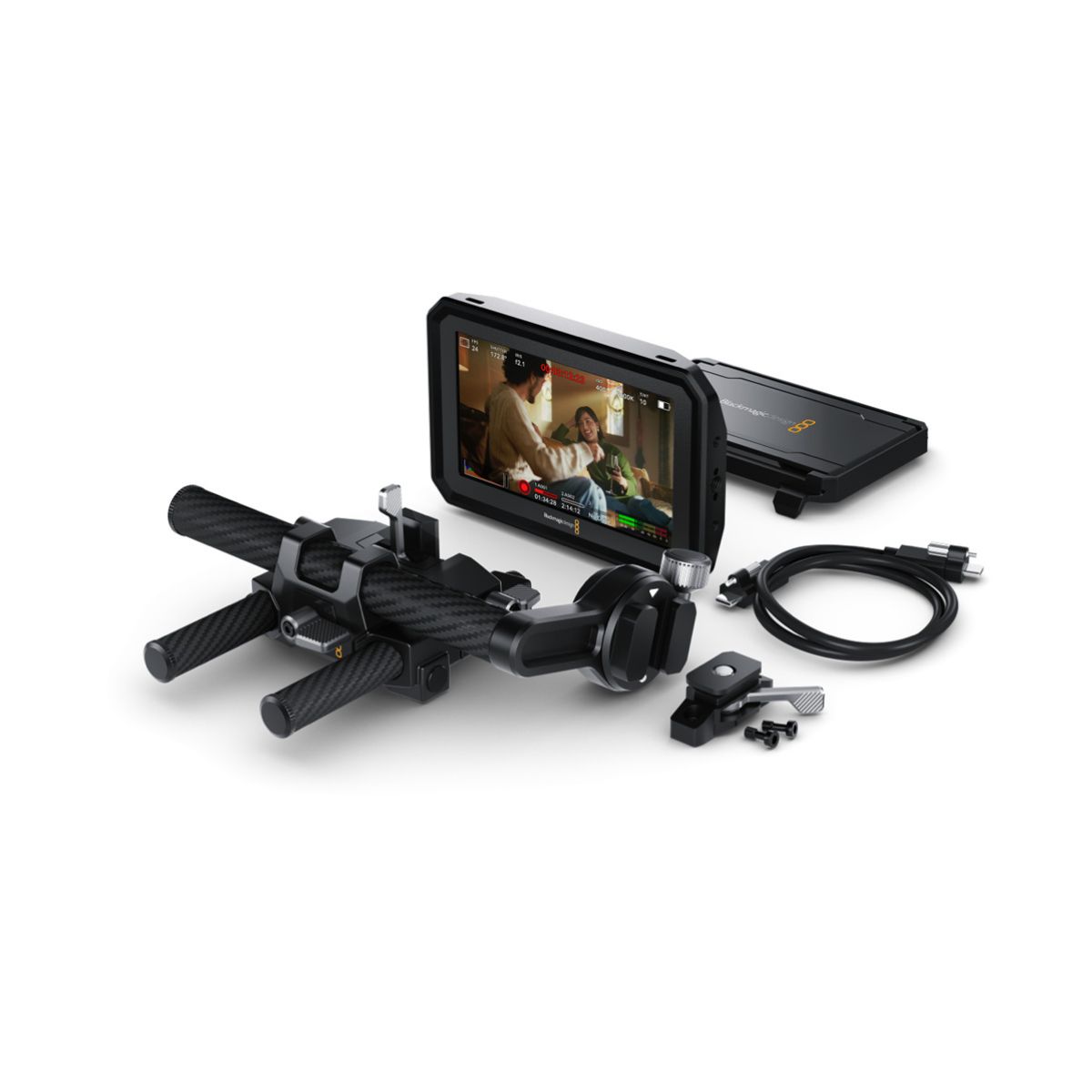

Blackmagic PYXIS Monitor is a versatile 5″ HDR touchscreen monitor with full camera control that can be mounted almost anywhere. Blackmagic PYXIS Monitor EVF Kit contains the monitor, foldable sunshade, locking USB cable, PYXIS Mounts and URSA Cine EVF mounts to attach the monitor to Blackmagic PYXIS and Blackmagic URSA Cine cameras. The Blackmagic PYXIS Monitor EVF Kit includes everything needed to use the PYXIS Monitor as an electronic viewfinder.
Features
|
Display Size |
5 inch. |
|
Display Resolution |
Full 1920 x 1080. |
|
Display Type |
LCD capacitive touchscreen. |
|
Display Brightness |
1500 nits. |
|
Frame Rates |
Up to 60fps. |
|
Tally |
Rear-facing LED tally light. |
|
Accelerometer |
Automatically rotates the image when the monitor is mounted upside down. |
Control
|
On-Screen Controls |
Tap the screen to control Monitor Overlays, Frame Rate, Shutter, Iris, Timecode, ISO, White Balance, Tint, Power, Record Start/Stop, Media, Audio, Focus Zoom, Digital Slate, and camera menus. |
|
Button Controls |
Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions. |
|
Function Button Presets |
FPS: Preset Value Iris: Preset Value WB: Preset Value ISO: Preset Value Shutter: Preset Value |
|
Function Button Toggle |
Function Button Toggle Clean Feed Status Text Display LUT Frame Guides Focus Assist False Color Zebra Grid Safe Area Guide Off Speed Rec Focus Zoom Focus Record Auto White Balance Color Bars Playback False Color + Zebra OIS Stream Still |
