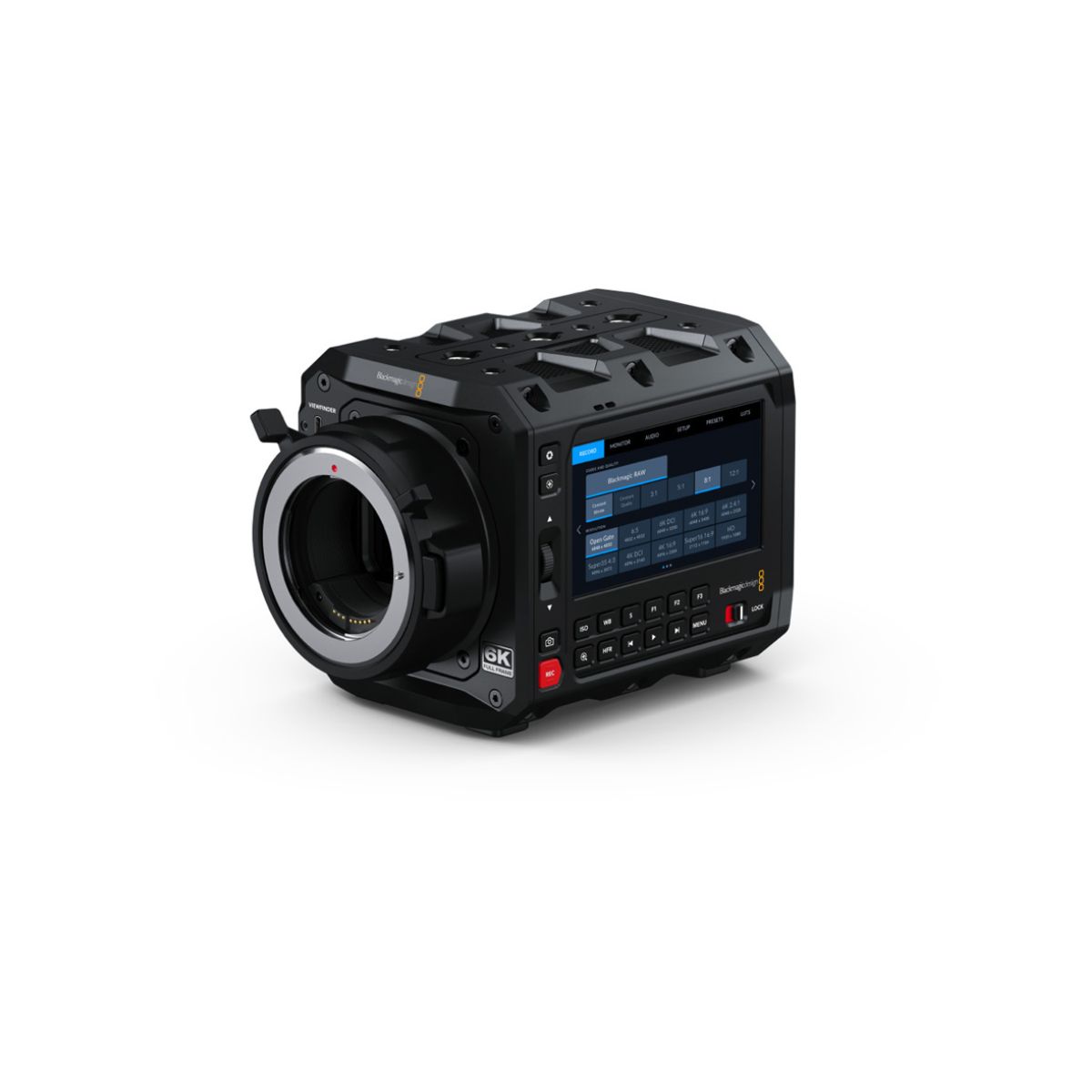

Blackmagic PYXIS 6K EF is an advanced digital film camera with an incredibly versatile design that lets you build the perfect camera rig for your production. This new model features a 6048 x 4032 full-frame HDR sensor with a built-in optical low pass filter, dual native ISO, dual CFexpress media slots, all in a customizable body with flexible mounting options and side plates. Blackmagic PYXIS 6K EF features a fixed locking EF mount that works with Canon-compatible photo and cine lenses
Camera Features
|
Effective Sensor Size |
36mm x 24mm (Full Frame) |
|
Pixel Pitch |
5.94 microns |
|
Lens Mount |
Active, locking EF lens mount. |
|
Lens Control |
Iris and focus on supported lenses. |
|
Dynamic Range |
13 Stops. |
|
Dual Native ISO |
400 and 3200 |
|
Screen Dimensions |
4” 1920 x 1080. |
|
Shooting Resolutions |
6048 x 4032 (Open Gate 3:2) up to 36 fps 4832 x 4032 (Anamorphic 6:5) up to 36 fps 6048 x 3408 (6K 16:9) up to 46 fps 6048 x 3200 (6K DCI 17:9) up to 48 fps 6048 x 2520 (6K 2.4:1) up to 60 fps 4096 x 3072 (Super 35 4:3) up to 50 fps 4096 x 2304 (4K 16:9) up to 60 fps 4096 x 2160 (4K DCI 17:9) up to 60 fps 2112 x 1184 (Super 16 16:9) up to 100 fps 1920 x 1080 (1080 HD 16:9) up to 120 fps |
|
Frame Rates |
Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates up to 60 fps in 6K 2.4:1 and 4K DCI 17:9, 100 fps in Super 16 16:9 and 120 fps in 1080HD. |
|
Focus |
Autofocus is available using compatible EF-Mount lenses in single shot autofocus. Performance of continuous autofocus, object tracking autofocus and face tracking autofocus modes may vary depending on lens used. |
|
Metadata Support |
Automatically populated lens data from electronic EF lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files. |
|
Controls |
Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys. |
|
Timecode Clock |
Highly accurate timecode clock. Less than 1 frame drift every 8 hours. |
Audio
|
Microphone |
Integrated stereo microphone. |
|
Built in Speaker |
1 x mono speaker. |
Media
|
Media |
2 x CFexpress Type B card slot, 1 x 5 Gbps USB-C port for external media for Blackmagic RAW and H.264 Proxy Recording. |
|
Media Format |
Can format media to ExFAT (Windows/Mac)or HFS+ (Mac) file systems. |
Control
External Control
Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles.
iPad control, Bluetooth control, USB PTP camera control. External control of some camera settings, focus, iris and zoom with compatible lenses. Camera Control REST API over Ethernet
Connections
|
Total Video Inputs |
None |
|
Total Video Outputs |
1 x 12G-SDI up to 2160p60 1 x Viewfinder USB-C with power, |
|
Analog Audio Inputs |
1 x mini XLR analog audio in, switchable between 1 x 3.5mm Stereo Input. |
|
Analog Audio Outputs |
1 x 3.5mm headphone jack. |
|
Reference Inputs |
Tri-Sync/Black Burst and Timecode. |
|
Computer Interface |
USB Type-C for external drive recording, PTP camera control and software updates. |
|
Ethernet |
1 x 1Gb/s RJ‑45 connector supporting10/100/1000 BASE-T. |
