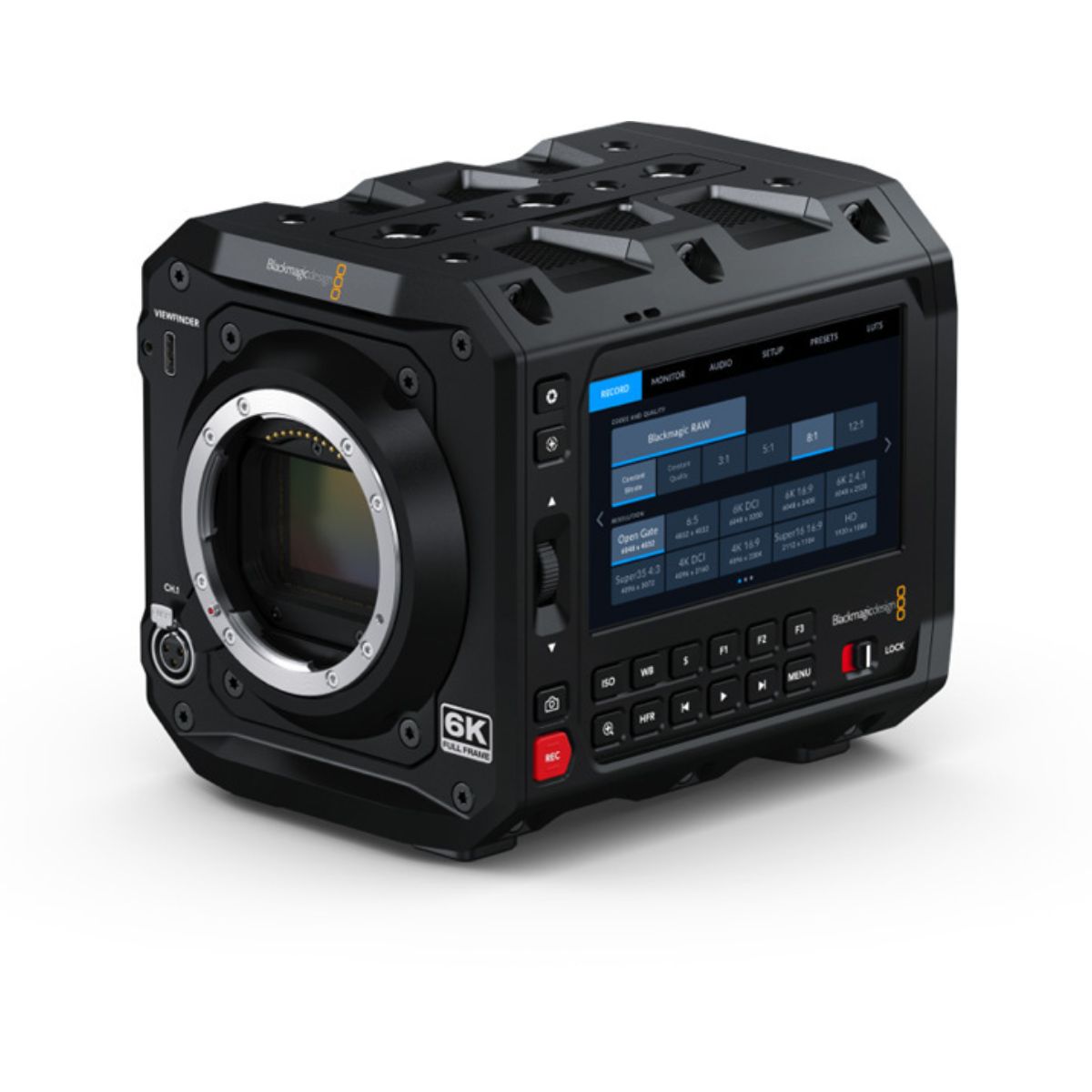

Blackmagic PYXIS 6K L-Mount is an advanced digital film camera with an incredibly versatile design that lets you build the perfect camera rig for your production. This new model features a 6048 x 4032 full frame HDR sensor with built in optical low pass filter, dual native ISO, dual CFexpress media slots, all in a customizable body with flexible mounting options and side plates. Blackmagic PYXIS 6K L-Mount features a fixed L-Mount that works with the latest full frame lenses and a wide range of lens adapters.
Camera Features
|
Effective Sensor Size |
36mm x 24mm (Full Frame) |
|
Pixel Pitch |
5.94 microns |
|
Lens Mount |
Active L-Mount. |
|
Lens Control |
Iris and focus on supported lenses. |
|
Dynamic Range |
13 Stops. |
|
Dual Native ISO |
400 and 3200 |
|
Focus |
Auto focus available using compatible lenses. |
|
Shooting Resolutions |
6048 x 4032 (Open Gate 3:2) up to 36 fps 4832 x 4032 (Anamorphic 6:5) up to 36 fps 6048 x 3408 (6K 16:9) up to 46 fps 6048 x 3200 (6K DCI 17:9) up to 48 fps 6048 x 2520 (6K 2.4:1) up to 60 fps 4096 x 3072 (Super 35 4:3) up to 50 fps 4096 x 2304 (4K 16:9) up to 60 fps 4096 x 2160 (4K DCI 17:9) up to 60 fps 2112 x 1184 (Super 16 16:9) up to 100 fps 1920 x 1080 (1080 HD 16:9) up to 120 fps |
|
Frame Rates |
Maximum sensor frame rate dependent on resolution and codec selected. Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates up to 60 fps in 6K 2.4:1 and 4K DCI 17:9, 100 fps in Super 16 16:9 and 120 fps in 1080HD. |
|
Iris Control |
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses. |
|
Metadata Support |
Automatically populated lens data from electronic L-Mount lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files. |
|
Controls |
Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys. |
|
Timecode Clock |
Highly accurate timecode clock. Less than 1 frame drift every 8 hours. |
Audio
|
Microphone |
Integrated stereo microphone. |
|
Built in Speaker |
1 x mono speaker. |
Media
|
Media |
2 x CFexpress Type B card slot, 1 x 5 Gbps USB-C port for external media for Blackmagic RAW and H.264 Proxy Recording. |
|
Media Format |
Can format media to ExFAT (Windows/Mac)or HFS+ (Mac) file systems. |
Storage Features
|
Storage Type |
2 x CFexpress Type B 1 x high speed USB-C expansion port for external media. |
|
Recording Formats |
Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at 6048 x 4032, 4832 x 4032, 6048 x 3408, 6048 x 3200, 6048 x 2520, 4096 x 3072, 4096 x 2304, 4096 x 2160, 2112 x 1184 and 1920 x 1080 with film, extended video, video dynamic range or custom 3D LUT embedded in metadata. Supports recording optional portrait mode metadata for all resolutions in Blackmagic RAW and H.264 Proxies. |
|
Recording Modes |
Standard record mode. Pre record mode with assignable pre record duration: 5 sec, 10 sec, 20 sec, 30 sec, 1 min, 2 min, 5 min, 10 min. |
|
Storage Rates |
Storage rates based on 30 frames per second. |
Connections
|
Total Video Inputs |
None |
|
Total Video Outputs |
1 x 12G-SDI up to 2160p60 1 x Viewfinder USB-C with power, |
|
Analog Audio Inputs |
1 x mini XLR analog audio in, switchable between 1 x 3.5mm Stereo Input. |
|
Analog Audio Outputs |
1 x 3.5mm headphone jack. |
|
Reference Inputs |
Tri-Sync/Black Burst and Timecode. |
|
Computer Interface |
USB Type-C for external drive recording, PTP camera control and software updates. |
|
Ethernet |
1 x 1Gb/s RJ‑45 connector supporting10/100/1000 BASE-T. |
