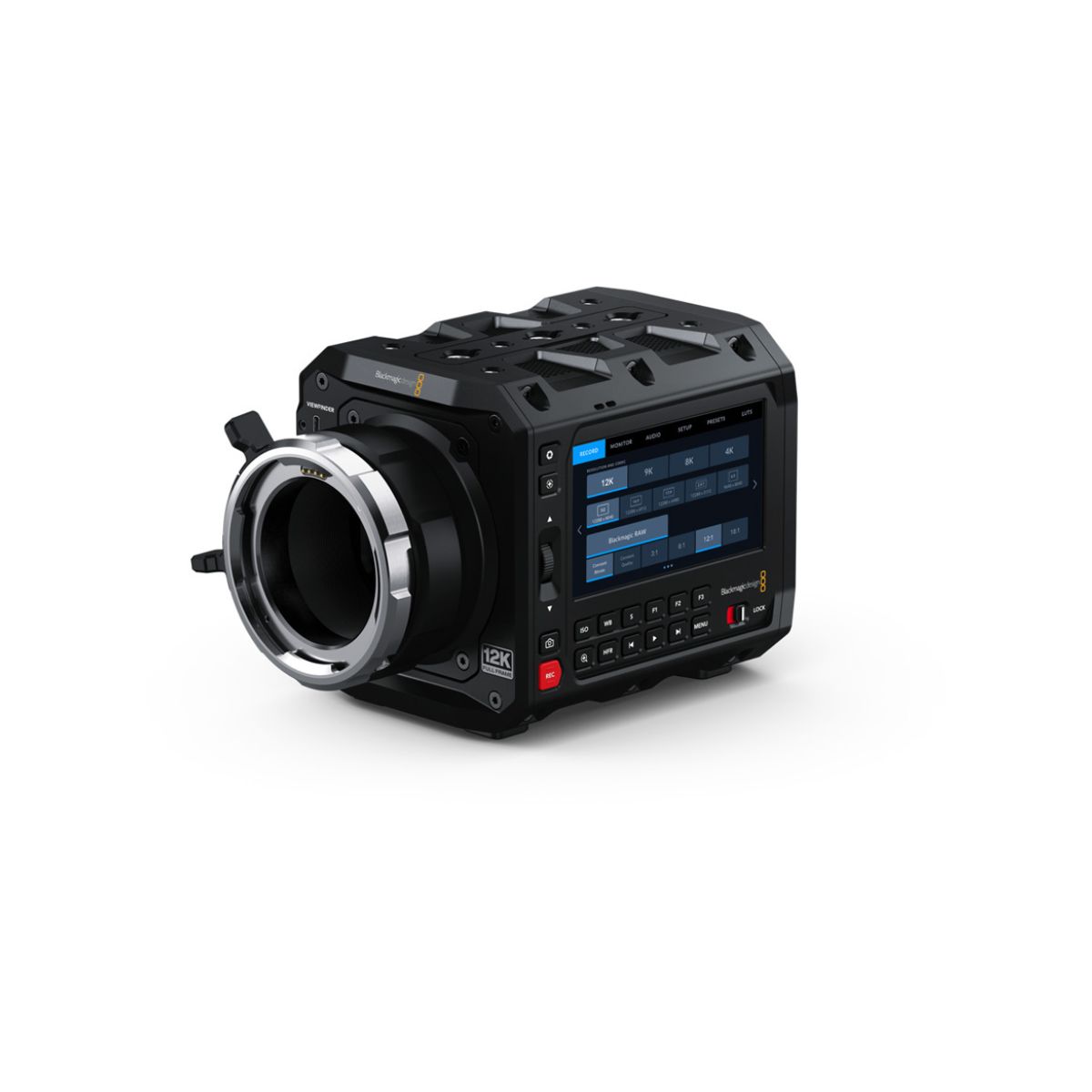

Blackmagic PYXIS 12K PL is an advanced digital film camera with an incredibly versatile design that lets you build the perfect camera rig for your production. This new model features a 12,288 x 8040 full frame RGBW sensor with built in optical low pass filter, 16 stops of dynamic range, dual CFexpress media slots, all in a customizable body with flexible mounting options and side plates. Blackmagic PYXIS 12K PL features a fixed PL mount that works with high-quality professional cinema lenses.
Camera Features
|
Effective Sensor Size |
35.64mm x 23.32mm (Large Format) |
|
Pixel Pitch |
2.9 microns |
|
Lens Mount |
PL mount with /i Technology. |
|
Lens Control |
Iris and focus on supported lenses. |
|
Dynamic Range |
16 Stops. |
|
Native ISO |
800 |
|
Focus |
Focus control is possible using compatible lenses. |
|
Shooting Resolutions |
12,288 x 8040 (12K 3:2 open gate) 9408 x 6264 (9K 3:2) 8192 x 5360 (8K 3:2 open gate) 4096 x 2680 (4K 3:2 open gate) |
|
Frame Rates |
Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected. |
|
High Frame Rates |
12K (3:2 open gate) up to 40 fps 12K (16:9) up to 45 fps 12K (17:9) up to 50 fps 12K (2.4:1) up to 60 fps 12K (6:5) up to 40 fps 9K (3:2 Super 35) up to 50 fps 9K (16:9 Super 35) up to 65 fps 9K (17:9 Super 35) up to 65 fps 9K (2.4:1 Super 35) up to 80 fps 9K (6:5 Super 35) up to 50 fps 8K/4K (3:2 open gate) up to 72 fps 8K/4K (16:9) up to 84 fps 8K/4K (17:9) up to 90 fps 8K/4K (2.4:1) up to 112 fps 8K/4K (6:5) up to 72 fps |
|
Iris Control |
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings using compatible lenses. |
|
Metadata Support |
Automatically populated lens data from electronic L-Mount lenses. Automatic recording of camera settings, motion sensor data plus slate data such as project, scene number, take and special notes. A 3D LUT can also be embedded in metadata of Blackmagic RAW files. |
|
Controls |
Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys. |
|
Timecode Clock |
Highly accurate timecode clock. Less than 1 frame drift every 8 hours. |
Audio
|
Microphone |
Integrated stereo microphone. |
|
Built in Speaker |
1 x mono speaker. |
Media
|
Media |
2 x CFexpress Type B card slot, 1 x 10 Gbps USB-C port for external media for Blackmagic RAW and H.264 Proxy Recording. |
|
Media Format |
Can format media to ExFAT (Windows/Mac)or HFS+ (Mac) file systems. |
Connections
|
Total Video Inputs |
None |
|
Total Video Outputs |
1 x 12G-SDI up to 2160p60 1 x Viewfinder USB-C with power, |
|
Analog Audio Inputs |
1 x mini XLR analog audio in, switchable between mic with phantom power support and line level (up to +14dBu). 1 x 3.5mm Stereo Input. |
|
Analog Audio Outputs |
1 x 3.5mm headphone jack. |
|
Reference Inputs |
Tri-Sync/Black Burst and Timecode. |
|
Computer Interface |
USB Type-C for external drive recording, PTP camera control and software updates. |
|
Ethernet |
1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE‑T. |
