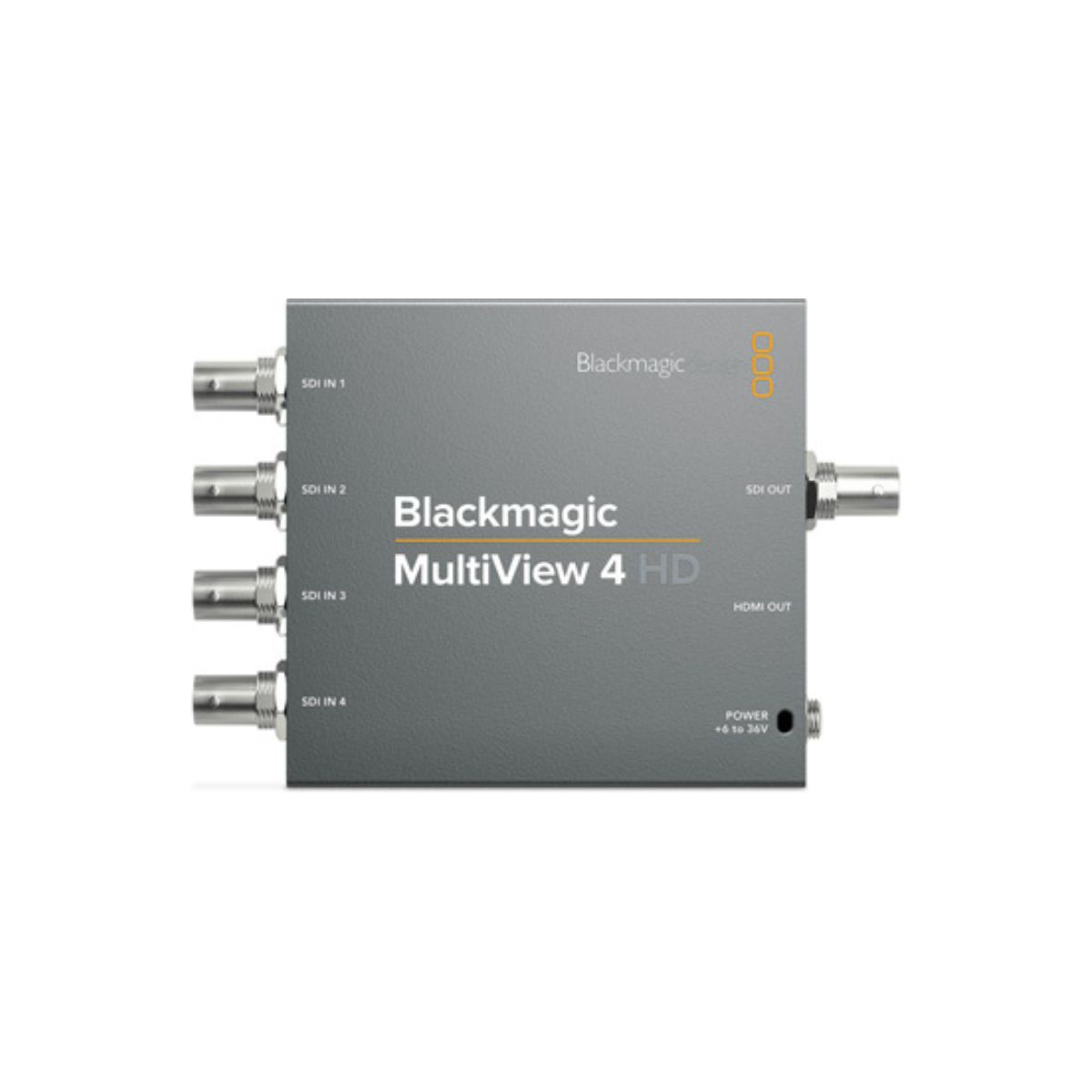

Blackmagic MultiView 4 HD is a multiviewer that lets you simultaneously monitor 4 completely independent SDI video sources on a single display! You can monitor any combination of SD and HD formats and frame rates, all at the same time. Each view can display overlays with information such as custom labels, audio meters, and more. MultiView 4 HD has both SDI and HDMI outputs for monitoring on professional SDI displays, projectors, or even big screen televisions!
Standards
|
SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
|
HD Video Standards |
HD Video Standards |
|
2K Video Standards |
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI |
|
SDI and HDMI HD Video Output Standards |
1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
|
SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M-B, ITU‑R BT.656 and ITU‑R BT.601. |
|
Audio Meters |
Each view, VU standard. |
|
Source Routing |
None |
|
SDI Video Sampling |
4:2:2 |
|
SDI Audio Sampling |
Television standard sample rate of 48kHz and 24-bit. |
|
SDI Color Precision |
10-bit 4:2:2 |
|
SDI Color Space |
YUV |
|
SDI Auto Switching |
Automatically selects between SD-SDI and HD-SDI on each input so that each input can be running a different television standard. |
|
SDI Metadata Support |
Video payload identification ancillary data as per SMPTE 352M. |

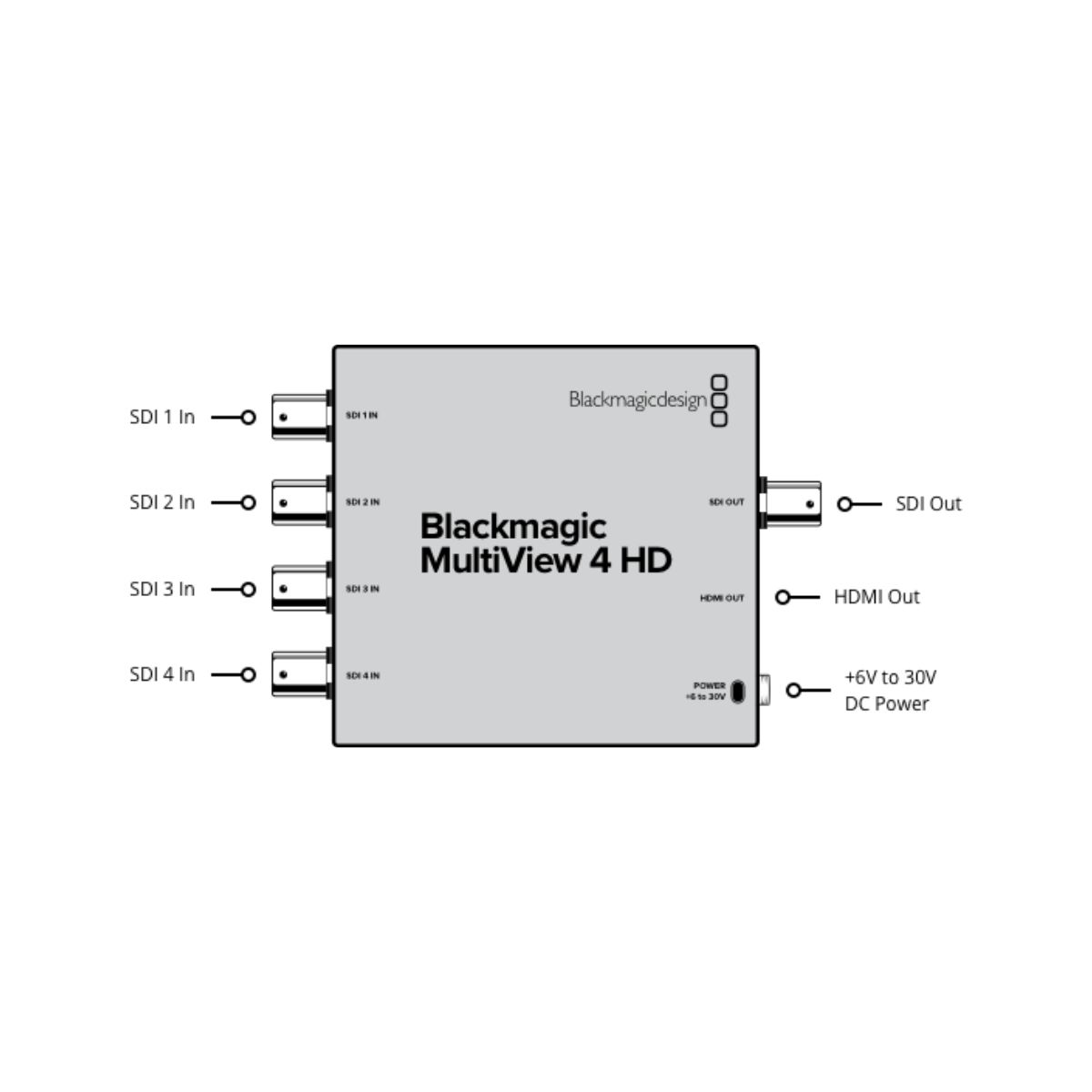

Connections
|
SDI Video Inputs |
4 x 10-bit SD-SDI and HD-SDI. |
|
SDI Video Outputs |
1 x HD-SDI. |
|
SDI Rates |
270Mb, 1.5G, 3G. |
|
SDI Video Multi View Outputs |
1 x 10-bit HD-SDI. |
|
HDMI Video Multi View Outputs |
1 x HDMI type A connector. Output supports the EDID of the monitor. |
|
SDI Reclocking |
On all SDI outputs, auto-switching between standard definition and high definition. |
