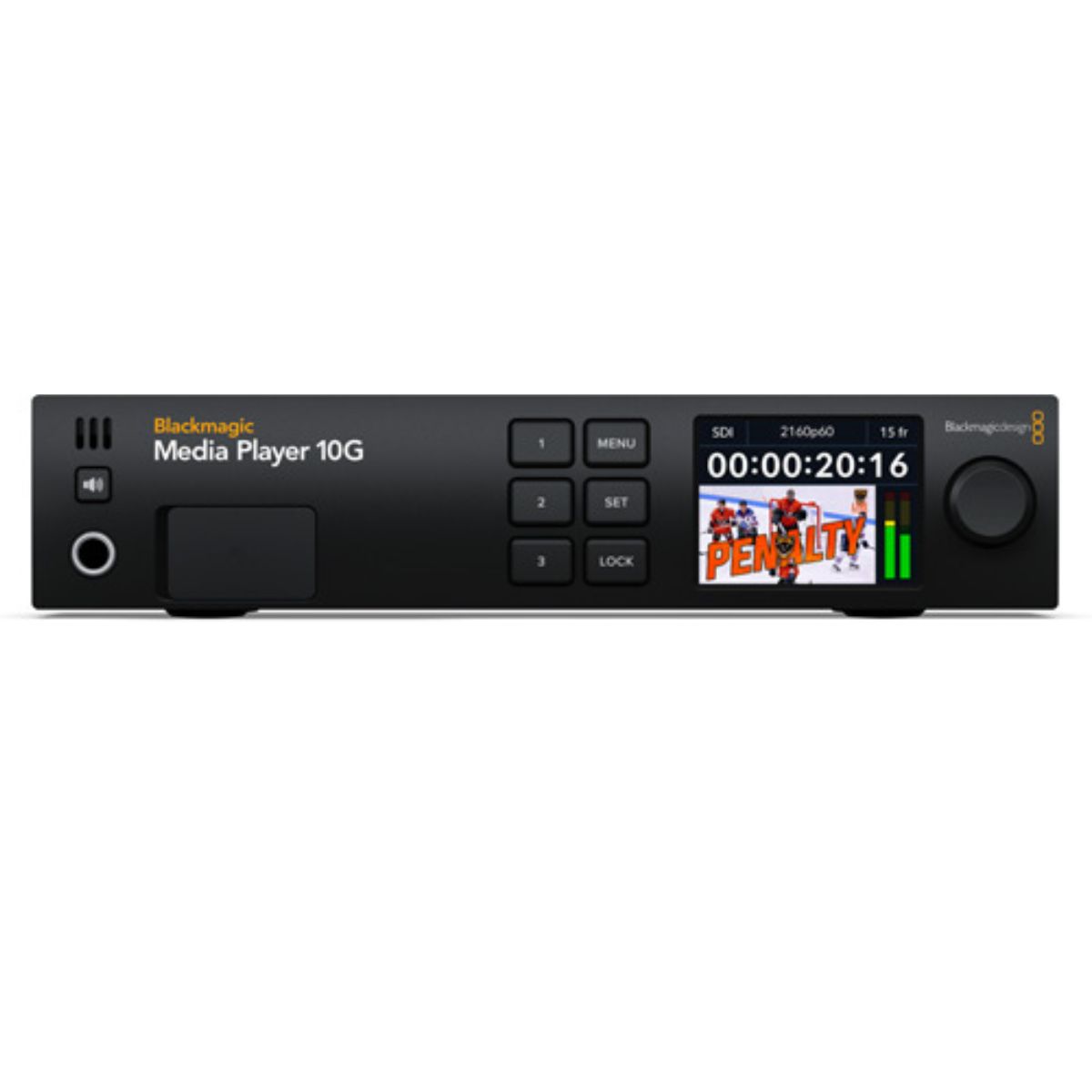

Blackmagic Media Player 10G is a powerful capture and playback solution packed with the latest broadcast technology! You get dual 12G-SDI outputs for fill and key playback, 12G-SDI capture, Extended Desktop, and 10G Ethernet that lets customers use DaVinci Resolve as a media player and replay solution for the live production and broadcast markets, all over a single Thunderbolt connection.
SDI Video Standards
|
HD Video Standards |
720p50, 720p59.94, 720p60 |
|
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
|
SDI Compliance |
SMPTE 259M, SMPTE 292M, SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, SMPTE 2084 and SMPTE ST2108-1. |
|
SDI Metadata Support |
RP 188/SMPTE 12M-2 and closed captioning. |
|
Multiple Rate Support |
SDI video connections are switchable between HD and Ultra HD |
|
SDI Audio Sampling |
Television standard sample rate of 48 kHz and 24-bit. |
|
SDI Video Sampling |
4:2:2, 4:4:4 |
|
SDI Color Precision |
8, 10, 12-bit RGB 4:4:4 in modes up to 2160p30 and8, 10-bit YUV 4:2:2 in all modes. |
|
SDI Color Space |
REC 601, REC 709 and REC 2020 |
|
HDR Support |
HDR static metadata packing, HLG and PQ transfer characteristics. |
HDMI Video Standards
|
HD Video Standards |
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 |
|
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
|
HDMI Audio Sampling |
Television standard sample rate of 48 kHz and 24-bit. |
|
HDMI Video Sampling |
4:4:4, 4:2:2 and 4:2:0 |
|
HDMI Color Precision |
8, 10 and 12-bit |
|
HDMI Color Space |
REC 601, REC 709 and REC 2020 |
|
HDR Support |
HDR static metadata packing, HLG and PQ transfer characteristics. |
|
HDR Configuration |
HDMI 2.0b supports Deep Color and HDR. Automatically configures to the connected display. |
|
Multiple Rate Support |
HDMI video connections are switchable between HD and Ultra HD. |

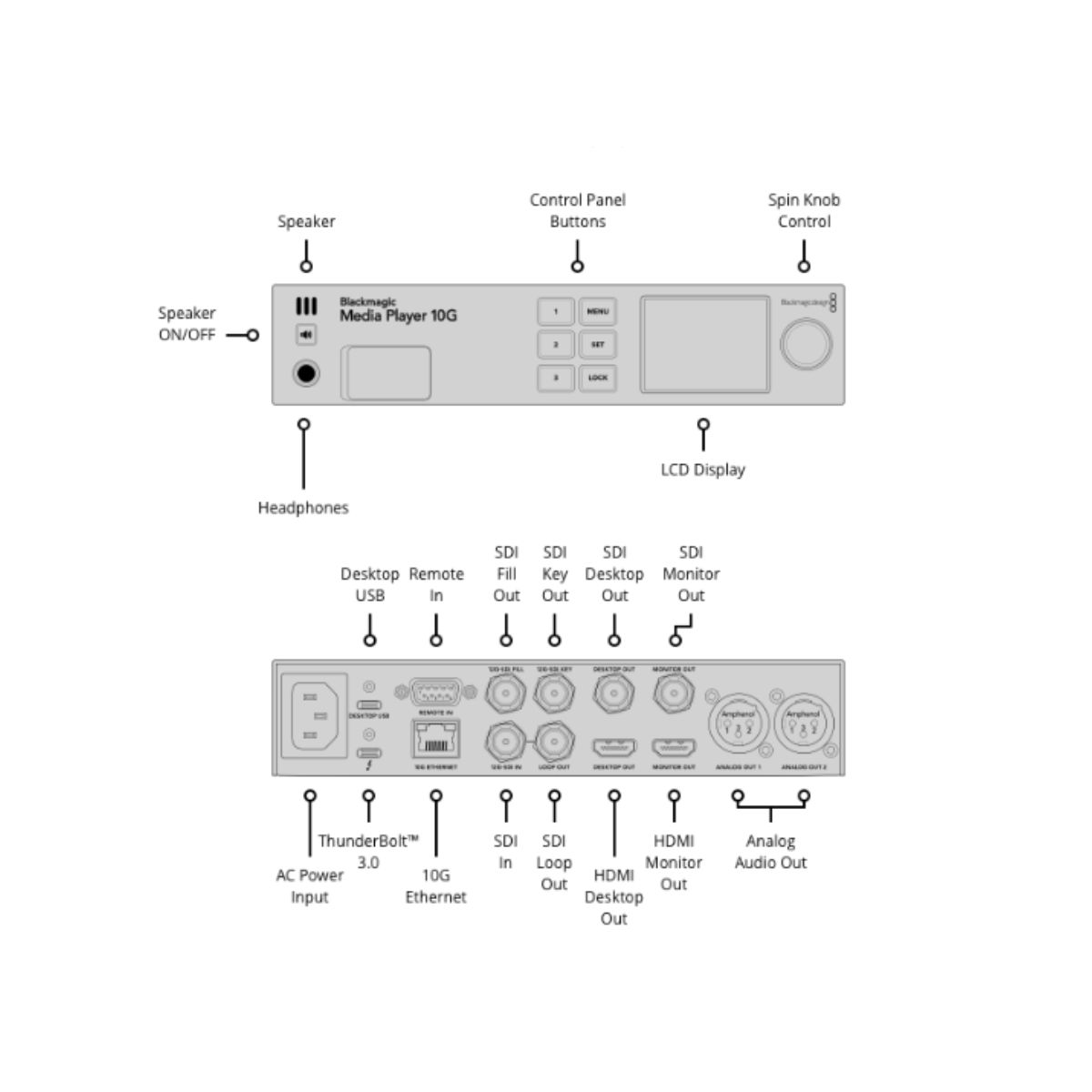

Connections
|
SDI Video Inputs |
1 |
|
SDI Fill Outputs |
1 |
|
SDI Key Outputs |
1 |
|
SDI Loop Outputs |
1 |
|
SDI Extended Desktop Outputs |
1 |
|
SDI Monitor Outputs |
1 |
|
SDI Rates |
270Mb, 1.5G, 3G, 6G, 12G. |
|
Analog Audio Outputs |
2 channels of professional balanced analog audio with 3-pin XLR connectors. 1 x 6.35 mm headphone jack. |
|
SDI Audio Inputs |
16 Channels embedded in HD and Ultra HD. |
|
SDI Audio Outputs |
16 Channels embedded in HD and Ultra HD. |
|
HDMI Audio Outputs |
8 Channels embedded in HD and Ultra HD. |
|
Device Control |
1 x Sony™ compatible RS-422 deck control input port. |
|
USB |
1 x USB‑C 3.1 Gen 1 (up to 5 Gb/s). |
|
Computer Interface |
1 x Thunderbolt™ 3 (Mac OS, Windows and Linux) 1 x USB‑C for keyboard, mouse and other USB devices |
|
Ethernet |
1 x 10Gb/s RJ‑45 connector supporting 1000/10G BASE‑T. |
