Blackmagic Cloud Dock 2 lets you share up to 2 independent 2.5 inch disks over a high speed 10G Ethernet network. Just plug in SATA HDDs and SSDs, or extreme performance U.2 disks for incredibly fast file reading and writing. You can also sync files globally using Blackmagic Cloud, plus view all storage, connection and sync activity in real time on a display connected to the HDMI monitor port. Blackmagic Cloud Dock 2 has 2 10G Ethernet ports and an Ethernet over USB-C port in a half-width, single rack unit, making it highly portable network storage that’s perfect for high-end film and television use.
Storage
|
Storage Type |
Bring your own drive. |
|
External Storage Format |
ExFAT (Windows/Mac) or HFS+ (Mac) file systems. |
Displays
|
HDMI Monitor Out Standards |
1080p50, 1080p59.94, 1080p60 |
|
Monitor Out Displays |
Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph. |
|
Status Indicator |

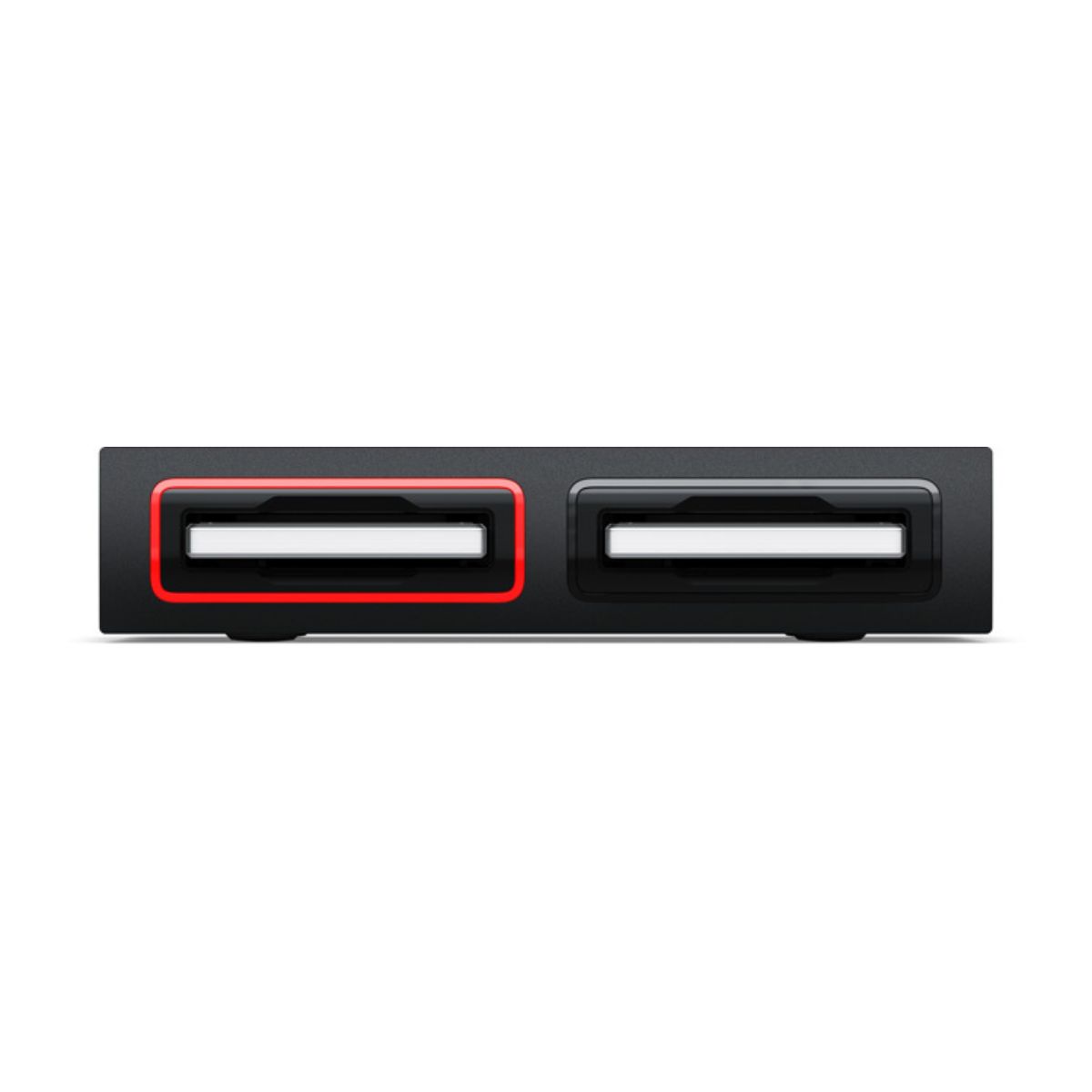

LED bezel indicator lights around SSD media slots. |
Connections
|
SSD Interface |
2 x removable and hot-swappable 2.5-inch U.2 SSD or SATA. SSD maximum height: 11 mm. |
|
10G Ethernet Ports |
2 x 10G BASE-T |
|
USB-C Port |
1 x USB 3.0 (up to 5Gb/s). Supports Ethernet Over USB |
|
HDMI Monitor Outputs |
1 |
|
Computer Interface |
USB-C or Ethernet for shared file access, configuration and software updates. |
