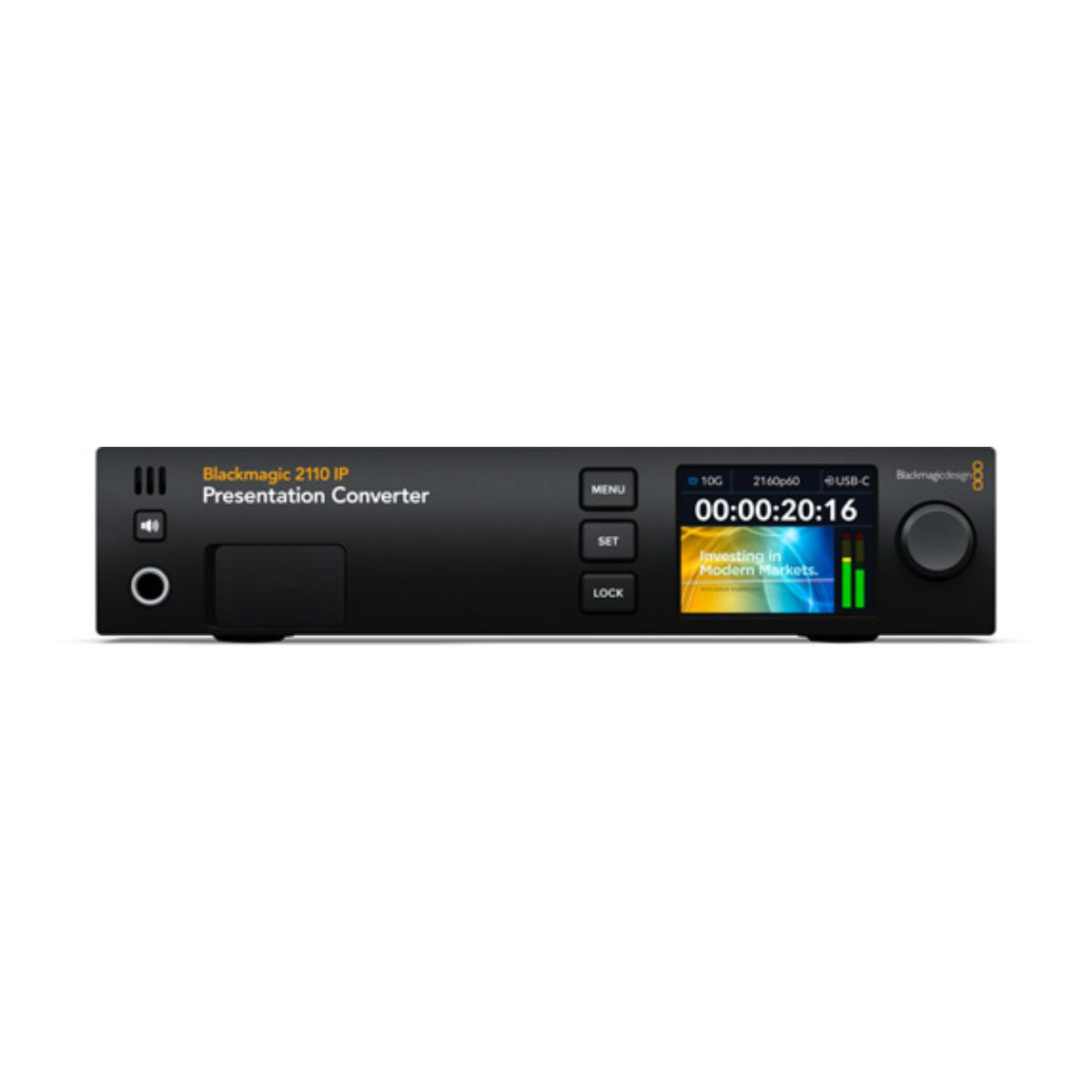

Blackmagic 2110 IP Presentation Converter is designed for speaker podiums with connections for laptops, projectors and microphones all in the one converter. Computers can connect via USB-C for both video and power, and there is an HDMI output for projectors that can be switched to the video input or the 2110 IP return feed. For audio, there are XLR microphone inputs and an XLR audio out for PA speakers. The RJ-45 10G Ethernet video connection can power the whole converter, even when charging a USB computer!
SDI Video Standards
|
HD Video Standards |
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
|
2K Video Standards |
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI |
|
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
|
4K Video Standards |
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI |
|
SDI Compliance |
SMPTE 274M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑10, SMPTE ST2108‑1, SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40. |
|
SDI Metadata Support |
RP 188/SMPTE 12M-2 and closed captioning. |
|
Multiple Rate Support |
SDI video connections are switchable between HD/2K/UHD and 4K. |
|
SDI Audio Sampling |
Television standard sample rate of 48 kHz and 24‑bit. |
|
SDI Video Sampling |
4:2:2, 4:4:4 |
|
SDI Color Precision |
8, 10, 12-bit RGB 4:4:4 in 2D modes up to 4Kp30 DCI and 8, 10-bit YUV 4:2:2 in all 2D modes. 8, 10, 12-bit RGB 4:4:4 in 3D modes up to 2Kp60 DCI and 8, 10-bit YUV 4:2:2 in all 3D modes. |
|
SDI Color Space |
REC 709 and REC 2020 |
|
HDR Support |
HDR static metadata packing, HLG and PQ transfer characteristics. |

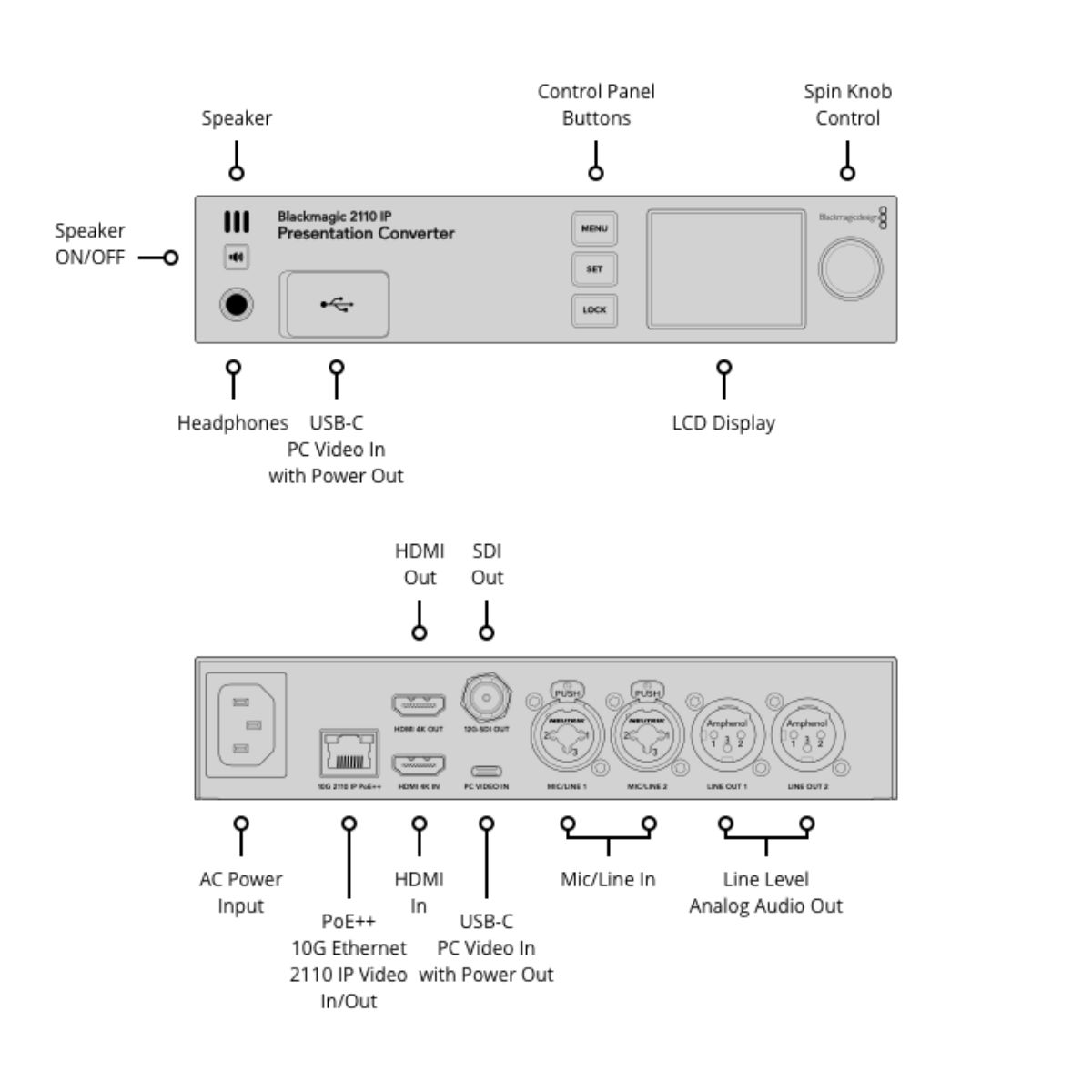

Connections
|
PC Video Inputs |
1 x front USB‑C plus 1 x rear USB‑C with 45W host charging capability. |
|
HDMI 2.0 Video Inputs |
1 |
|
HDMI 2.0 Video Outputs |
1 |
|
SDI Video Outputs |
1 |
|
SDI Rates |
270Mb, 1.5G, 3G, 6G, 12G. |
|
SMPTE ST-2110 IP Video Inputs |
1 x 10G Ethernet |
|
SMPTE ST-2110 IP Video Outputs |
1 x 10G Ethernet |
|
Analog Audio Inputs |
2 x Combination 3-pin XLR / TRS 1/4 inch Jack connectors, switchable between +24dB line and mic level with support for +48V phantom power. |
|
Analog Audio Outputs |
2 channels of professional balanced analog audio with 3-pin XLR connectors. 1 x 6.35 mm headphone jack. |
|
SDI Audio Outputs |
16 Channels embedded in SD/HD/2K/UHD/4K. |
|
HDMI Audio Inputs |
8 Channels embedded in SD/HD/UHD/4K. |
|
HDMI Audio Outputs |
8 Channels embedded in SD/HD/UHD/4K. |
|
USB |
2 x USB‑C 3.1 Gen 1 (up to 5 Gb/s). |
|
Ethernet |
1 x 10Gb/s RJ‑45 connector supporting 10/100/1000/10G BASE-T for SMPTE-2110 IP video in and out, configuration and firmware updates. |
