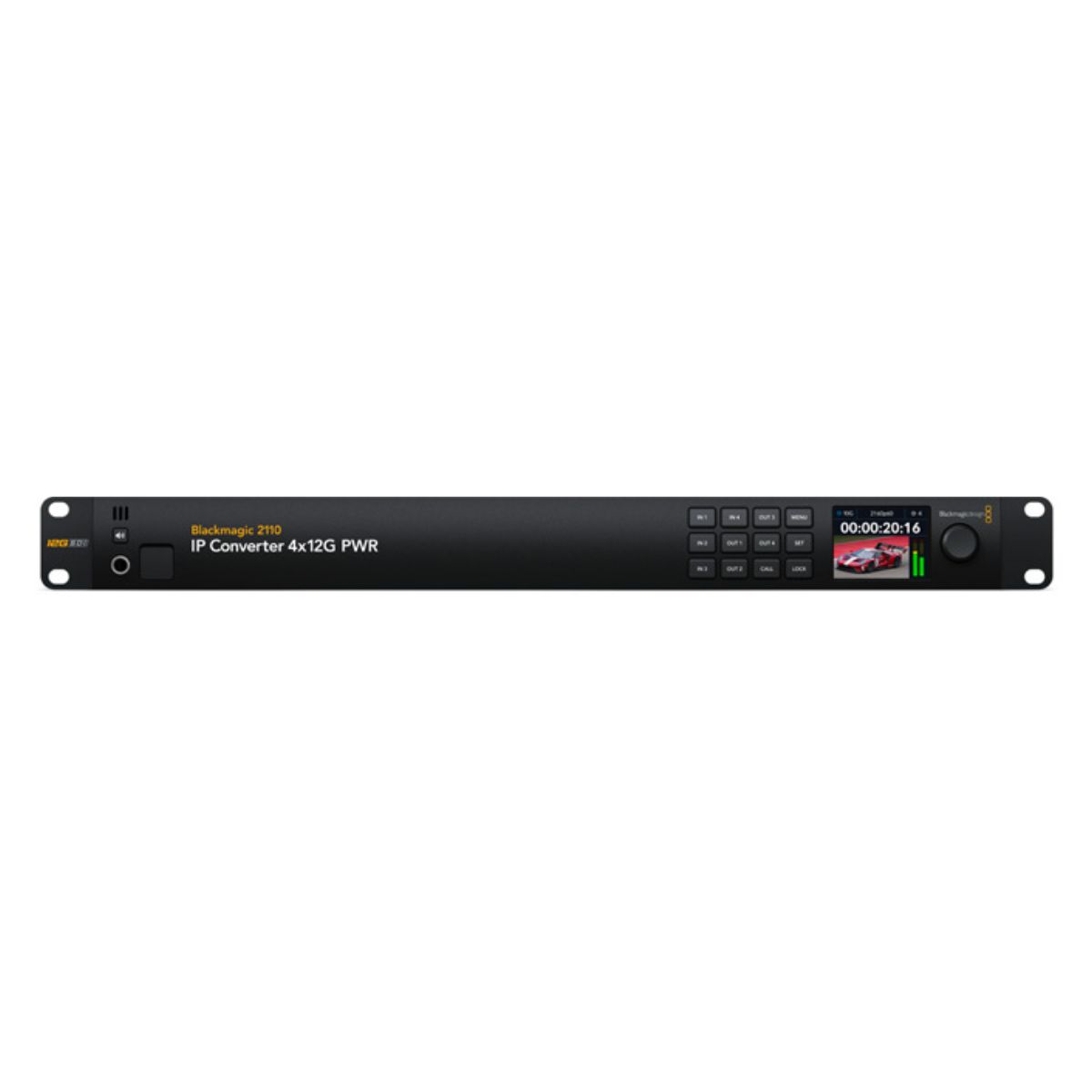

Blackmagic 2110 IP Converter 4x12G PWR lets you add SMPTE-2110 IP video to 12G-SDI broadcast equipment. It features 4 independent bidirectional 12G-SDI to SMPTE-2110 IP video converters using RJ-45 10G Ethernet connections, which can also provide power. Its 1RU design includes a control panel with an LCD and supports HD and Ultra HD standards up to 2160p60.
SDI Video Standards
|
HD Video Standards |
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 |
|
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
|
4K Video Standards |
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. |
|
SDI Compliance |
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084, SMPTE 2108‑1, SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40. |
|
SDI Video Rates |
SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI. |
|
SDI Color Precision |
4:2:2 |
|
SDI Color Space |
YUV |
|
SDI Auto Switching |
Automatically detects SD, HD, 2K DCI, Ultra HD and 4K DCI. Level A and B is automatically detected on 3G-SDI input and user selectable on 3G-SDI output. |
IP Video Compliance
|
SMPTE 2110-20 (Uncompressed Video) |
IGMP v3 |
|
SMPTE 2110-21 (Traffic Shaping) |
Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous |
|
SMPTE 2110-30 (PCM) |
Audio Conformance level: Level C |
|
SMPTE 2110-40 (Ancillary Data) |
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning, and HDR static metadata. |
|
Codec |
Blackmagic IP10 codec used when converting 12G-SDI rates to 10G 2110 IP video. |
|
Precision Time Protocol |
IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 |
|
NMOS IS-04 Discovery and Registration |
v1.3.2 Peer-to-peer via mDNS/DNS-SD |
|
NMOS IS-05 Connection Management |
v1.1.2 |
|
NMOS BCP-002-01 |
Natural Grouping |
|
NMOS BCP-004-01 |
Receiver capabilities |
Audio
Front panel audio monitor speaker with speaker control button, plus 6.35 mm headphone socket.

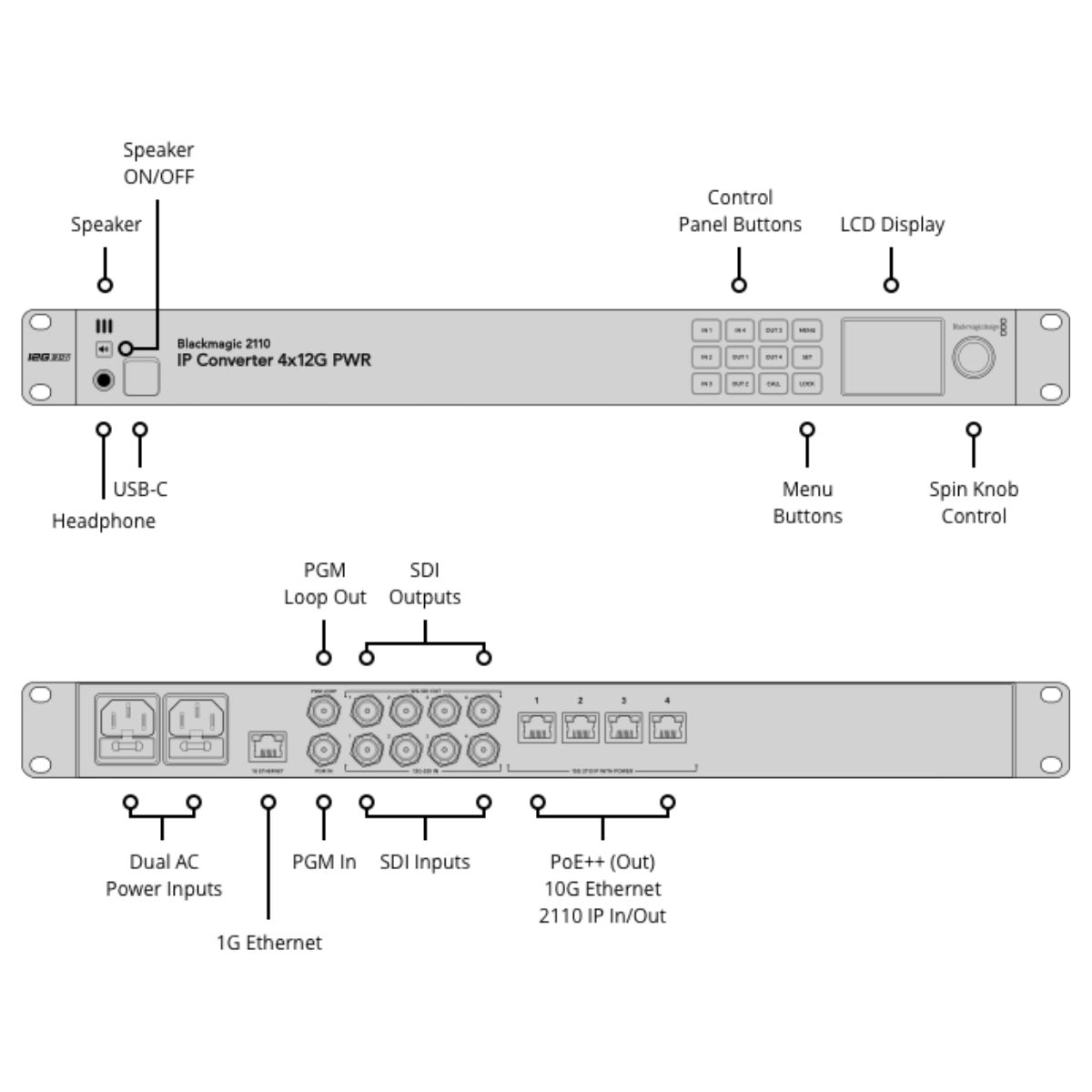

Connections
|
Total SDI Inputs |
5 |
|
SDI Video Inputs |
4 |
|
SDI Main Program Inputs |
1 |
|
Total SDI Outputs |
5 |
|
SDI Video Outputs |
4 |
|
SDI Main Program Outputs |
1 Loop Out. |
|
SDI Rates |
270Mb, 1.5G, 3G, 6G, 12G. |
|
SMPTE ST-2110 IP Video Inputs |
4 x 10G Ethernet |
|
SMPTE ST-2110 IP Video Outputs |
4 x 10G Ethernet |
|
Analog Audio Outputs |
1 x 6.35 mm headphone socket. |
|
SDI Audio Outputs |
16 Ch embedded audio on SDI loop output. |
|
SMPTE ST 2110 IP Audio Inputs |
16-channel embedded audio on ST-2110 IP video via 10G Ethernet. |
|
SMPTE ST 2110 IP Audio Outputs |
16-channel embedded audio on ST-2110 IP video via 10G Ethernet. |
|
Multi-Rate Support |
Auto detection of SD, HD, Ultra HD and 4K. |
|
Reclocking |
Yes |
|
Ethernet |
4 x 10Gb/s RJ‑45 PoE++ connectors supporting 10/100/1000/10G BASE-T for SMPTE 2110 IP video in and out. PoE++ is power output only for powering connected PoE devices such as Blackmagic Cameras and Converters. 1 x 1Gb/s RJ‑45 connector supporting 10/100/1000 BASE-T for configuration and firmware updates. |
|
Computer Interface |
1 x USB-C 3.0 for configuration and firmware updates. |
