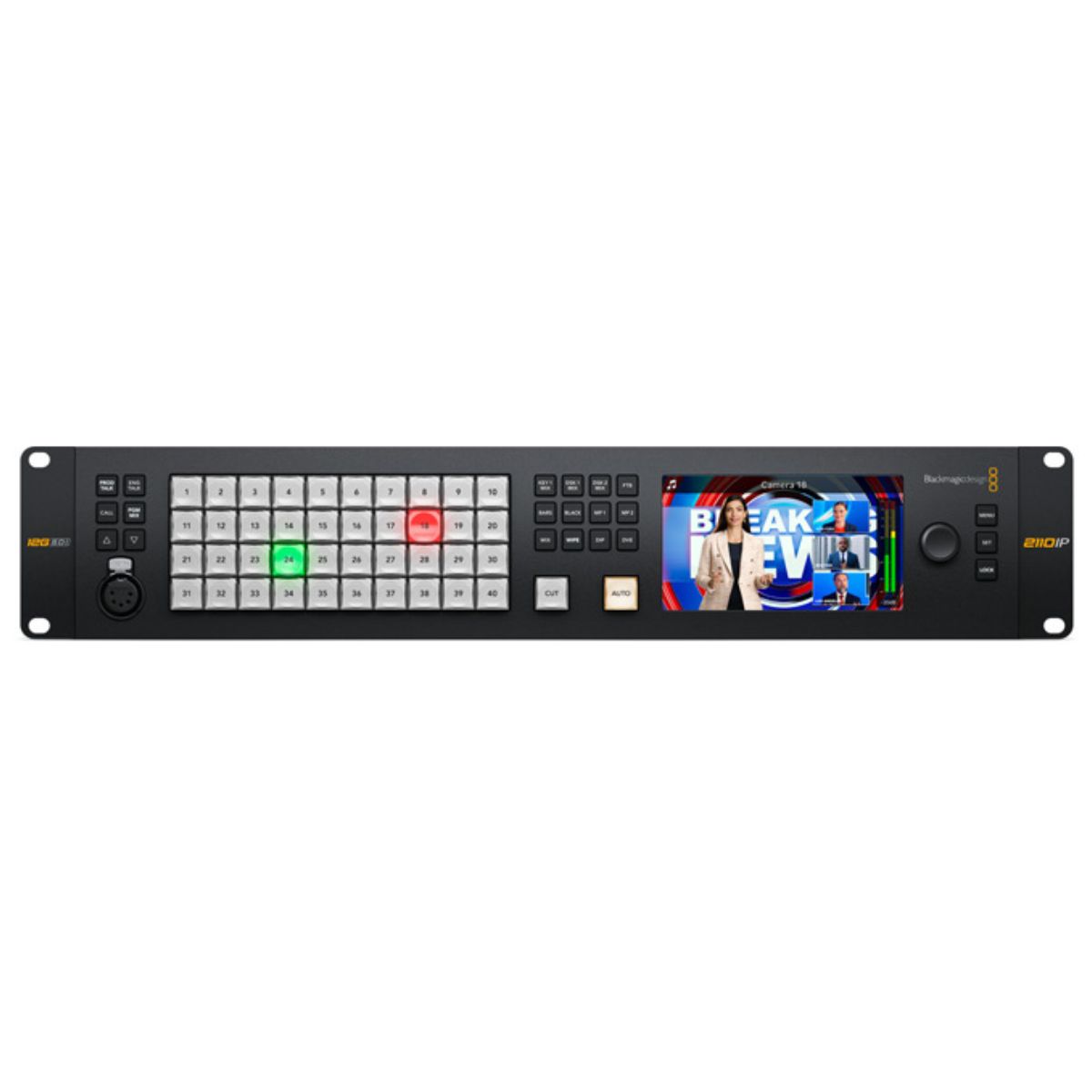

The ATEM Monitoring Rack Panel 40 is a video converter built into a larger 2RU rack-mount ATEM switcher control panel! It features 40 buttons for controlling a local ATEM switcher, plus a front panel talkback connection for communication. The video converter has two redundant SMPTE-2110 10G Ethernet connections, which are converted to 2 x 12G-SDI outputs and an HDMI output. Video is also displayed on the converter's large 5-inch built-in LCD screen, giving you convenient local rack monitoring!
Standards
|
HD Video Standards |
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
|
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60. |
|
SMPTE Compliance |
SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022‑7 |
|
Video Sampling |
4:2:2 |
|
Color Precision |
10-bit. |
|
SDI Color Space |
Rec. 709, Rec. 2020 |
Display
Front panel
Built-in HD LCD monitor for video, 42 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Connections
|
10G 2110 IP Networks |
2 x 10G RJ45 connections. Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks. |
|
1G Control Network |
1 x 1G RJ45 for connection to switcher and NMOS control. |
|
Total Video Inputs |
1 |
|
Total Video Outputs |
3 |
|
SDI Video Outputs |
2 |
|
SDI Rates |
1.5G, 3G, 6G, 12G. |
|
HDMI 2.0 Video Outputs |
1 |
|
SMPTE ST 2110 IP Audio Inputs |
16 Ch embedded audio on each 2110 IP video stream over 10G Ethernet. |
|
SDI Audio Outputs |
16 Ch embedded audio on all SDI outputs. |
|
HDMI Audio Outputs |
8 Ch embedded audio on HDMI output. |
|
Talkback |
1 x 5-pin XLR Talkback. |
|
Computer Interface |
1 x USB-C for setup utility and software updates. |
|
Power |
2 x IEC C14 power inputs. |
