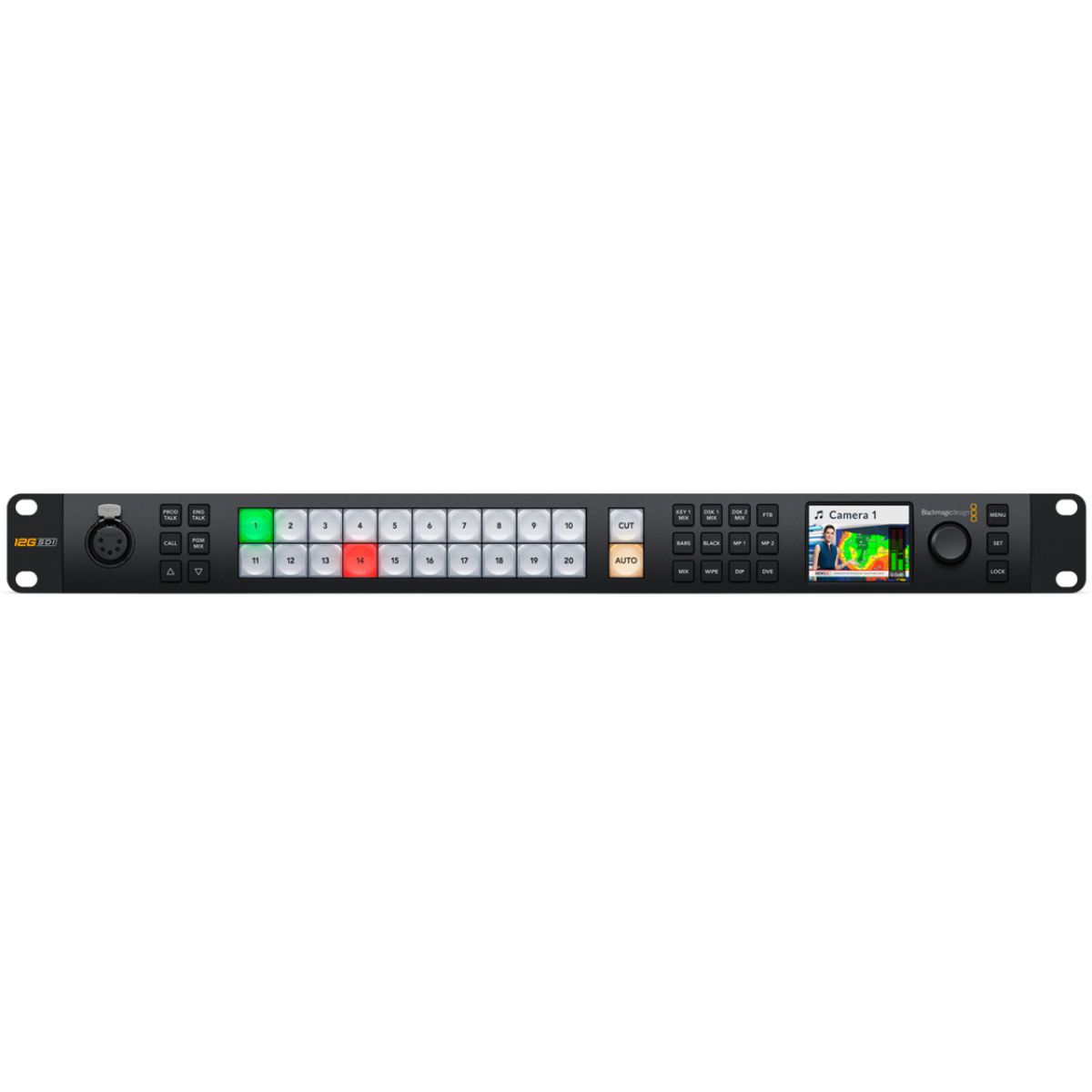

The ATEM Monitoring Rack Panel 20 is a video converter built into a 1RU rack-mount ATEM switcher control panel! It features 20 buttons for controlling a local ATEM switcher, plus a front panel talkback connection. The video converter has two redundant SMPTE-2110 10G Ethernet connections, which are converted to 2 x 12G-SDI outputs and an HDMI output. Video is also displayed on the converter's built-in LCD screen. Simply mount it in a rack and use it when setting up or monitoring a job!
Product Specifics
|
Talkback Support |
Yes |
|
Control |
Front panel emergency switching, software or optional hardware panel. |
Display
Front panel
Built in HD LCD monitor for video, 22 LED buttons for setup and emergency switching, 8 source buttons, 4 transition buttons, 6 talkback selection and mix buttons, menu control knob and set button, front panel lock button.
Connections
|
10G 2110 IP Networks |
2 x 10G RJ45 connections. Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks. |
|
1G Control Network |
1 x 1G RJ45 for connection to switcher and NMOS control. |
|
Total Video Inputs |
1 |
|
Total Video Outputs |
3 |
|
SDI Video Outputs |
2 |
|
HDMI 2.0 Video Inputs |
1 |
|
SMPTE ST 2110 IP Audio Inputs |
16 Ch embedded audio on each 2110 IP video stream over 10G Ethernet. |
|
SDI Audio Outputs |
16 Ch embedded audio on all SDI outputs. |
|
HDMI Audio Outputs |
8 Ch embedded audio on HDMI output. |
|
Talkback |
1 x 5-pin XLR Talkback. |
|
Computer Interface |
1 x USB-C for setup utility and software updates. |
|
Power |
2 x IEC C14 power inputs. |
