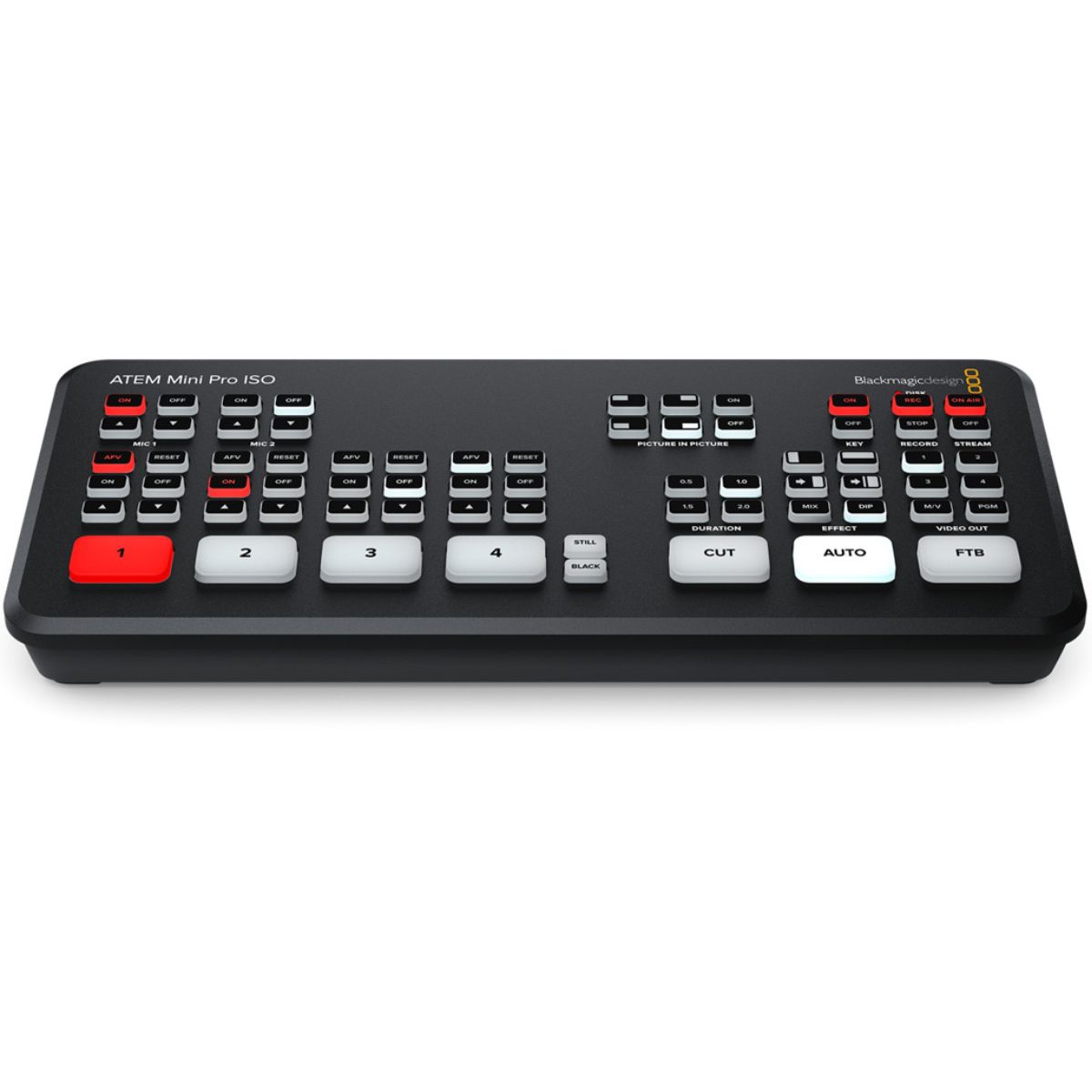

Affordable live switcher with 4 standards converted HDMI inputs, USB webcam out, audio mixer with EQ and dynamics, 2D DVE, transitions, green screen chroma key, 20 stills for titles, and much more! ATEM Mini Pro also includes recording to USB disks in H.264 format, a built-in hardware streaming engine for YouTube Live, Facebook, Twitch, and more, plus multiview to see all cameras on a single monitor. Plus, with the ATEM Mini Pro ISO model, you also get recording of 5 streams, including all input as clean feeds for editing, plus a DaVinci project file for fast edit turnaround and Blackmagic RAW file relinking for finishing in Ultra HD.
Product Specifics
|
Upstream Keyers |
1 |
|
Downstream Keyers |
1 |
|
Advanced Chroma Keyers |
1 |
|
Linear/Luma Keyers |
2 |
|
Transition Keyer |
DVE only. |
|
Total Number of Layers |
5 |
|
Pattern Generators |
1 |
|
Color Generators |
2 |
|
DVE with Borders and Drop Shadow |
1 |
|
Interface |
Minimum monitor resolution of 1366 x 768. |
Audio
|
Audio Mixer |
6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. |
|
Analog Input |
Unbalanced stereo |
|
Analog Input Delay |
Up to 8 frames |
|
Input Impedance |
1.8k |
|
Max Input Level |
+6dBV |
|
Mic Plug-In Power |
Available on both 3.5mm mini jack connections. |
|
USB Audio Output |
Supports digital audio output over USB‑C. Fully integrates with Fairlight Live. |
Connections
|
Total Video Inputs |
4 |
|
Total Outputs |
2 |
|
Total Aux Outputs |
1 |
|
Total Audio Inputs |
2 x 3.5 mm stereo mini jack. |
|
Total Audio Outputs |
None, embedded audio only. |
|
Timecode Connection |
None |
|
HDMI Video Inputs |
4 x HDMI type A, 10-bit HD switchable. 2-channel embedded audio. |
|
Video Input Re-Sync |
On all 4 HDMI inputs. |
|
Frame Rate and Format Converters |
On all 4 HDMI inputs. |
|
HDMI Program Outputs |
1 |
|
Ethernet |
Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates, and direct or network panel connection. |
|
Computer Interface |
1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates, and panel connection. |
