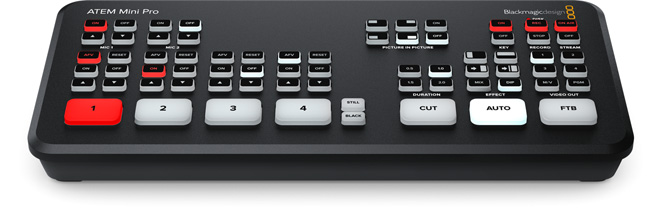

ATEM Mini Pro is fast to set up and easy to use. It includes 4 standards converted HDMI inputs, USB webcam out, HDMI out, Fairlight audio mixer with EQ and dynamics, DVE for picture in picture, transition effects, green screen chroma key, 20 stills media pool for titles and free ATEM Software Control. ATEM Mini Pro also includes direct recording to USB flash disks in H.264 and direct streaming via Ethernet to YouTube Live and more. There's also a multiview with 4 cameras, media, preview and program plus status of recording, streaming and audio.
Connections
|
Total Video Inputs |
4 |
|
Total Outputs |
2 |
|
Total Aux Outputs |
1 |
|
Total Audio Inputs |
2 x 3.5 mm stereo mini jack. |
|
Total Audio Outputs |
None, embedded audio only. |
|
Timecode Connection |
None |
|
HDMI Video Inputs |
4 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio. |
|
Video Input Re-Sync |
On all 4 HDMI inputs. |
|
Frame Rate and Format Converters |
On all 4 HDMI inputs. |
|
HDMI Program Outputs |
1 |
|
Ethernet |
Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates, and direct or network panel connection. |
Product Specifics
|
Upstream Keyers |
1 |
|
Downstream Keyers |
1 |
|
Advanced Chroma Keyers |
1 |
|
Linear/Luma Keyers |
2 |
|
Total Number of Layers |
5 |
|
Pattern Generators |
1 |
Audio
|
Audio Mixer |
6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. |
|
Analog Input |
Unbalanced stereo |
|
Analog Input Delay |
Up to 8 frames |
Recording
|
Direct Recording |
1 x USB-C 3.1 Gen 1 expansion port for external media to direct record a .mp4 H.264 with AAC audio at the ATEM video standard. |
|
Media Format |
Supports media formatted as ExFAT (Windows/Mac) or HFS+ (Mac) file systems. |
Streaming
|
Direct Streaming |
ATEM Mini Pro supports direct live streaming using Real Time Messaging Protocol (RTMP) over Ethernet or a shared mobile internet connection over USB‑C. |
