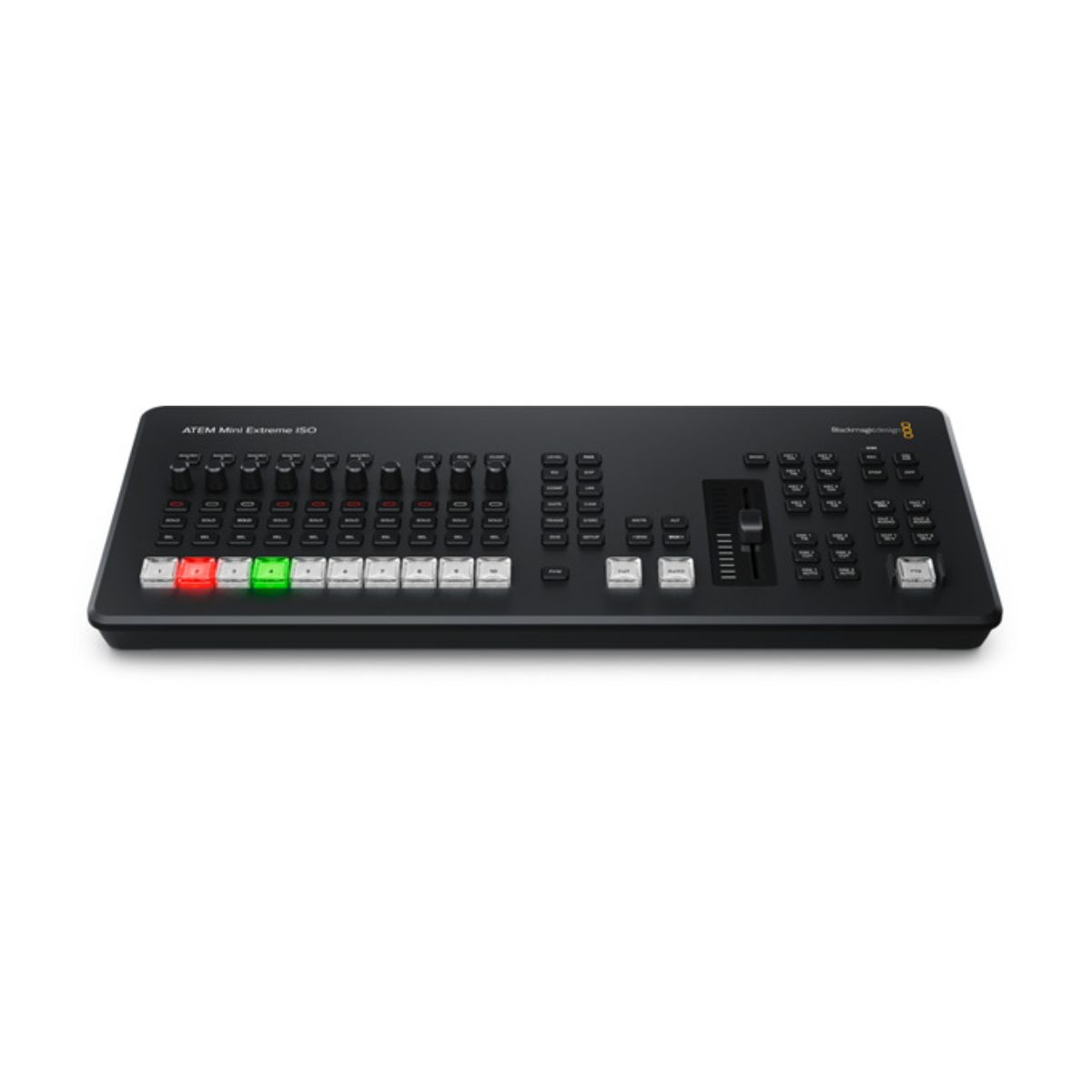

ATEM Mini Extreme ISO G2 is a powerful yet compact live switcher for building a high-end broadcast studio. Get an expanded professional style control panel with built-in streaming, 8 standards-converted HDMI inputs, 3 independent HDMI outputs, a built-in streaming engine, multi-view, CFexpress, and Thunderbolt for record/playback. There is also 10G Ethernet for fast network storage access, XLR audio inputs, a USB webcam, DVE, chroma key, a media player, and ISO recording of all 8 video inputs.
Product Specifics
|
Number of Mix Effects Rows |
1 |
|
Direct Cross Points |
10 |
|
Crosspoint Button Type |
NKK Buttons |
|
Preview Transition |
1 |
|
Source Select Bus |
Set using Multi Function Controls and Fairlight Audio Status Output. |
|
Dedicated Macro Buttons |
6 |
|
Transition Type Buttons |
Set using Multi Function Controls and Fairlight Audio Status Output. |
|
Transition Rate |
Set using Multi Function Controls and Fairlight Audio Status Output. |
|
Key Buttons |
8 |
|
AUX Buttons |
6 |
|
Fader Bar |
1 |
|
Record Buttons |
2 |
|
DSK Transition Selectors |
6 |
|
Stream Buttons |
2 |
|
Fade to Black Buttons |
1 NKK button |
|
Upstream Keyers |
4 |
|
Downstream Keyers |
2 |
|
Advanced Chroma Keyers |
Up to 4 |
|
SuperSource |
1 |
|
DVEs |
2 |
|
Linear/Luma Keyers |
Up to 4 |
|
Transition Keyer (Stinger/DVE) |
DVE only |
|
Color Generators |
2 |
|
Control Panel |
Set using Multi-Function Controls and Fairlight Audio Status Output. |
|
Routable Windows |
16 |
|
Tally |
Red for program and green for preview indication. |
Audio
|
Audio Mixer |
26 input x 2 channel mixer. (8 HDMI+16MADI+XLR+Thunderbolt) Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. |
|
Analog Input |
Balanced stereo XLR combo connectors |
|
Analog Input Delay |
Up to 8 frames |
|
Mic Plug-In Power |
+48V phantom power on XLR combo inputs |
|
USB Audio Output |
Supports digital audio output over USB‑C. Fully integrates with Fairlight Live. |
Connections
|
Total Video Inputs |
9 |
|
Direct Cross Points |
10 |
|
Crosspoint Button Type |
NKK Buttons |
|
Preview Transition |
1 |
|
Source Select Bus |
Set using Multi Function Controls and Fairlight Audio Status Output. |
|
Dedicated Macro Buttons |
6 |
|
Transition Type Buttons |
Set using Multi Function Controls and Fairlight Audio Status Output. |
|
Transition Rate |
Set using Multi Function Controls and Fairlight Audio Status Output. |
|
Key Buttons |
8 |
|
AUX Buttons |
6 |
|
Fader Bar |
1 |
|
Record Buttons |
2 |
|
Stream Buttons |
2 |
|
DSK Transition Selectors |
6 |
|
Fade to Black Buttons |
1 NKK button |
|
Upstream Keyers |
4 |
|
Downstream Keyers |
2 |
|
Advanced Chroma Keyers |
Up to 4 |
|
SuperSource |
1 |
|
DVEs |
2 |
|
Linear/Luma Keyers |
Up to 4 |
|
Transition Keyer (Stinger/DVE) |
DVE only |
|
Color Generators |
2 |
|
Control Panel |
Set using Multi-Function Controls and Fairlight Audio Status Output. |
|
Routable Windows |
16 |
|
Tally |
Red for program and green for preview indication. |
