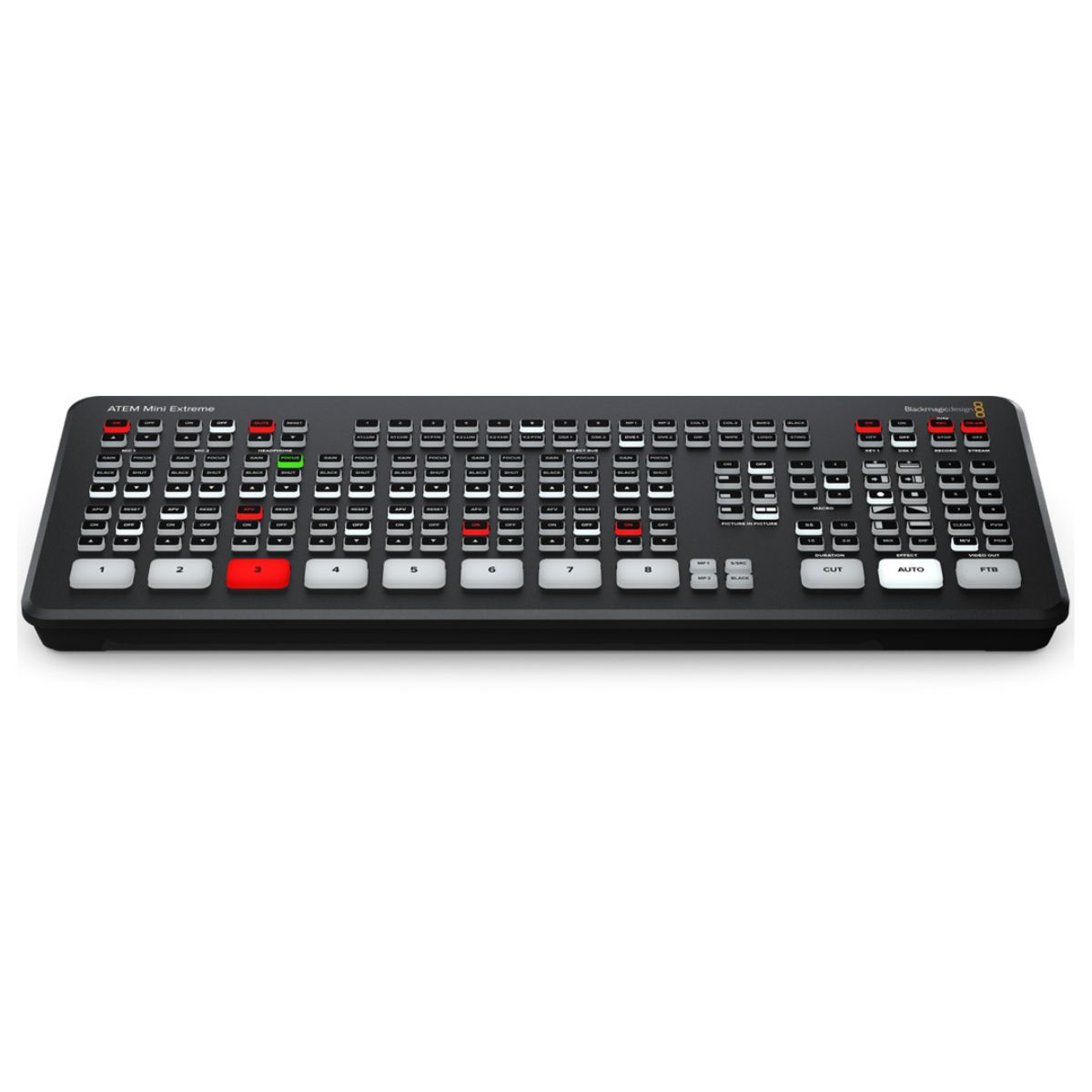

ATEM Mini Extreme is an advanced switcher for true professionals! You get all the ATEM Mini Pro features plus 8 HDMI inputs, 2 separate HDMI outputs, 2 USB ports, and a headphone connection. There are also 4 chroma keyers, 6 picture-in-picture DVEs, 2 media players, and a multiview with up to 16 views!
Product Specifics
|
Upstream Keyers |
4 |
|
Downstream Keyers |
2 |
|
Advanced Chroma Keyers |
Up to 4 |
|
Linear/Luma Keyers |
Up to 4 |
|
Transition Keyer |
DVE only. |
|
Total Number of Layers |
9 |
|
Pattern Generators |
5 |
|
Color Generators |
2 |
|
DVE With Borders and Drop Shadow |
2 |
|
Interface |
Minimum monitor resolution of 1366 x 768. |
Audio
|
Audio Mixer |
11 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. |
|
Analog Input |
Unbalanced stereo |
|
Analog Input Delay |
Up to 8 frames |
|
Input Impedance |
1.8k |
|
Max Input Level |
+6dBV |
|
Mic Plug In Power |
Available on both 3.5mm mini jack connections. |
|
USB Audio Output |
Supports digital audio output over USB‑C. Fully integrates with Fairlight Live. |
Connections
|
Total Video Inputs |
8 |
|
Total Outputs |
4 |
|
Total Aux Outputs |
2 |
|
Total Audio Inputs |
2 x 3.5 mm stereo mini jack. |
|
Total Audio Outputs |
1 x 3.5 mm stereo mini jack. |
|
Timecode Connection |
None |
|
HDMI Video Inputs |
8 x HDMI type A, 10-bit HD switchable. 2-channel embedded audio |
|
Video Input Re-Sync |
On all 8 HDMI inputs. |
|
Frame Rate and Format Converters |
On all 8 HDMI inputs. |
|
HDMI Program Outputs |
2 |
|
Ethernet |
Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates, and direct or network panel connection. |
|
Computer Interface |
2 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates, and panel connection. |
