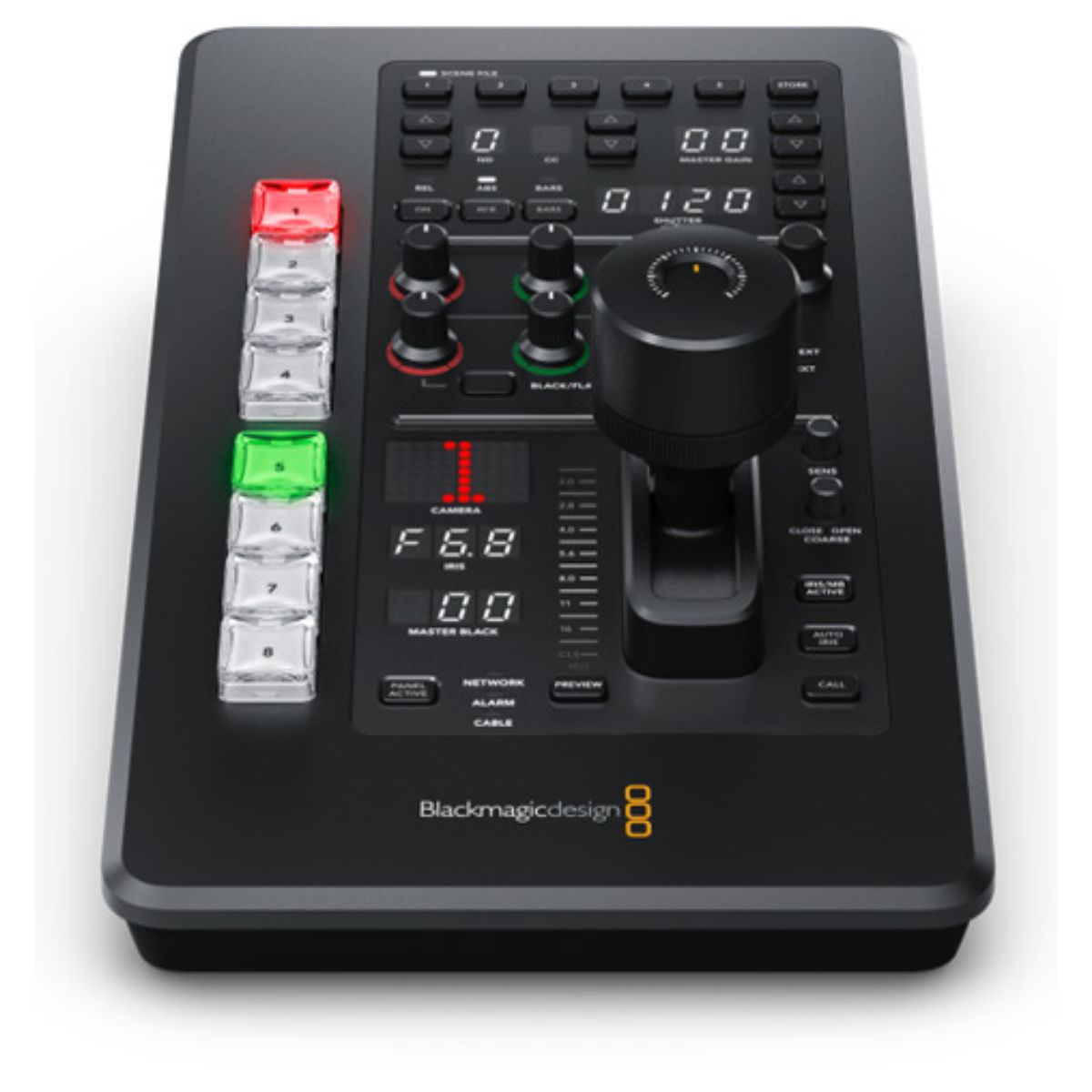

ATEM Micro Camera Panel is a portable camera panel with high-end broadcast CCU controls. Control iris, pedestal, shutter, white balance, master gain, RGB balance, and more for up to 8 cameras from a single panel. Connects to ATEM Software Control via Bluetooth or USB‑C.
Product Specifics
|
Camera Selection buttons |
8 x NKK buttons. Assignable via setup utility. |
|
Camera Number Display |
Green off-air, red on-air. |
|
Setup |
White and black balance setup. Flare via modifier key. |
|
3 Axis Joystick |
1 |
|
Preview Button |
1 |
|
Iris Control |
Auto Iris On, Coarse control. |
|
Iris Range |
CLS f32 to f1.2 |
|
Gain Range |
-12dB to +32dB |
|
ND Filters |
0, 2, 4, 6. |
|
Shutter Range |
1/24 to 1/2000 |
|
White Balance Range |
White Balance Range |
|
Recallable Scenes |
5 per camera. |
|
Panel Active |
Protects settings. |
Connections
|
Computer Interface |
USB Type‑C. |
|
Bluetooth |
Bluetooth 5.1 LE |
|
Software Updates |
1 x USB‑C for firmware updates. |
