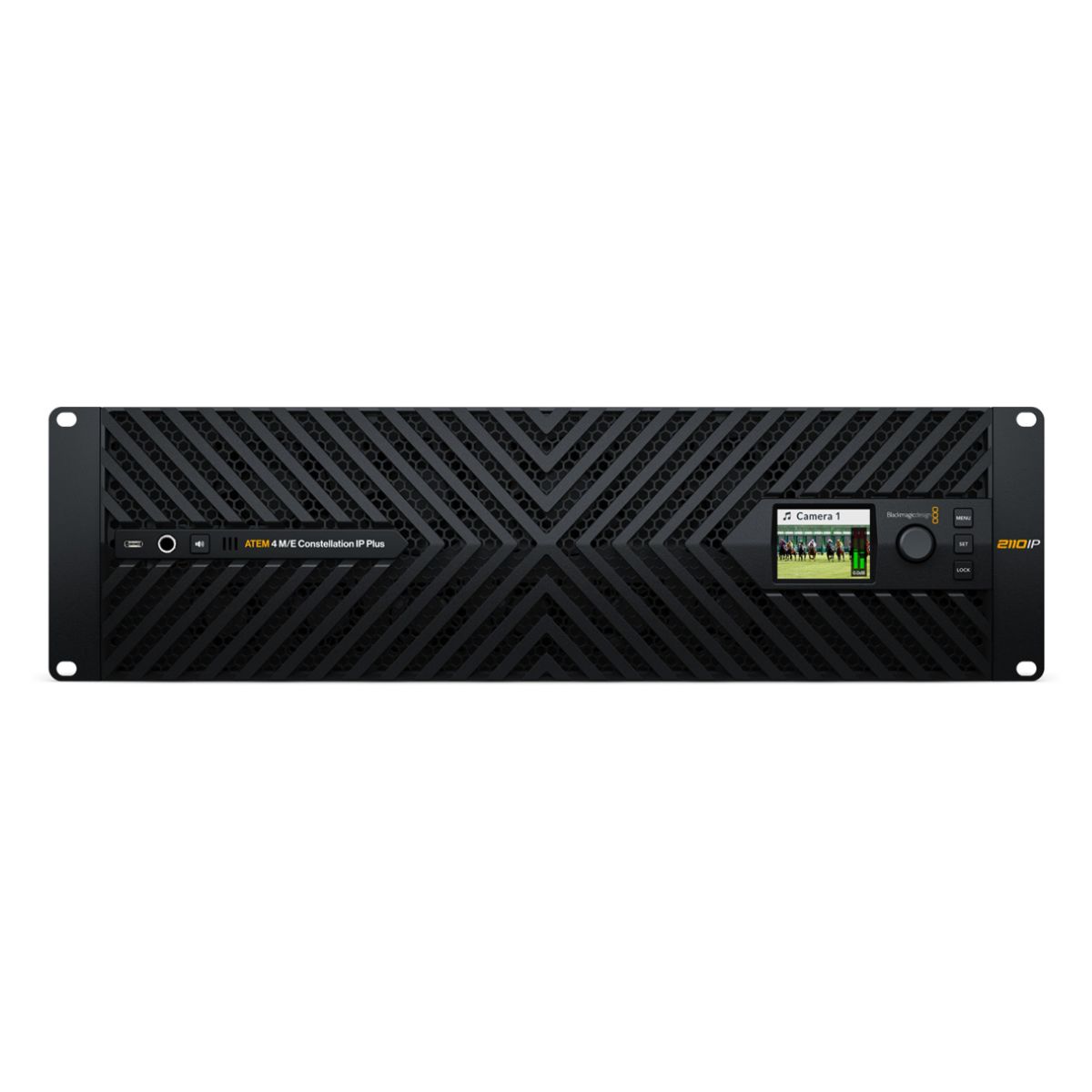

ATEM 4 M/E Constellation IP Plus is a much larger and more powerful live production switcher with lots of video inputs and outputs! It features a design that's fully SMPTE-2110 native with high-speed 100G Ethernet connections. Like the smaller model, all IP video connections are fully redundant and SMPTE-2022-7 compliant. You get an impressive 64 inputs and 64 outputs, 16 ATEM Advanced Keyers, 4 multi-views and 2 SuperSource processors for a total of 12 DVEs. Perfect for large live productions!
Product Specifics
|
Upstream Keyers |
16 |
|
Downstream Keyers |
4 |
|
Advanced Chroma Keyers |
16 |
|
SuperSource |
2 |
|
Talkback Support |
Yes |
|
Mix Minus Support |
Yes |
|
Linear/Luma Keyers |
20 |
|
Transition Keyer (Stinger/DVE) |
4 Stinger, 4 DVE. |
|
Total Number of Layers |
28 |
|
Pattern Generators |
21 |
|
Color Generators |
2 |
|
DVEs |
4 |
|
Control |
2 x 10G RJ45 Ethernet for panel connection, NMOS control plus loading media, saving and loading presets. |
|
Routable Windows |
64 |
|
Tally |
Red for program and green for preview indication. |
|
Windows Source Labels |
Yes |
Connections
|
100G 2110 IP Networks |
16 x 100G QSFP28 connections. Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks. |
|
Senders and Receivers per 100G Pair |
8 x Ultra HD |
|
10G Control Network |
2 x 10G RJ45 Ethernet for NMOS control plus loading media, saving and loading presets. |
|
Reference Network |
2 x RJ45 Ethernet for 2110 PTP clock. |
|
1G Management |
1 x RJ45 Ethernet. Supports 10/100/1000 BASE-T. For ATEM Setup utility and software updates. |
|
Analog Audio Outputs |
1 x 6.35 mm headphone jack. |
|
Total Video Inputs |
64 |
|
Total Video Outputs |
64 |
|
Total Aux Outputs |
64 |
|
Total Audio Outputs |
1 x 6.35 mm headphone jack. 1 x Speaker |
|
Frame Rate and Format Converters |
On all 64 inputs |
|
Extra Audio Outputs |
1 x 6.35 mm headphone jack. (The audio will be the mix of PGM plus engineering, production and side tone.) |
|
Program Outputs |
Any of the 64 outputs. |
|
Preview Outputs |
Any of the 64 outputs. |
|
Multiview Outputs |
4 of any of the 64 outputs. |
|
Webcam Output |
Rear USB-C supports 720p or 1080p at PGM frame. |
|
Control Panel Connection |
2 x 10G RJ45 Ethernet for panel connection, NMOS control plus loading media, saving and loading presets. |
|
Internal Timecode Generator |
Yes |
|
Computer Interface |
Rear USB-C supports USB 3.0 for external USB audio (Fairlight Live), webcam out, ATEM Setup utility and software updates. Front USB-C supports USB 2.0 for updates and setup only. |
|
Power |
2 x IEC C14 power inputs. |
