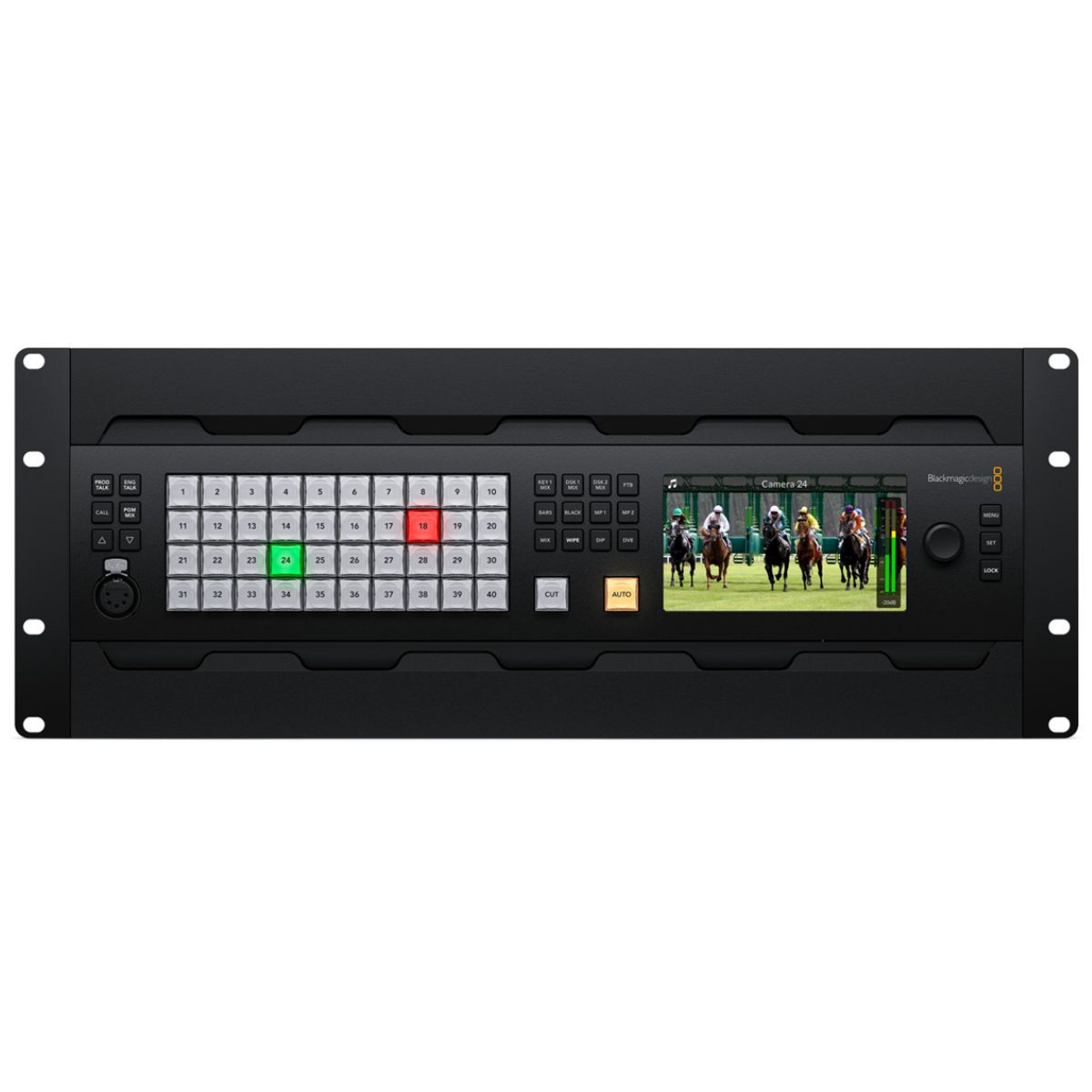

ATEM 4 M/E Constellation 4K Plus is a massive 4 M/E Ultra HD live production switcher. It features 80 standards converted 12G-SDI inputs, 48 12G-SDI aux outputs, 4 DVEs, 16 ATEM Advanced Chroma Keyers, 4 media players, 4 independent Ultra HD multi-views, 2 SuperSource processors, and more. You even get built-in talkback and a professional 156-channel Fairlight audio mixer with EQ and dynamics!
Product Specifics
|
Upstream Keyers |
16 |
|
Downstream Keyers |
4 |
|
Advanced Chroma Keyers |
16 |
|
SuperSource |
2 |
|
Talkback Support |
Yes |
|
Mix Minus Support |
Yes |
|
Linear/Luma Keyers |
20 |
|
Transition Keyer (Stinger/DVE) |
4 Stinger, 4 DVE. |
|
Total Number of Layers |
28 |
|
Pattern Generators |
21 |
|
Color Generators |
2 |
|
DVEs |
4 |
|
Control Panel |
Front fascia emergency switching, software or optional hardware panel. |
|
Routable Windows |
64 |
|
Tally |
Red for program and green for preview indication. |
|
Windows Source Labels |
Yes |
Connections
|
Total Video Inputs |
80 |
|
Total Video Outputs |
52 |
|
Total Aux Outputs |
48 |
|
SDI Rates |
1.5G, 3G, 6G, 12G. |
|
Total Audio Inputs |
2 x balanced 1/4 inch jack, 2 x 64 channel BNC MADI in, 1 x 5-pin XLR Talkback. |
|
Total Audio Outputs |
2 x balanced 1/4 inch jack, 4 x 64 channel BNC MADI out, 1 x 5-pin XLR Talkback. |
|
Timecode Connections |
1 x 3-pin XLR Timecode In, 1 x 3-pin XLR Timecode Out. |
|
Reference Input |
Tri-Sync or Black Burst. |
|
Video Input Re-Sync |
On all 80 inputs. |
|
Frame Rate and Format Converters |
On all 80 inputs. |
|
SDI Video Inputs |
80 x 10-bit 720p, 1080i, 1080p, 2160p. |
|
SDI Audio Inputs |
8 Ch embedded audio on all SDI inputs. |
|
Extra Audio Inputs |
1 x 5 pin XLR Talkback. |
|
SDI Video Outputs |
52 x 10-bit 720p, 1080i, 1080p, 2160p. |
|
SDI Audio Outputs |
16 Ch embedded into SDI output on all outputs. |
|
Extra Audio Outputs |
1 x 5 pin XLR Talkback. |
|
SDI Program Outputs |
Any of the 48 SDI outputs. |
|
Down Converted SDI Program Outputs |
8 |
|
SDI Preview Outputs |
Any of the 48 SDI outputs |
|
SDI Multi View Outputs |
4 x dedicated outputs, Up to an extra 48 routable outputs. |
|
HDMI Multi View Outputs |
None |
|
Webcam Output |
1 x USB-C supporting 720p or 1080p at program frame rate. |
|
Remote |
RJ12 supports RS-422. |
|
Control Panel Connection |
Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network. |
|
Internal Timecode Generator |
Yes |
|
Talkback |
RJ45 for 3rd party talkback systems. |
|
Tally Output |
Added via Ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). On any of the 48 SDI Outputs. |
|
Computer Interface |
1 x USB-C port. |
