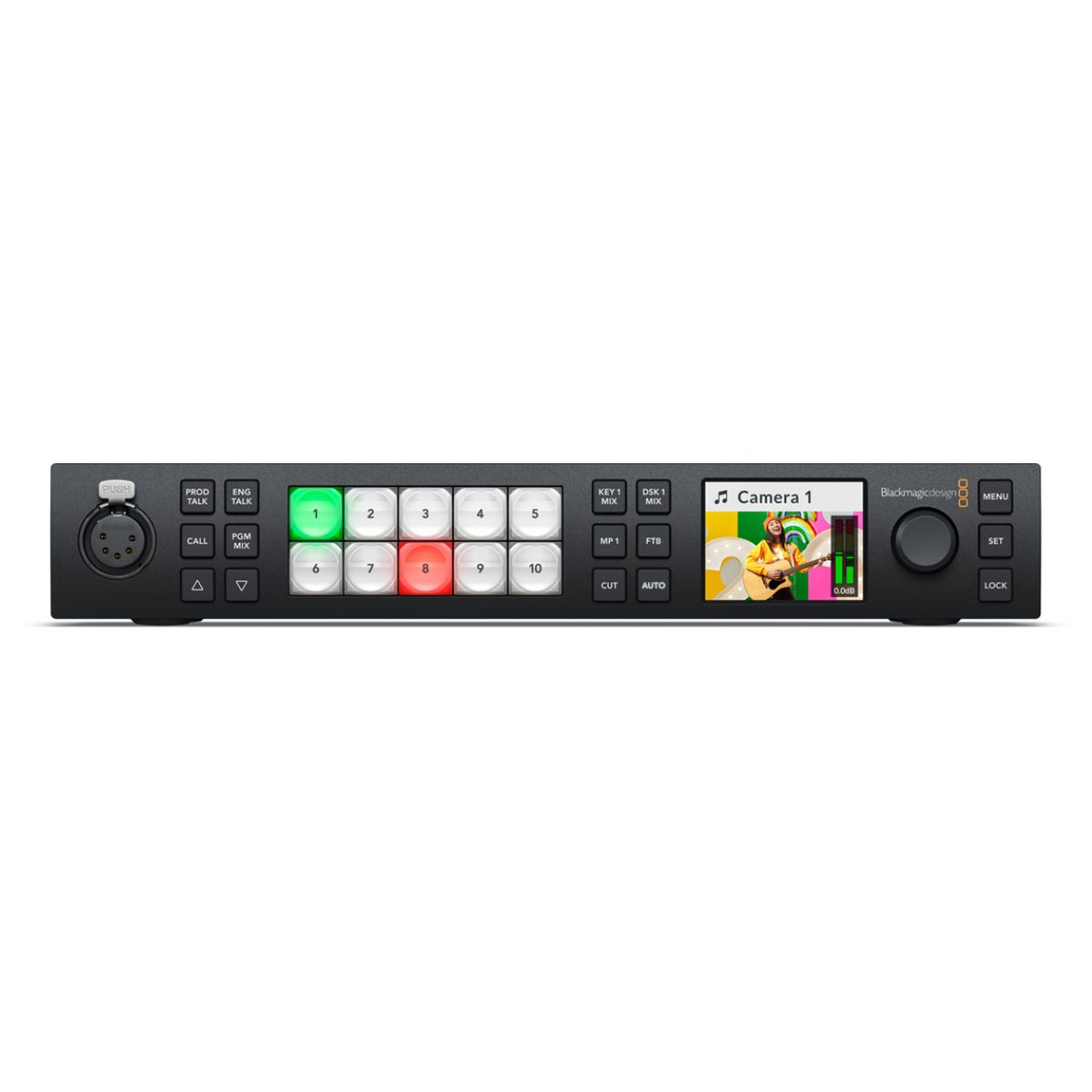

ATEM 1 M/E Constellation HD is a high-definition live production switcher packed with advanced features! The single M/E design includes 10 standards converted 3G‑SDI inputs and 6 independent 3G‑SDI aux outputs! It also includes a USB webcam output, DVE, chroma keyers, media players, multiview, and more!
Product Specifics
|
Upstream Keyers |
4 |
|
Downstream Keyers |
1 |
|
Advanced Chroma Keyers |
4 |
|
Talkback Support |
Yes |
|
Mix Minus Support |
Yes |
|
Linear/Luma Keyers |
5 |
|
Transition Keyer (Stinger/DVE) |
1 Stinger, 1 DVE. |
|
Total Number of Layers |
7 |
|
Pattern Generators |
5 |
|
Color Generators |
2 |
|
Control Panel |
Front fascia emergency switching, software, or optional hardware panel. |
|
Routable Windows |
16 |
|
Tally |
Red for program and green for preview indication. |
|
Windows Source Labels |
Yes |
Media Player
|
Media Players |
2 |
|
Channels |
Fill and key for each media player. |
|
Media Pool Still Image Capacity |
20 |
|
Media Pool Clip Capacity |
2 x up to 1080p60. |
|
Media Player Clip Length in 720 HD |
400 frames. |
|
Media Player Clip Length in 1080 HD |
200 frames. |
|
Media Pool Still Image Format |
PNG, TGA, BMP, GIF, JPEG and TIFF. |
|
Media Pool Video File Format |
TGA Sequence. |
|
Media Pool Audio File Format |
WAV, MP3 and AIFF. |
Connections
|
Total Video Inputs |
10 |
|
Total Video Outputs |
6 |
|
SDI Rates |
1.5G, 3G |
|
Total Audio Inputs |
2 x balanced 1/4 inch Jack, 1 x 5-pin XLR Talkback. |
|
Total Audio Outputs |
1 x 5-pin XLR Talkback. |
|
SDI Audio Inputs |
8 Ch embedded audio on all SDI inputs. |
|
SDI Audio Outputs |
16 Ch embedded audio on all SDI outputs. |
|
Timecode Connections |
None |
|
Reference Input |
Tri-Sync or Black Burst. |
|
Video Input Re-Sync |
On all 10 inputs. |
|
Frame Rate and Format Converters |
On all 10 inputs. |
|
SDI Aux Outputs |
Any of the 6 SDI outputs. |
|
SDI Preview Outputs |
Any of the 6 SDI outputs. |
|
SDI Program Outputs |
Any of the 6 SDI outputs. |
|
Down-converted SDI Program Output |
None |
|
Webcam Output |
1 x USB-C supporting 720p or 1080p at PGM frame rate. |
|
Total Multi Views |
1 x 3G-SDI |
|
Control Panel Connection |
Ethernet. Direct connection between panel and chassis, or via network. |
|
Internal Timecode Generator |
Yes |
|
Talkback |
RJ45 for 3rd party talkback systems. |
|
Tally Output |
Added via Ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). |
|
Ethernet |
Supports 10/100/1000 BASE-T. |
|
Computer Interface |
1 x USB-C supports USB 2.0 |
