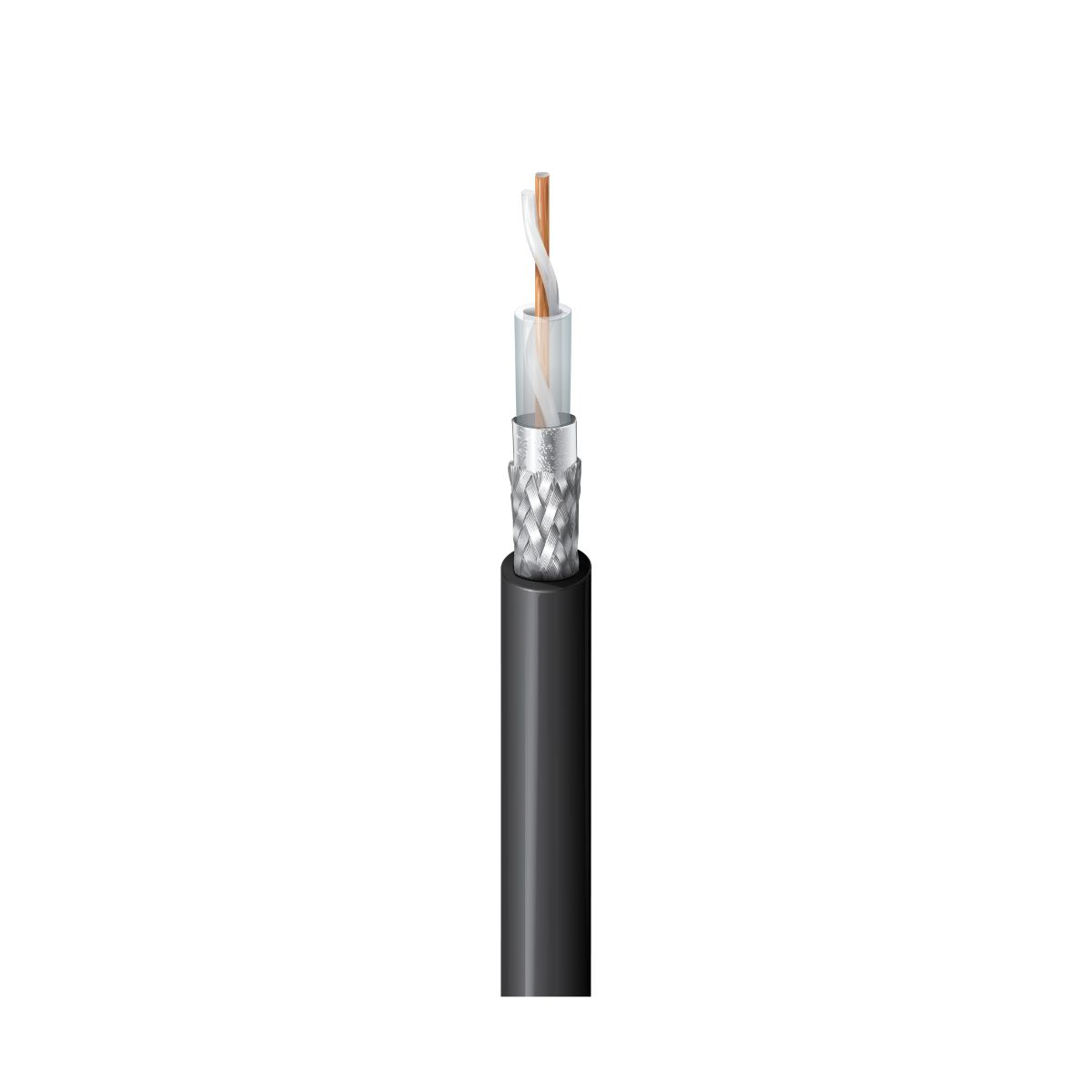

9913 RG8 , 10 AWG, BARE COPPER , 50 OHMS CABLE
50 Ohm Wireless Transmission Coax, RG-8, 10 AWG Solid Bare Copper Conductor, PE Insulation, Foil + 90% Tinned Copper Braid Shield, PVC Jacket
Conductor
| Size | Stranding | Nom. Diameter | Material |
| 10 AWG | Solid | 0.108 in | BC - Bare Copper |
Insulation
| Material | Nom. Insulation Diameter | Color Code | Notes |
| PE - Polyethylene (Semi-Solid) | 0.285 in (7.24 mm) | White | Solid PE monofilament spirals around the conductor. Solid PE tube over monofilament |
Electricals
| Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop |
| 0.9 Ohm/1000ft | 1.8 Ohm/1000ft (5.9 Ohm/km) | 24.6 pF/ft (80.7 pF/m) | 50 Ohm | 84% |
