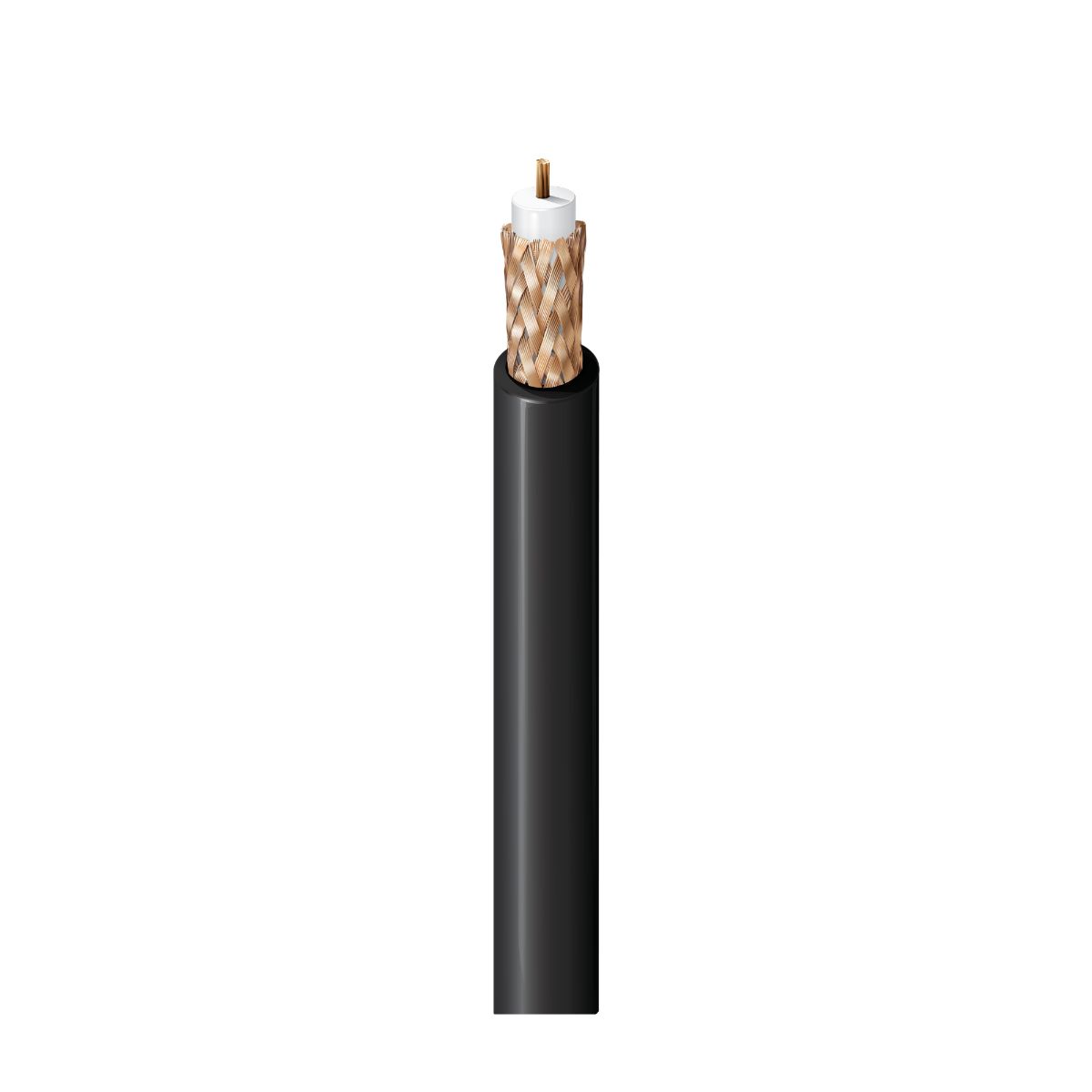

9258 RG8X, 50 OHMS CABLE, FLEXIBLE
50 Ohm Wireless Transmission Coax, RG-8X, 16 AWG (19x29) Bare Copper Conductor, PE Insulation, 95% Bare Copper Braid Shield, PVC Jacket, CM
Conductor
| Size | Stranding | Nom. Diameter | Material |
| 16 AWG | 19x29 | 0.057 in | BC - Bare Copper |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
| PE - Polyethylene (Foam) | 0.155 in (3.94 mm) | White |
Electricals
| Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop |
| 4.1 Ohm/1000ft | 3.1 Ohm/1000ft (10 Ohm/km) | 25.3 pF/ft (83.0 pF/m) | 50 Ohm | 82% |
