907 Stereo Power Amplifier
The 907 is a high-performance stereo power amplifier designed for line-level audio signals. It features a balanced stereo input via a terminal block connector and delivers 40W per channel into an 8Ω load, making it suitable for professional audio installations.
- High Efficiency — Class D operation.
- Controls — Volume control knob & mute button.
- Gain Control DIP Switch.
- Mute and On Indicator LEDs.
- Compact MultiTOOLS® — Up to 4 units can be rack mounted side–by–side in a 1U rack space with the recommended rack adapter.

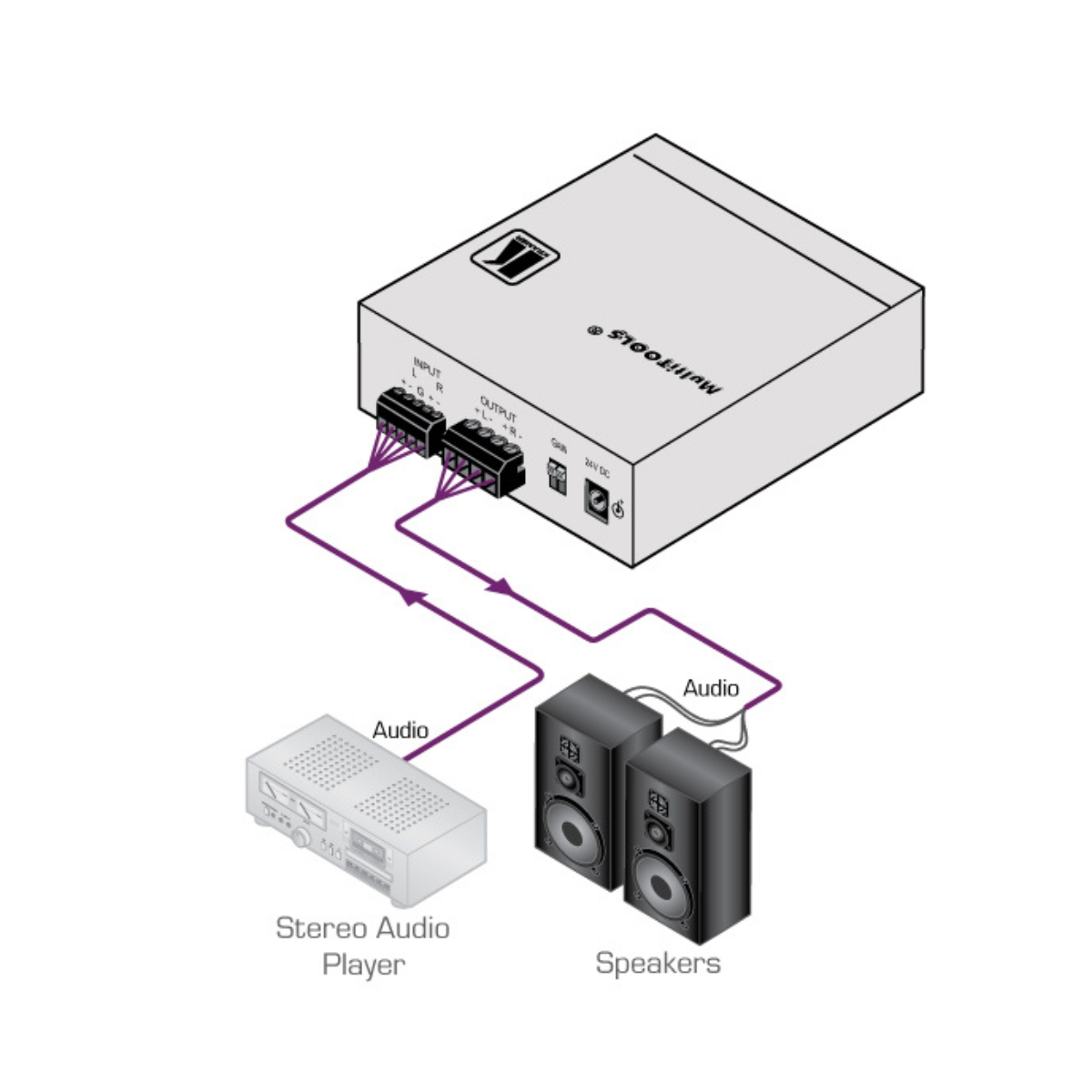

| INPUT | 1 balanced stereo audio on a terminal block connector |
| OUTPUT | 1 balanced stereo audio (speakers) on a terminal block connector |
| OUTPUT POWER | 40 watts per channel into 8Ω |
| OUTPUT MUSIC POWER | 150W per channel into 8Ω |
| INPUT SENSITIVITY | 1.2Vrms |
| AMPLIFIER TYPE | Class D |
| VOLTAGE GAIN | 20dB (x10) |
| BANDWIDTH (-3dB) | 20kHz |
| S/N RATIO | 60.2dB |
| COUPLING | DC |
| AUDIO THD + NOISE | 1.9% |
| AUDIO 2nd HARMONIC | 0.3% |
| POWER CONSUMPTION | 24V DC, 5A |
| INCLUDED ACCESSORIES | Power supply |
