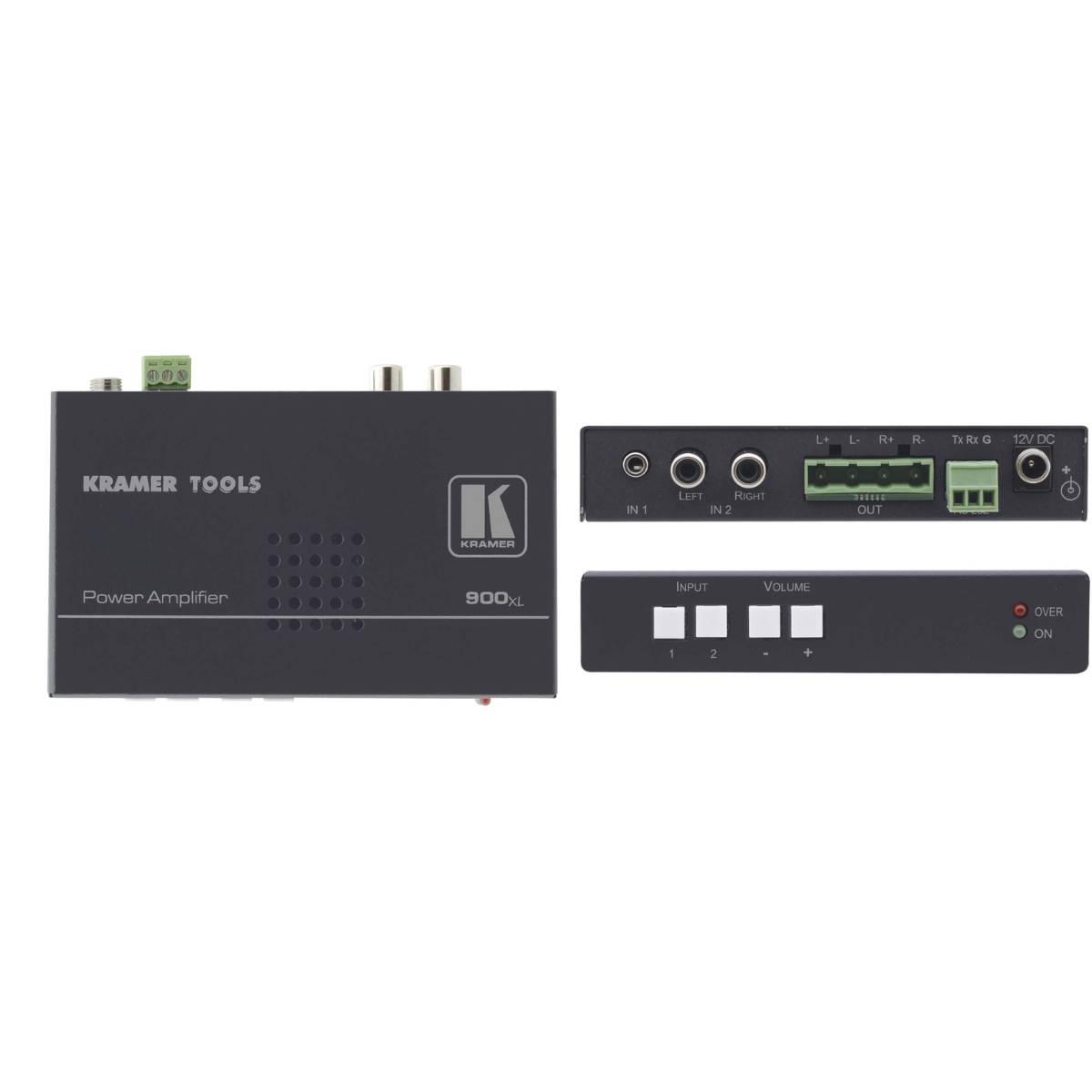

900xl Stereo Power Amplifier
The 900xl is a high-performance stereo power amplifier designed for line-level audio signals. It features unbalanced inputs via dual RCA or 3.5mm connectors and delivers 10W RMS per channel into a 4Ω load, making it ideal for compact audio installations.
- S/N — 60 dB
- Inputs — 2 RCA & 3.5mm
- 10 Watts RMS Per Channel
- Control — Front Panel & RS–232
| INPUTS | 1 unbalanced stereo audio on a 3.5mm mini jack connector, 1 unbalanced stereo audio on RCA connectors |
| OUTPUT | 1 stereo differential speaker output |
| OUTPUT POWER | 2x10W (4Ω) |
| INPUT SENSITIVITY | 460mV |
| OUTPUT MUSIC POWER | 2x40W (4Ω) |
| BANDWIDTH (-3dB) | 25kHz |
| S/N RATIO | 85dB @1kHz, 0dBu output |
| CONTROLS | Gain range: −14 to +32dB at high-gain; −21 to +20dB at low-gain |
| COUPLING | Input: AC; output: DC |
| AUDIO THD + NOISE | 0.6% @0dBu output |
| AUDIO 2nd HARMONIC | 0.35% @0dBu output |
