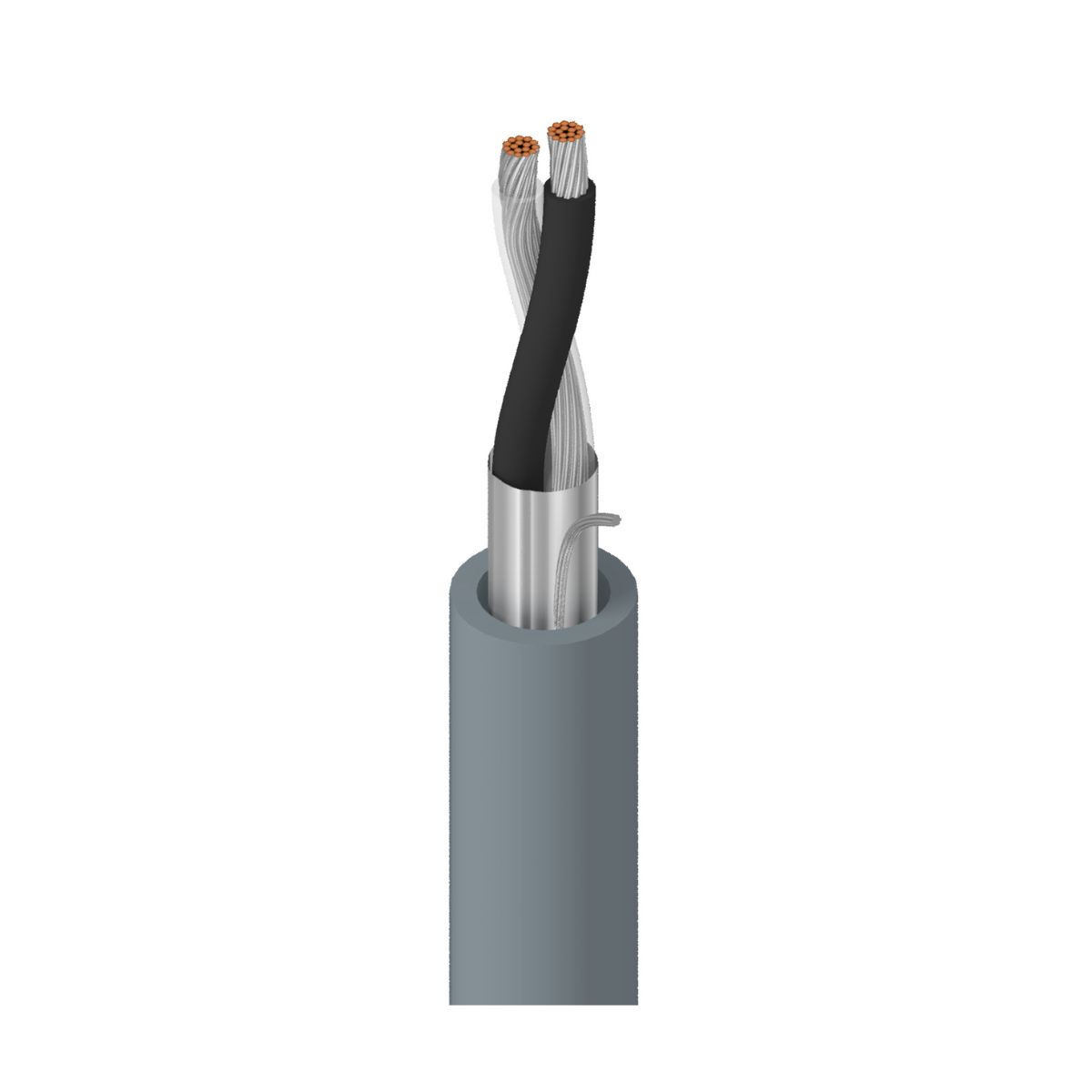

8761 22 AWG ,2 CONDUCTOR AUDIO CABLE
Electronic, 2 Conductor 22AWG (7x30) Tinned Copper, PE Insulation, Overall Beldfoil® Shield, PVC Outer Jacket, CM
Conductor
| Element | No. of Elements | Size | Stranding | Material |
| Pair(s) | 1 | 22 AWG | 7x30 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Pair(s) | PE - Polyethylene | 0.017 in (0.43 mm) | 0.062 in (1.6 mm) | Black, Clear |
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. CharacterisImpedence | Nom. Inductance | Max. Current |
| Pair(s) | 18.2 Ohm/1000ft | 24 pF/ft (79 pF/m) | 47 pF/ft (150 pF/m) | 64 Ohm | 0.2 µH/ft (0.66 µH/m) | 6 Amps per Conductor at 30ºC |
