8723 22 AWG , 4 CORE AUDIO CABLE,CHROME

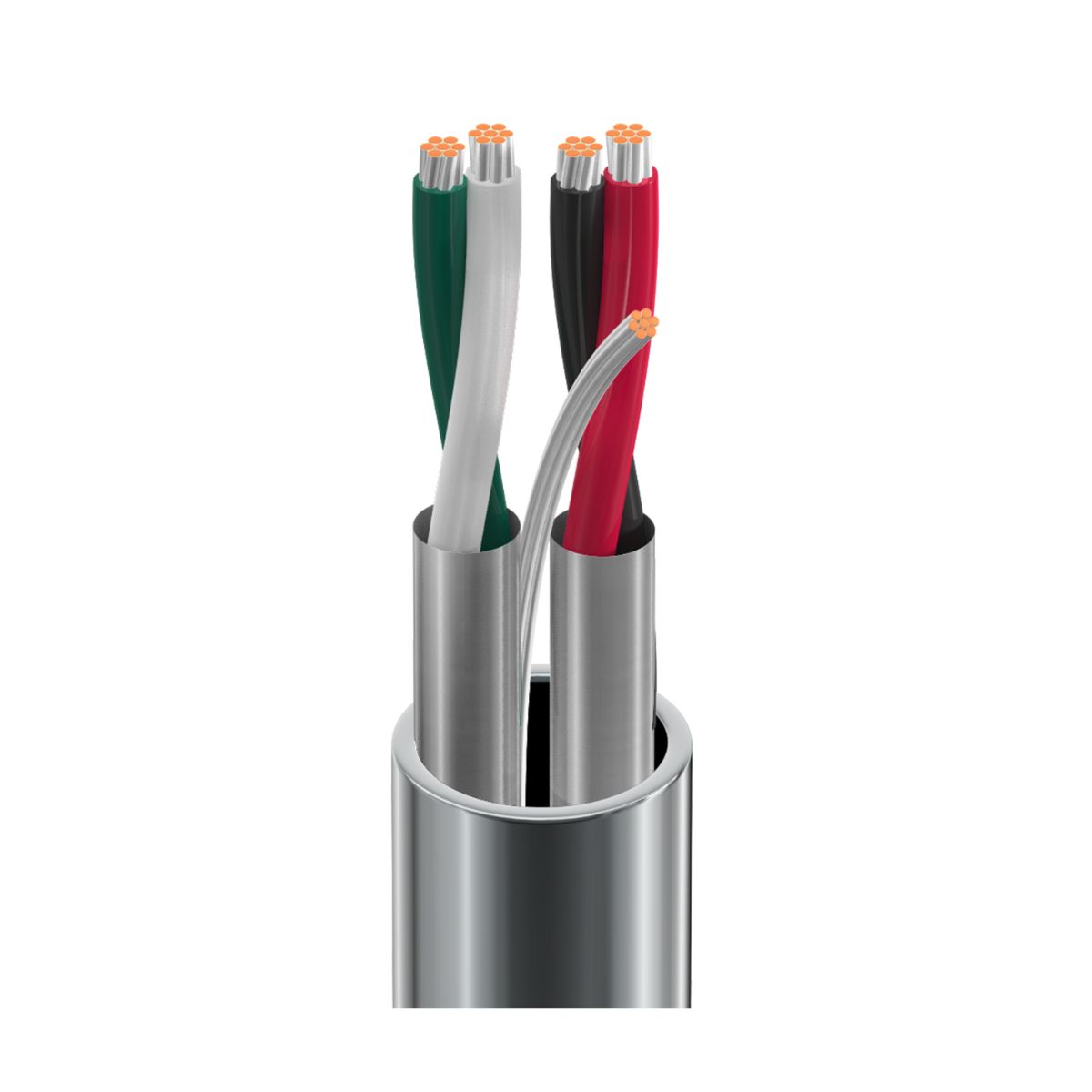

Audio, Control & Instrument Cable, 22 AWG stranded (7x30) tinned copper conductors, polypropylene insulation, twisted pairs, individually Beldfoil® shielded (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.
Conductor
| Element | No. of Elements | Size | Stranding | Material |
| Pair(s) | 2 | 22 AWG | 7x30 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Pair(s) | PP - Polypropylene | 0.009 in (0.23 mm) | 0.046 in (1.2 mm) | Black & Red, Green & White |
Electricals
| Element | Nom. Conductor DCR | Nom. Inner Shield DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Inductance | Nom. Velocity of Prop. | Max. Current |
| Pair(s) | 18.2 Ohm/1000ft | 18.38 Ohm/1000ft (60.30 Ohm/km) | 33 pF/ft (110 pF/m) | 62 pF/ft (200 pF/m) | 52 Ohm | 0.17 µH/ft (0.56 µH/m) | 66% | 2.8 Amps per Conductor at 25ºC |
