8451 22 AWG AUDIO CABLE, PAPER WRAP, BLACK

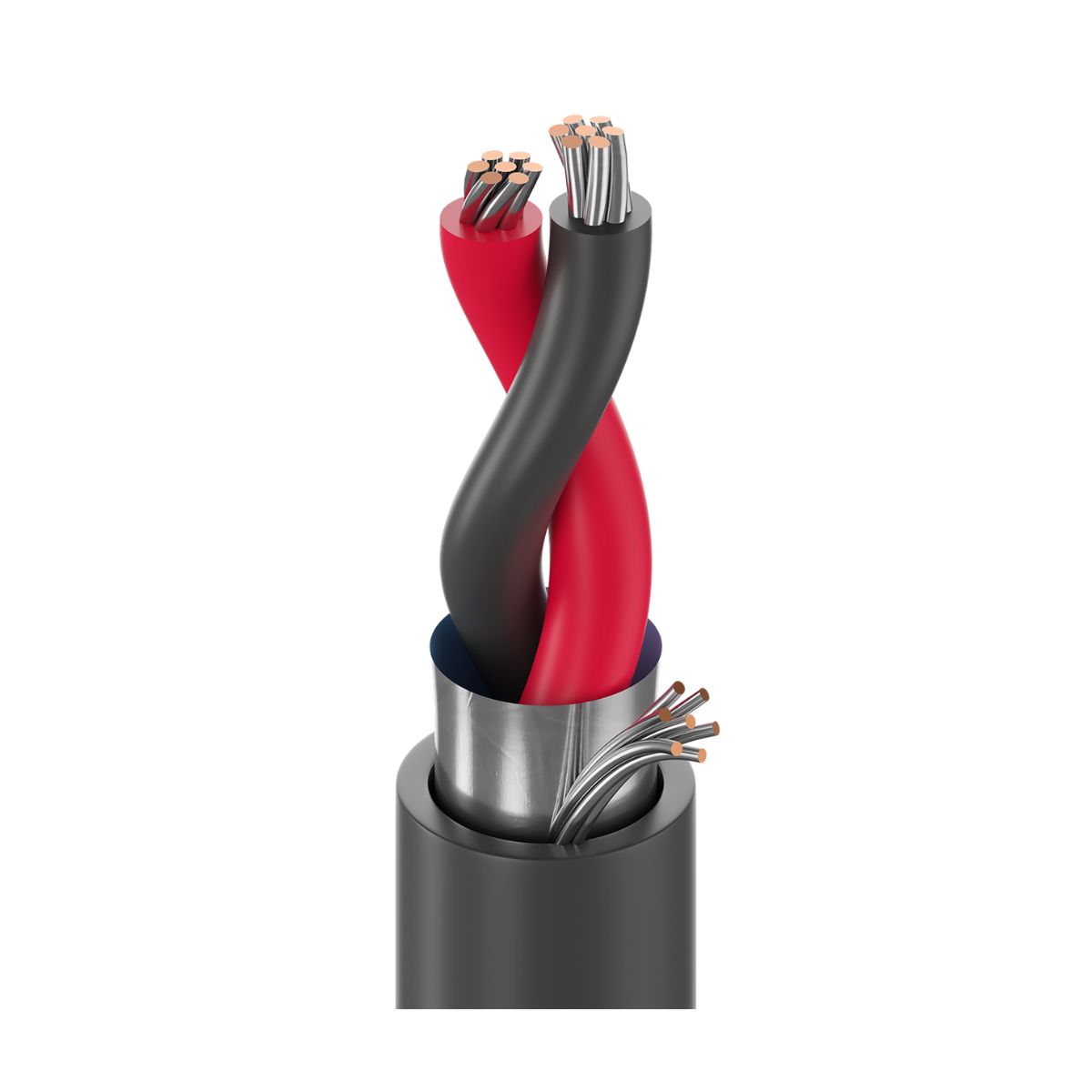

1 Pair 22 AWG stranded (7x30) TC conductors, polypropylene insulation, paper wrap, twisted pair, overall Beldfoil® shield (100% coverage), 22 AWG stranded TC drain wire, PVC jacket.
Conductor
| Element | No. of Elements | Size | Stranding | Material |
| Conductor(s) | 1 | 22 AWG | 7x30 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | PP - Polypropylene | 0.009 in (0.23 mm) | 0.046 in (1.2 mm) | Black & Red |
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Inductance Cond-Grnd | Nom. Delay | Nom. Inductance | Nom. Velocity of Prop. | Max. Current |
| Pair(s) | 17.8 Ohm/1000ft (58.4 Ohm/km) | 34 pF/ft (110 pF/m) | 67 pF/ft (220 pF/m) | 45 Ohm | 0.1725 µH/ft | 1.5 ns/ft | 0.17 µH/ft (0.56 µH/m) | 66% | 2.9 Amps per Conductor at 25ºC |
