8412 20 AWG,BRAID SHEILD, MIC CABLE

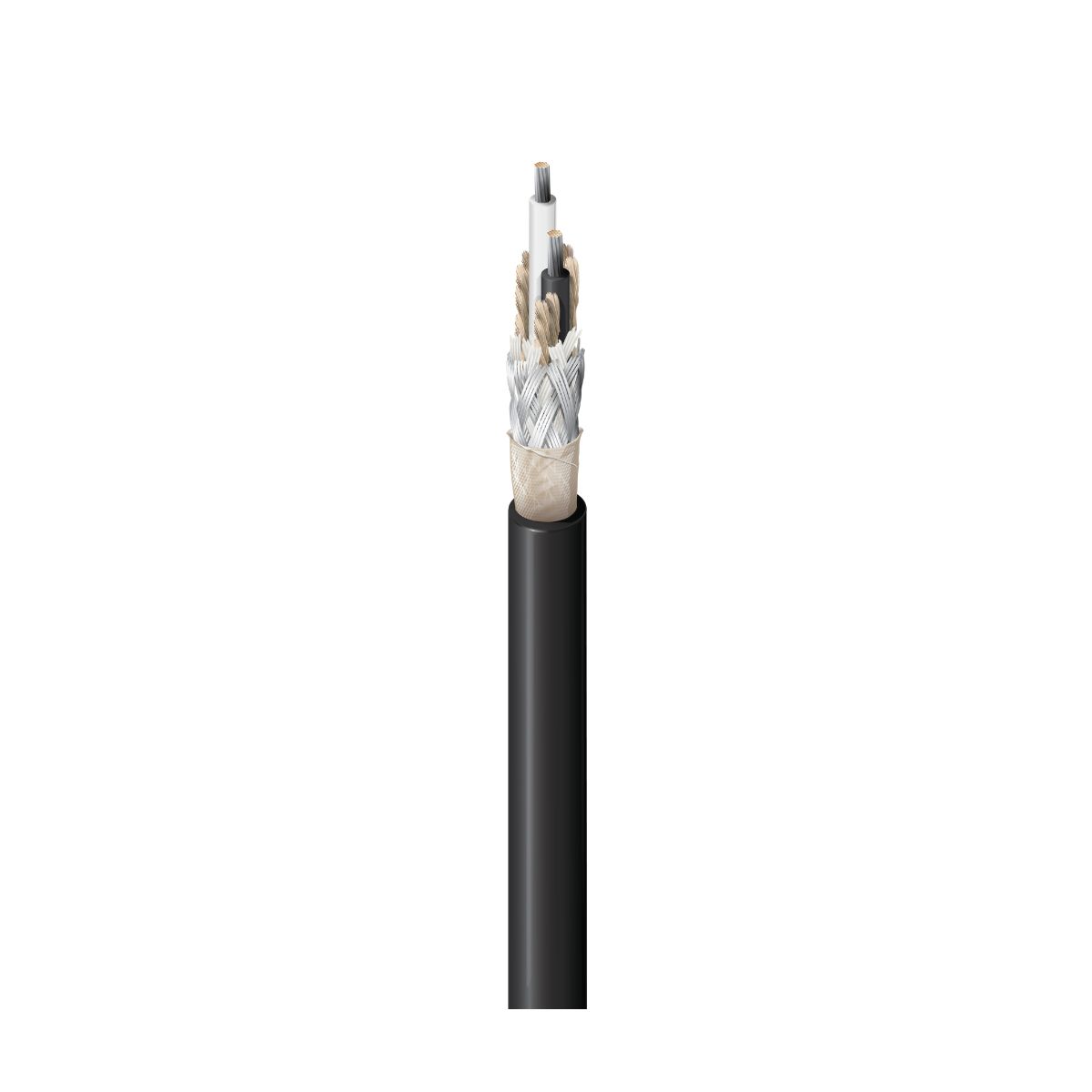

Microphone Cable, 2 Conductor 20 AWG (26 x 34) Tinned Copper (High conductivity), EPDM Insulation, Rayon® Braid, 85% Tinned Copper Braid Shield, Cotton Serve, EPDM Jacket
Conductor
| Element | No. of Elements | Size | Stranding | Material |
| Conductor(s) | 2 | 20 AWG | 26x34 | TC - Tinned Copper (High Conductivity) |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | EPDM - Ethylene Propylene Diene Monomer | 0.023 in (0.58 mm) | 0.083 in (2.1 mm) | White, Black |
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Inductance | Max. Current |
| Conductor(s | 10.6 Ohm/1000ft | 33 pF/ft (110 pF/m) | 58 pF/ft (190 pF/m) | 67 Ohm | 0.18 µH/ | 4 Amps per conductor @ 25°C |
