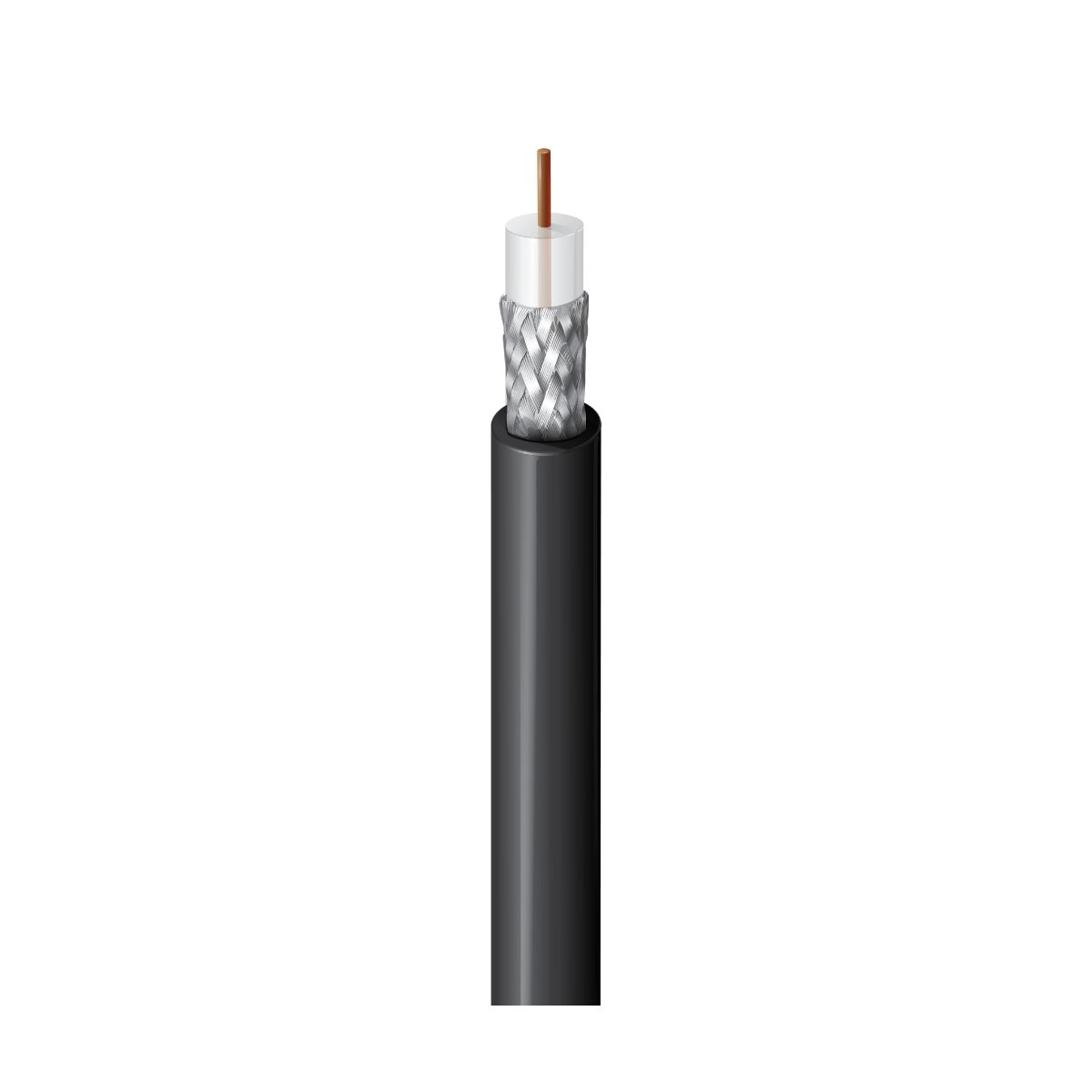

8240 RG58 ,50 OHMS CABLE
50 Ohm Wireless Transmission Coax, RG-58, 20 AWG Solid Bare Copper Conductor, PE Insulation, 95% Tinned Copper Braid Shield, PVC Jacket, CMX
Conductor
| Size | Stranding | Nom. Diameter | Material |
| 20 AWG | Solid | 0.033 in | BC - Bare Copper |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
| PE - Polyethylene | 0.116 in (2.95 mm) | White |
Electricals
| Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop |
| 9.4 Ohm/1000ft | 4.1 Ohm/1000ft (13 Ohm/km) | 28.5 pF/ft (93.5 pF/m) | 52 Ohm | 66% |
