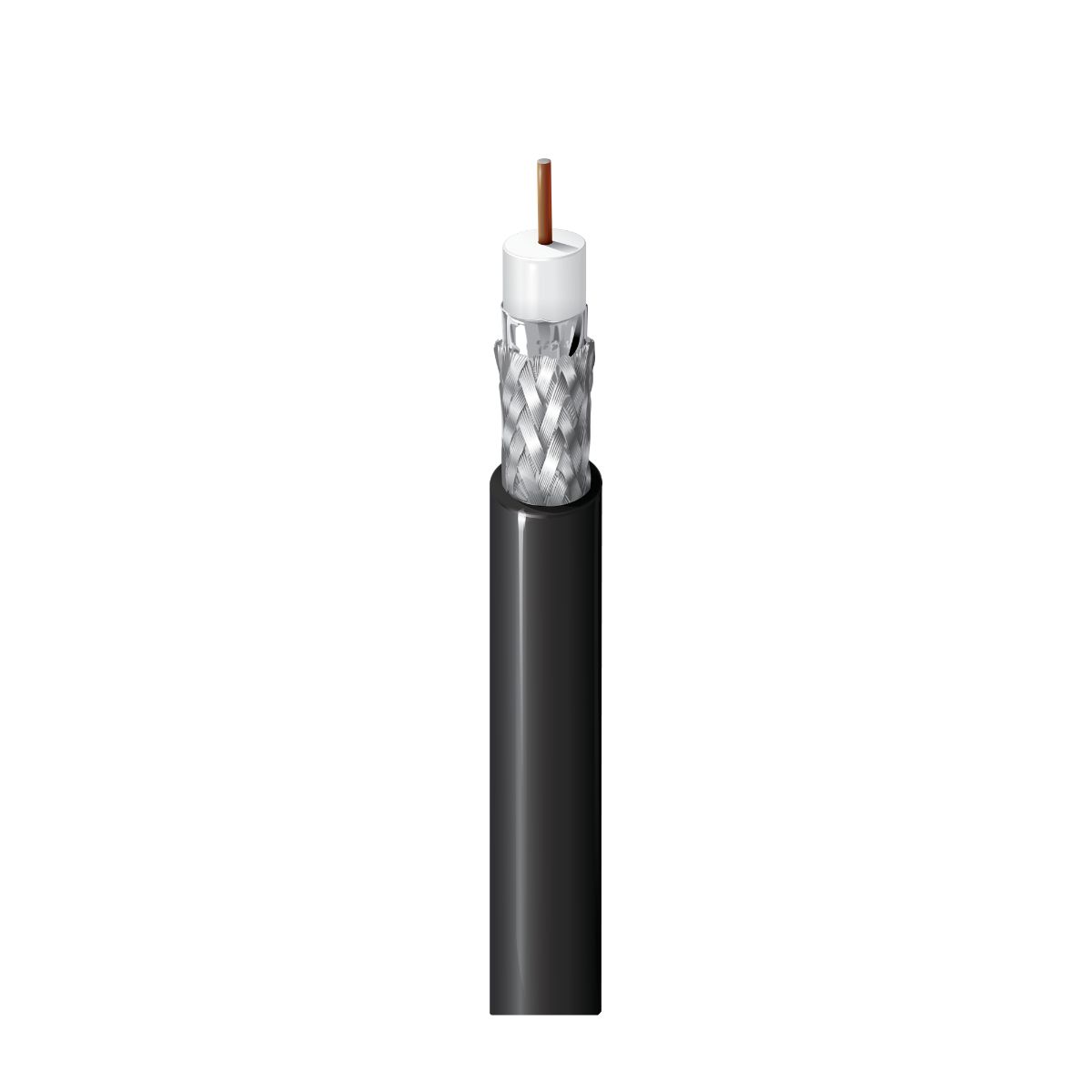

7810A RG8 ,10 AWG ,50 OHMS CABLE, LMR 400
50 Ohm Wireless Transmission Coax, RF400, RG8, 10 AWG Solid Bare Copper Covered Aluminum Conductor, PE Insulation, Duofoil® II + 95% Tinned Copper Braid Shield, PE Jacket
Conductor
| Size | Stranding | Nom. Diameter | Material |
| 10 AWG | Solid | 0.111 in | BCCA - Bare Copper Covered Aluminum |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
| PE - Polyethylene (Foam) | 0.285 in (7.24 mm) | White |
Electricals
| Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
| 1.3 Ohm/1000ft | 2.0 Ohm/1000ft (6.6 Ohm/km) | 23 pF/ft (75 pF/m) | 50 Ohm | 86% |
