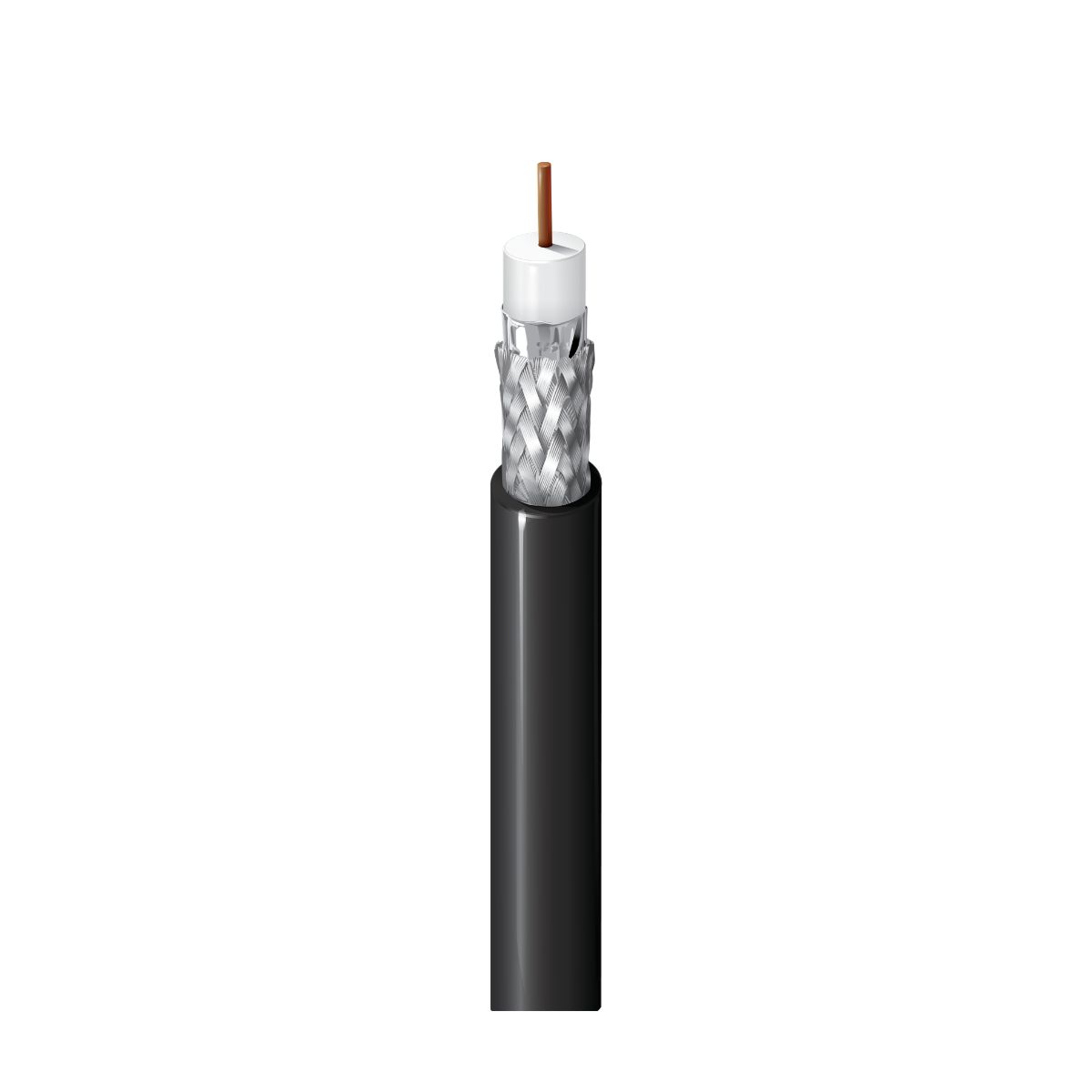

7808A RF240,RG58X , 50 OHMS CABLE
50 Ohm Wireless Transmission Coax, RF 240, RG58X, 15 AWG Solid Bare Copper Conductor, PE Insulation, Duofoil® II + 95% Tinned Copper Braid Shield, PE Jacket
Conductor
| Size | Stranding | Nom. Diameter | Material |
| 15 AWG | Solid | 0.057 in | BC - Bare Copper |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
| PE - Polyethylene (Foam) | 0.150 in (3.81 mm) | White |
Electricals
| Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
| 3.2 Ohm/1000ft | 2.8 Ohm/1000ft (9.2 Ohm/km) | 23 pF/ft (75 pF/m) | 50 Ohm | 86% |
