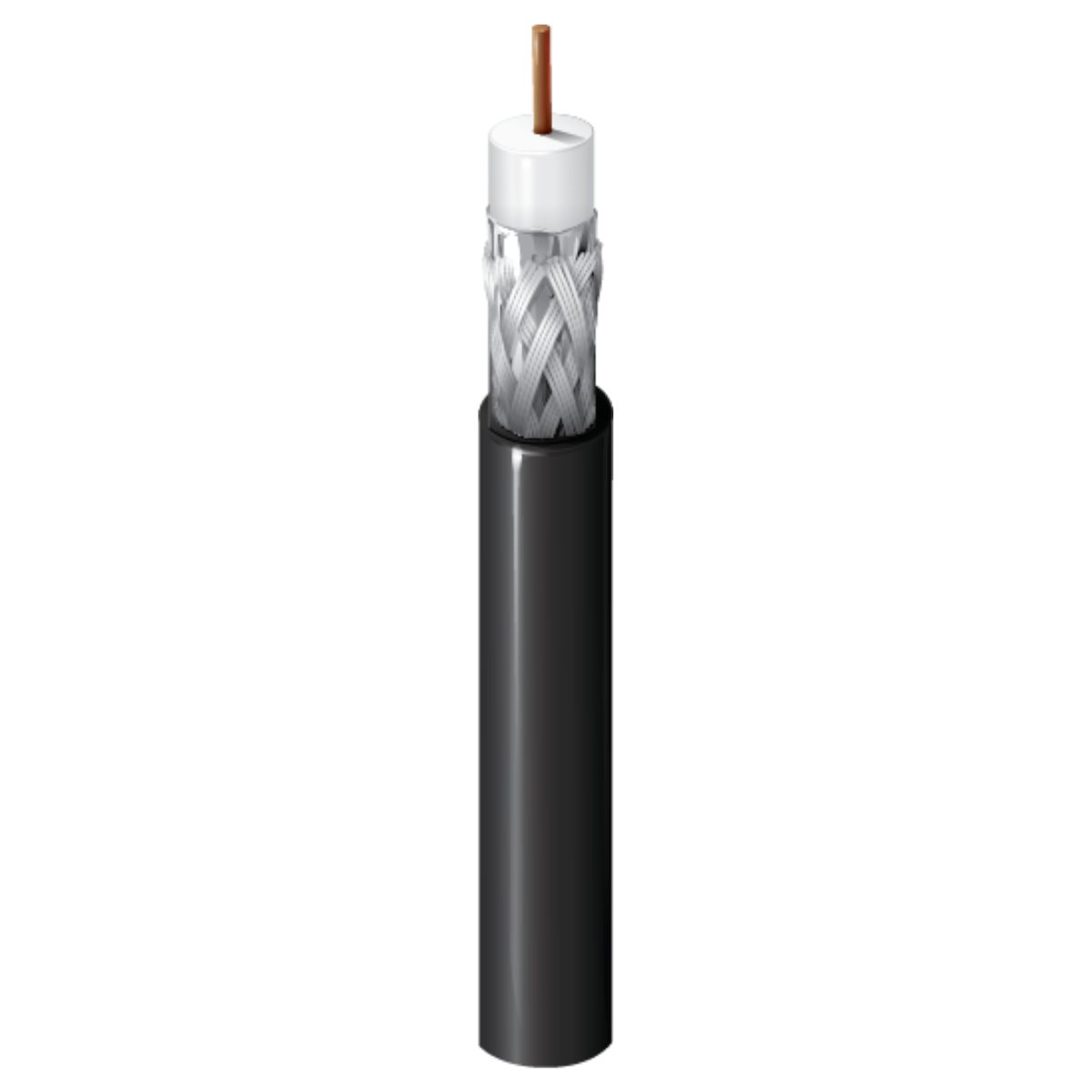

7807A RF 200, RG58, 50 OHMS CABLE
50 Ohm Wireless Transmission Coax, RF 200, RG58, 17 AWG Solid Bare Copper Conductor, PE Insulation, Duofoil® + 95% Tinned Copper Braid Shield, PE Jacket
Conductor
| Size | Stranding | Nom. Diameter | Material |
| 17 AWG | Solid | 0.044 in | BC - Bare Copper |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
| PE - Polyethylene (Foam) | 0.116 in (2.95 mm) | White |
Electricals
| Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop. |
| 5.4 Ohm/1000ft | 3.6 Ohm/1000ft (12 Ohm/km) | 23.5 pF/ft (77.1 pF/m) | 50 Ohm | 85% |
