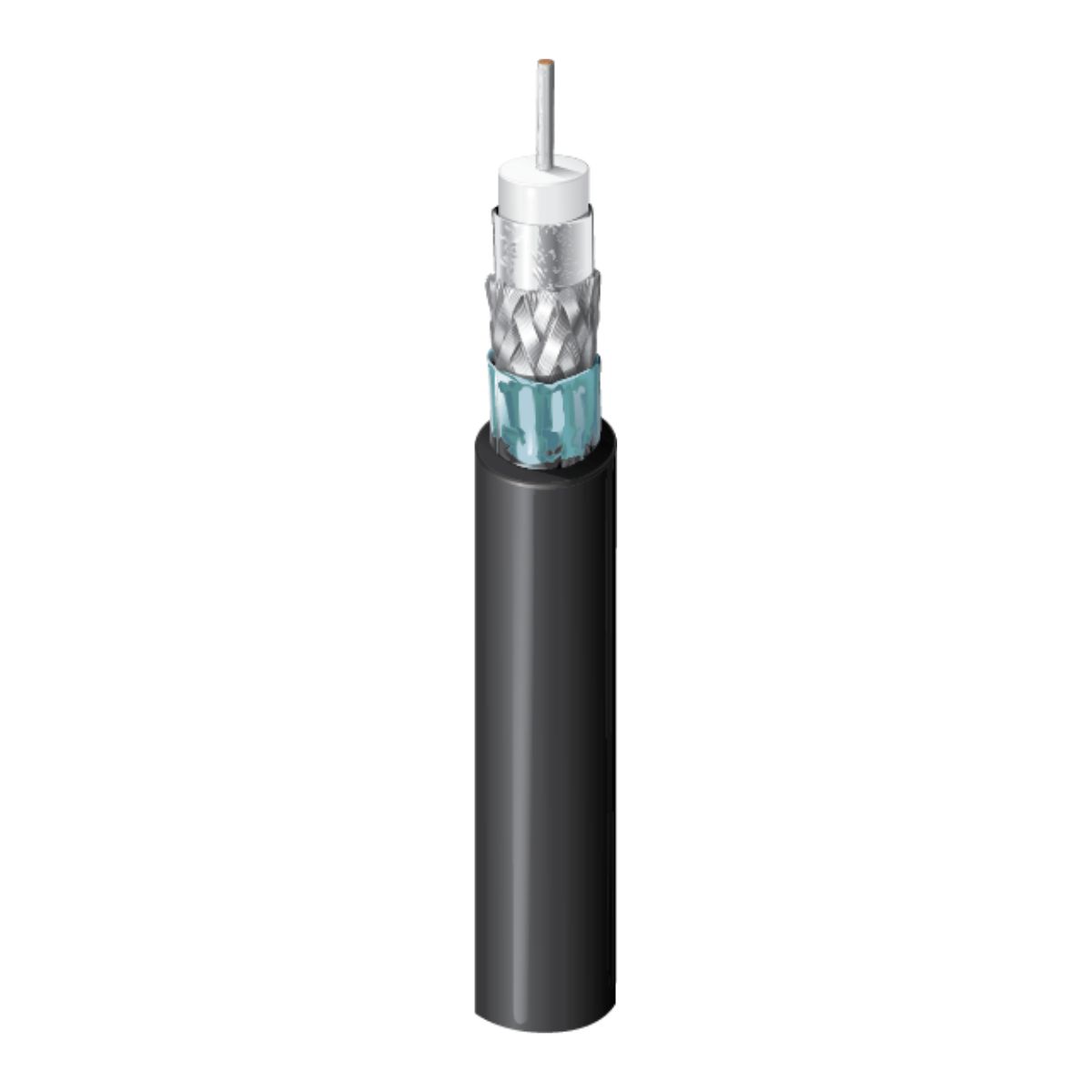

7806A RF 195,RG58 ,50 OHMS CABLE
50 Ohm Wireless Transmission Coax, RG-58, 20 AWG (19x33) Tinned Copper Conductor, PE Insulation, 95% Tinned Copper Braid Shield, PVC Jacket
Conductor
| Size | Stranding | Nom. Diameter | Material |
| 20 AWG | 19x33 | 0.035 in | TC - Tinned Copper |
Insulation
| Material | Nom. Insulation Diameter | Color Code |
| PE - Polyethylene | 0.117 in (2.97 mm) | White |
Electricals
| Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop |
| 9.7 Ohm/1000ft (32 Ohm/km) | 3.8 Ohm/1000ft (12 Ohm/km) | 30.8 pF/ft (101 pF/m) | 50 Ohm | 66% |
