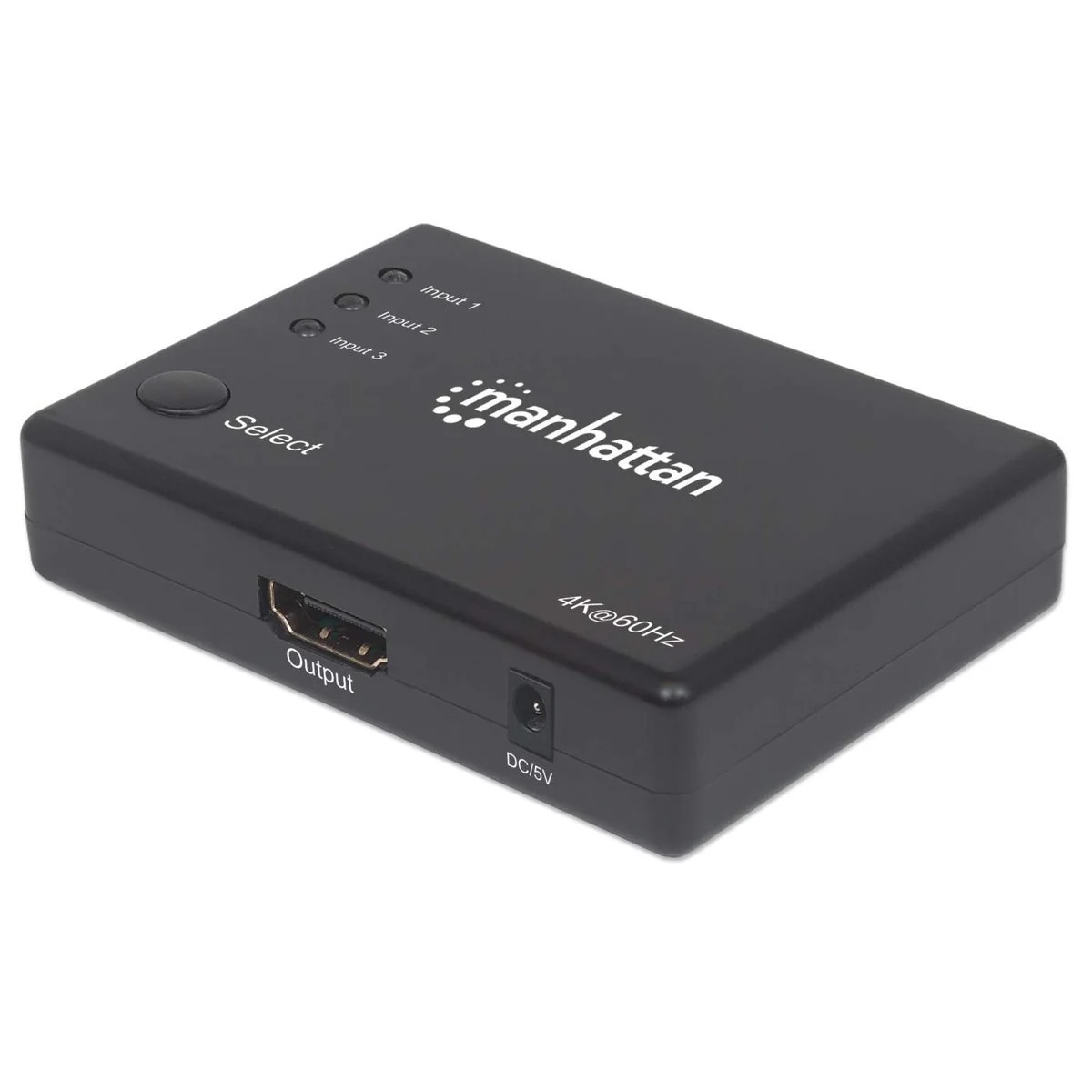

4K Compact 3-Port HDMI Switch (207676)

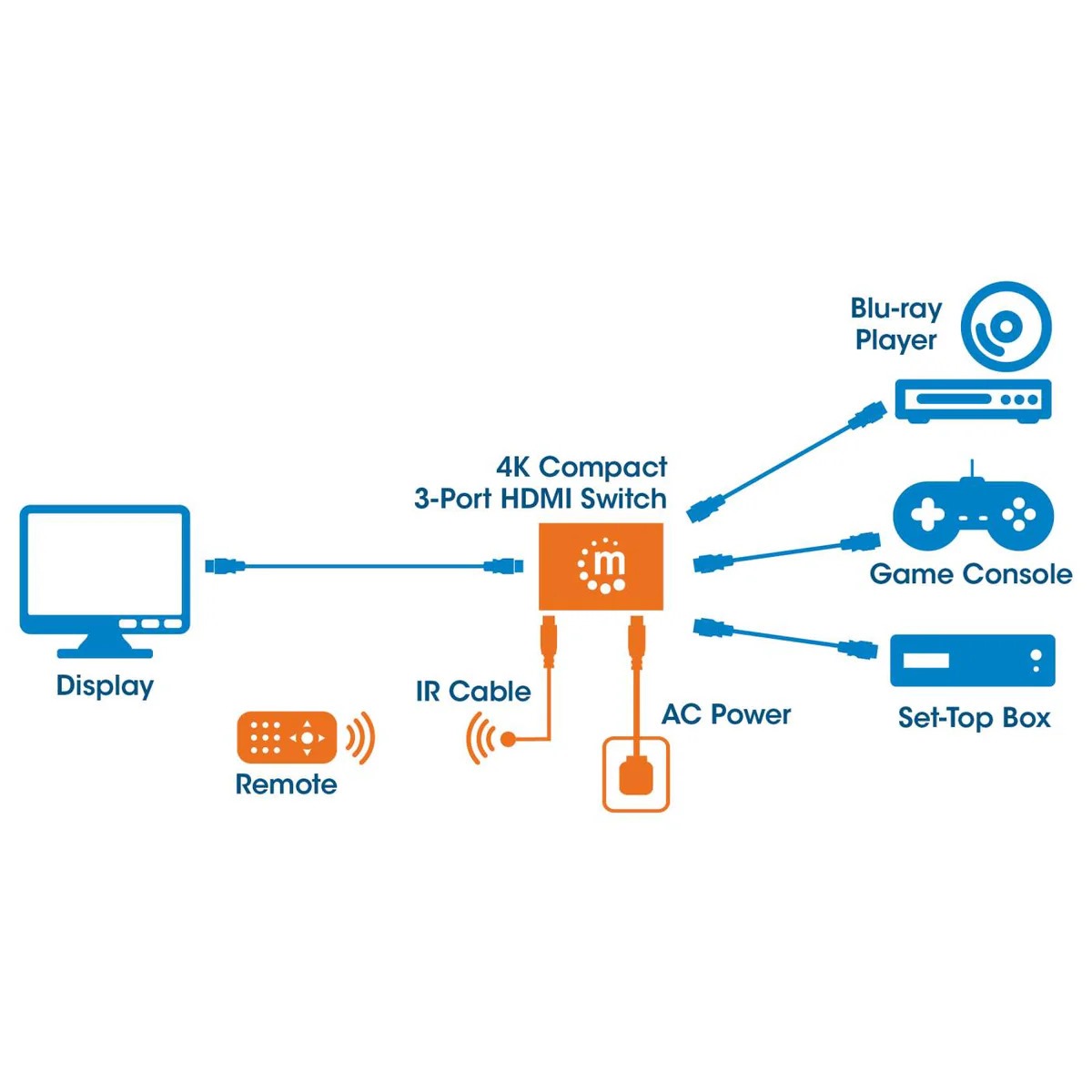

The Manhattan 4K Compact 3-Port HDMI Switch lets you connect three UHD video sources—such as gaming consoles, Blu-ray players, satellite receivers, digital recorders, and set-top boxes—to a single 4K UHD display.

Contact to Seller
  • Connects up to three Ultra-High-Definition (UHD) video sources to a single HDMI display
  • Supports source switching via remote control or manual switching with the push of a button
  • Supports automatic switching (when a signal is detected), manual switching (between sources with the push of a button), and remote switching (with IR remote control)
  • 4K@60Hz resolution, full 3D video and Deep Color
  • Supports video amplifier bandwidth up to 600 MHz, 6 Gbps per channel (18 Gbps total) for 4Kx2K display
  • Supports 36-bit Deep Color (12 bits per channel), xvYCC (x.vColor), and 12-bit YCbCr 4:2:0
  • Supports compressed DTS-HD Master Audio and 7.1 surround sound, as well as Dolby TrueHD and uncompressed LPCM, 32-channel audio
  • HDCP compliant
  • Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers, and more
  • Plug and play
Download Product catalog
HDCP 2.2
DVI 1.0
CTS 1.4a
CE
FCC
RoHS2
General
Source-to-splitter range: up to 15 m (49 ft.)
Splitter-to-display range: up to 15 m (49 ft.)
Power: 5 VDC / 1 A
Remote battery (included): CR2025 3 V lithium cell
Connections
Three HDMI female, 19-pin (input)
One HDMI female, 19-pin (output)
One 3.5 mm IR female (input)
One 5 VDC power female, OD 3.5 mm / ID 1.3 mm (input)
