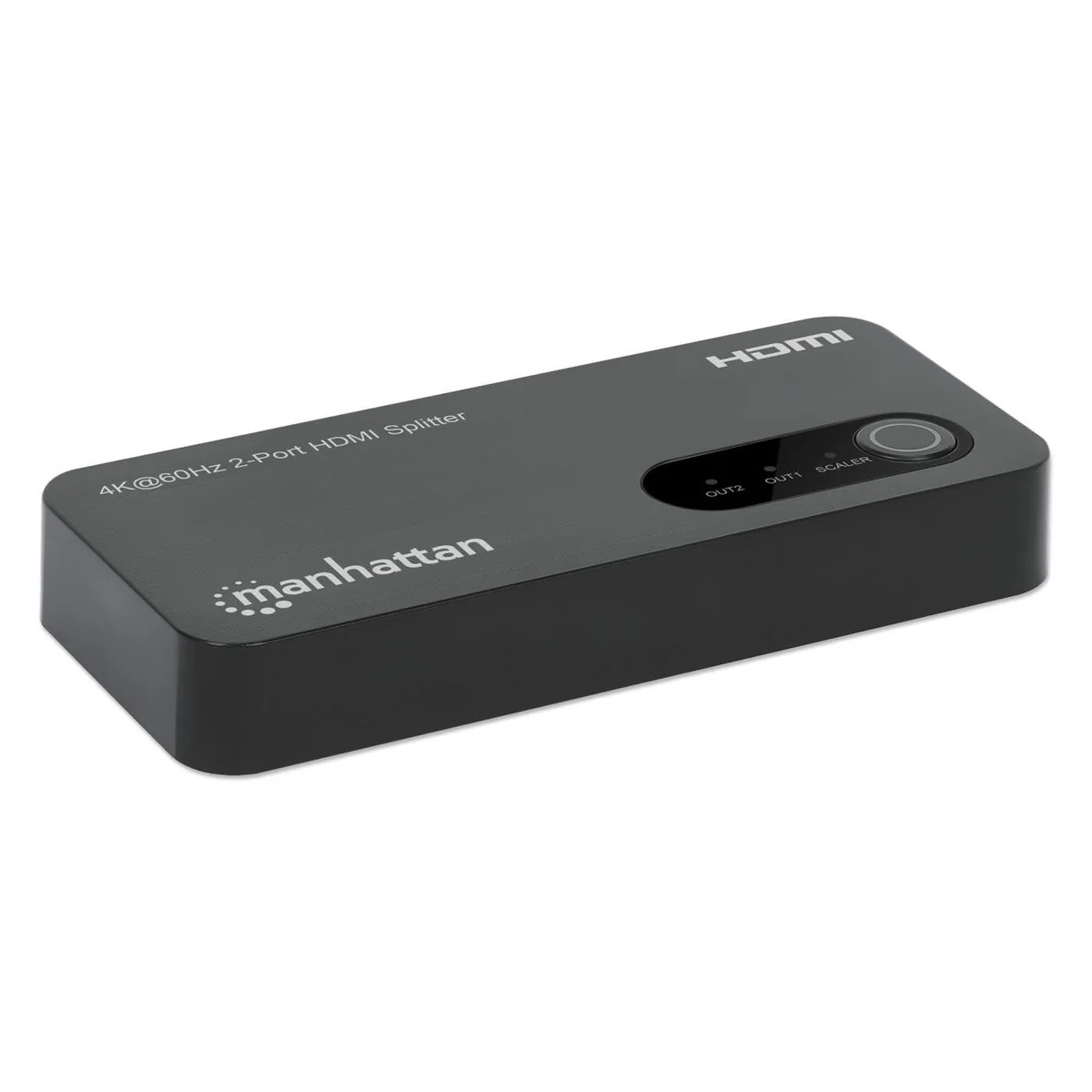

4K@60Hz 2-Port HDMI Splitter with Downscaling (207614)
Ideal for trade shows, classrooms, video conferencing, presentations and retail applications, this 1x2 Splitter is a great choice for splitting and distributing a synchronous signal to two displays when source equipment is remotely stored in a secured room or cabinet. Cascade multiple units up to three levels to output HDMI video/audio to additional displays in widely distributed applications. A smart EDID management switch on the unit can downscale a 4K input signal to Full HD (or lower), making installations with older displays hassle-free.

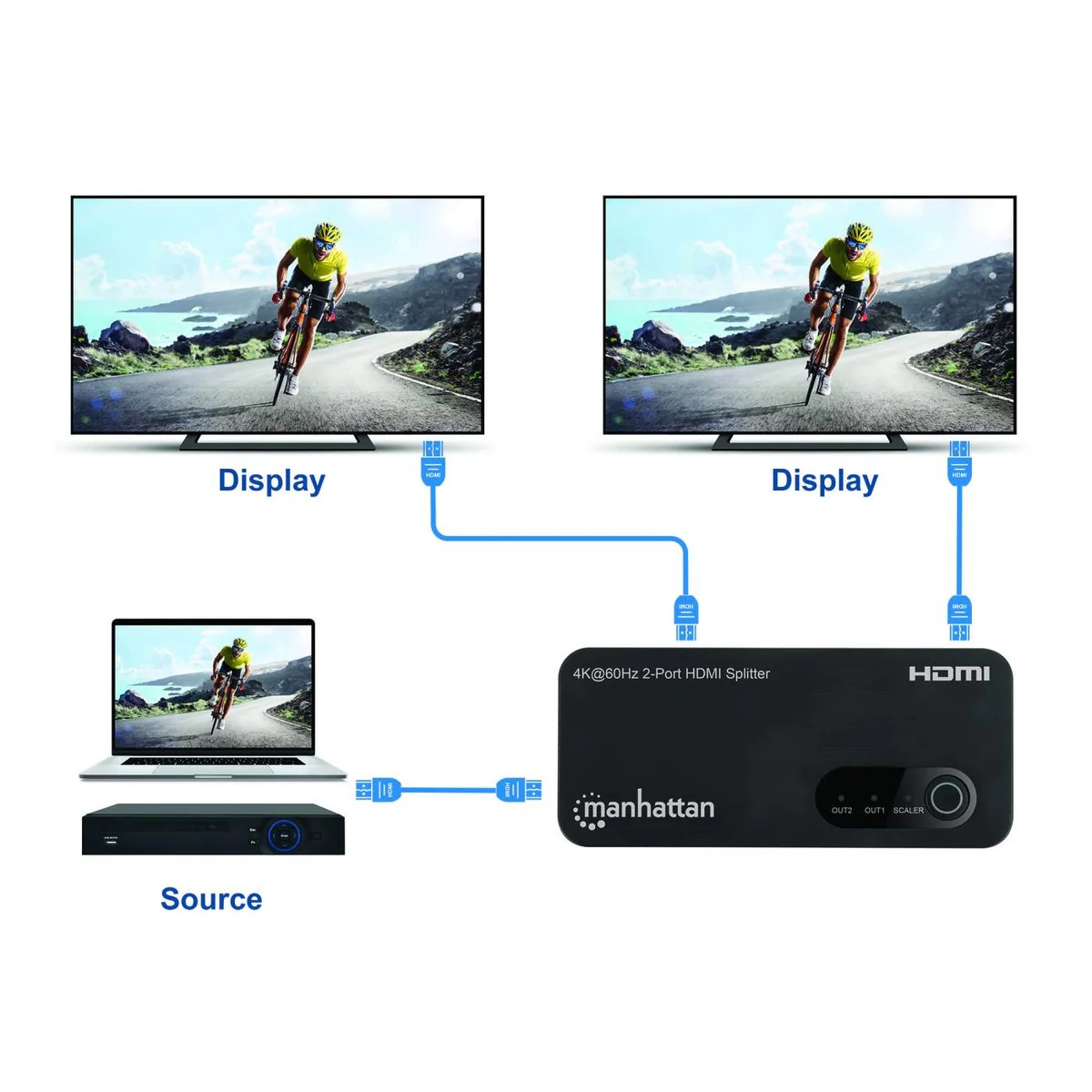

- Distributes a single HDMI audio/video source signal to two HDMI displays
- Resolutions up to Ultra-High-Definition (UHD) 4K@60Hz (3840×2160)
- Downscale button to adjust a 4K input signal into 1080p for hassle-free setups of older and newer displays
- High Dynamic Range (HDR) for superior contrast and brilliant colors
- 4:4:4 chroma subsampling
- Up to 18 Gbps total bandwidth with 6 Gbps per channel at 600 MHz
- Fully backward compatible with 4K@30Hz and 1080p displays
- EDID switch for automatic image optimization, ensuring settings like native resolution and refresh rate are configured properly
- Up to three splitters may be cascaded to support four 4K displays
|
HDMI 2.0 |
|
Supported resolutions: 480p/576i/720p/1080i/1080p/4K@30Hz/4K@60Hz |
|
Max. video bandwidth: 18 Gbps / 600 MHz |
|
Power consumption: 5.0 W (max.) |
| Daisy-chainable: up to three splitters/levels (5 m / 16 ft. maximum cable length between each unit) |
|

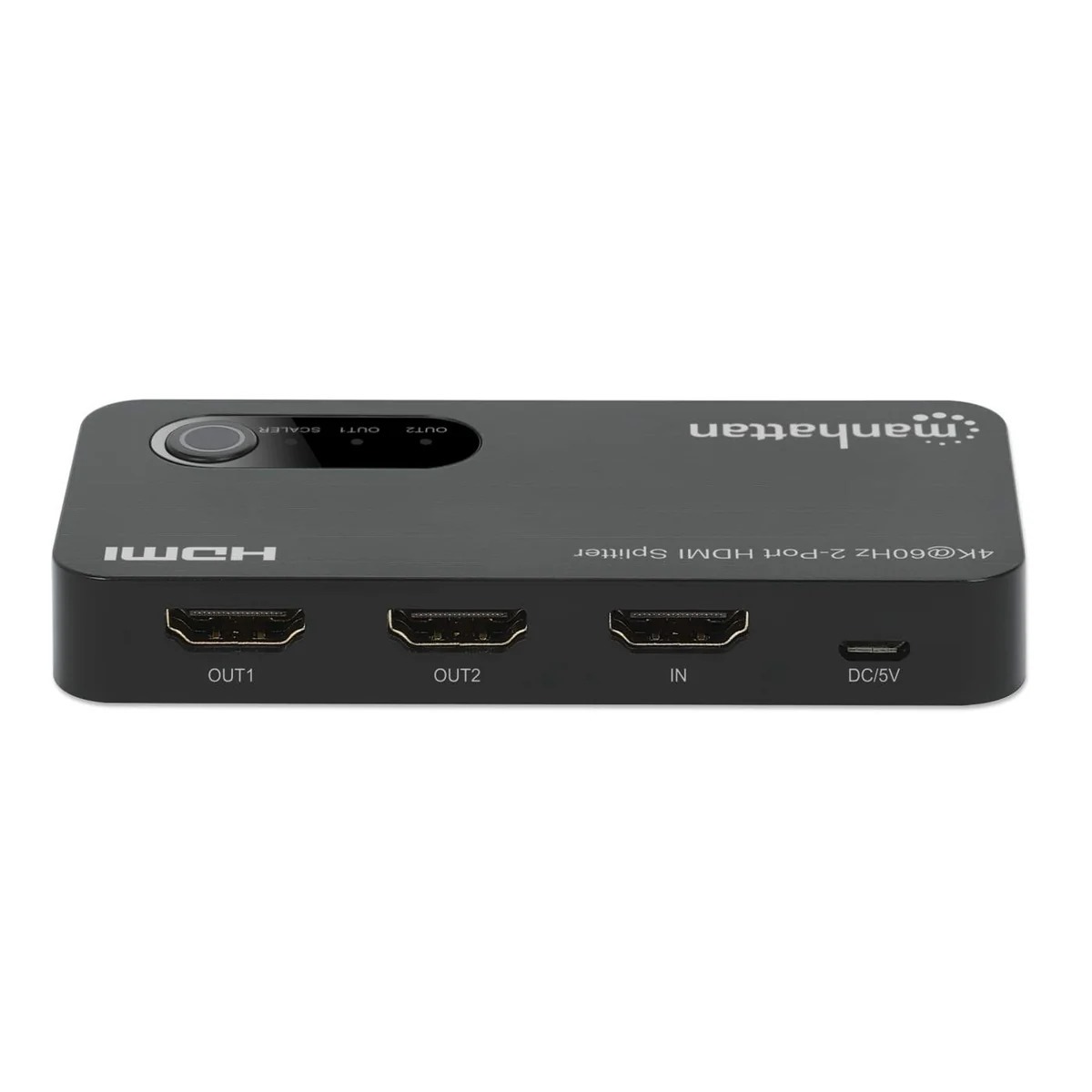

Three HDMI females 19-pin (one input, two outputs) |
