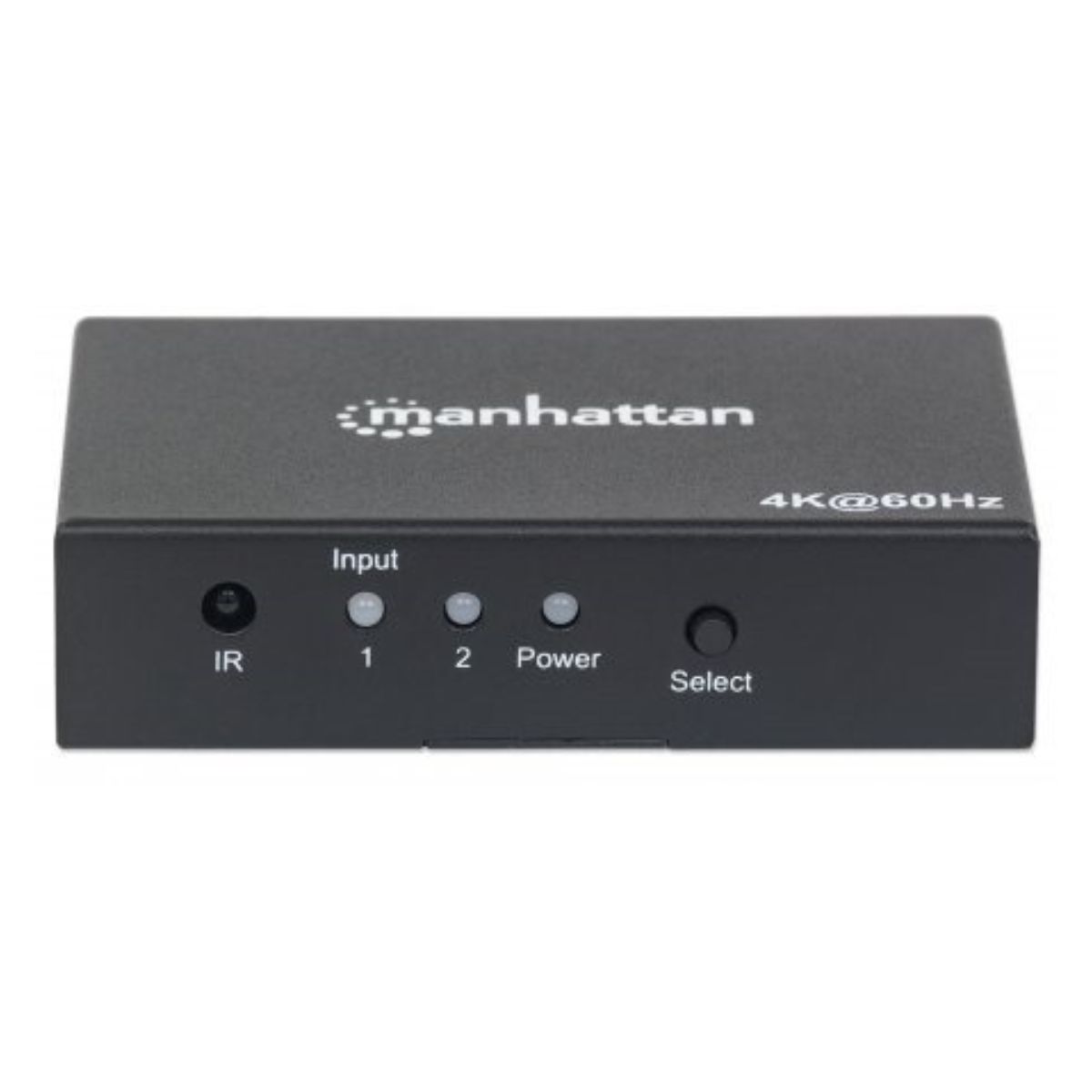

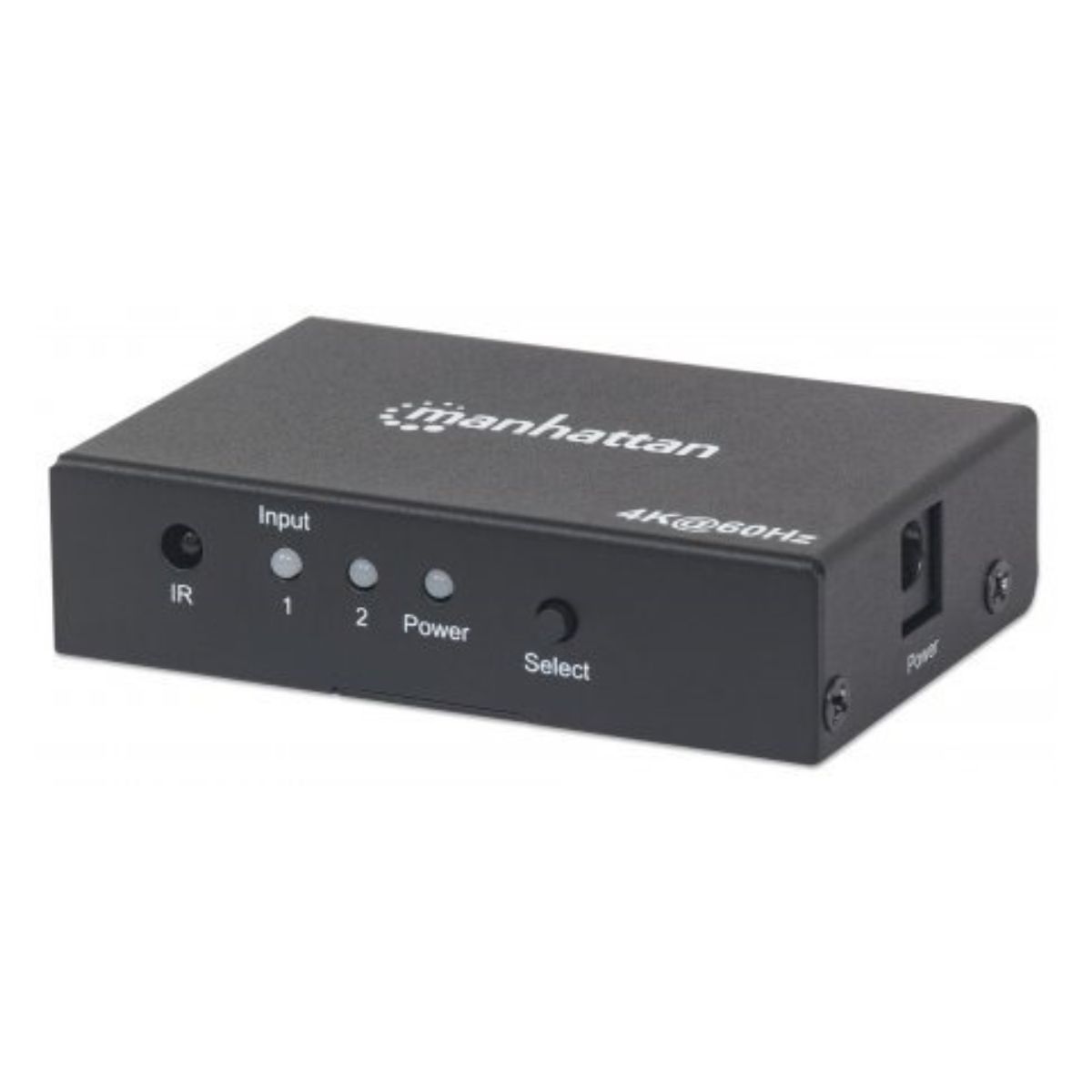

4K 2-Port HDMI Switch (207867)

The Manhattan 4K 2-Port HDMI Switch lets you connect two HDMI video sources—such as gaming consoles, Blu-ray players, satellite receivers, digital recorders, and set-top boxes—to a single Ultra HD (UHD) display.

Contact to Seller
  • Connects up to two Ultra-High-Definition (UHD) video sources to a single HDMI display
  • Supports automatic switching (when a UHD signal is detected), manual switching (between sources with the push of a button), and remote switching (with IR remote control)
  • 4K@60Hz resolution, full 3D video, Deep Color and High Dynamic Range (HDR)
  • Supports video amplifier bandwidth up to 600 MHz and 6.0 Gbps per channel (18 Gbps total) for 4Kx2K displays
  • Supports 36-bit Deep Color (12-bits per channel), 4:4:4 chroma subsampling and YCbCr 4:2:0 color formatting
  • Supports compressed DTS-HD Master Audio, 7.1 surround sound, Dolby TrueHD and uncompressed LPCM 8-channel audio
  • Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers, and more
  • HDCP compliant
  • Plug and play
  • Plug and play
Download Product catalog
HDCP 2.2 / 1.4
CE
FCC
RoHS2
General
Source-to-switch range: up to 10 m (33 ft.)
Splitter-to-display range: up to 10 m (33 ft.)
AC power adapter, 5 VDC / 1 A: 1.2 m (4 ft.)
Power consumption: 2 W
Remote battery (included): CR2025 3 V lithium cell
Connections

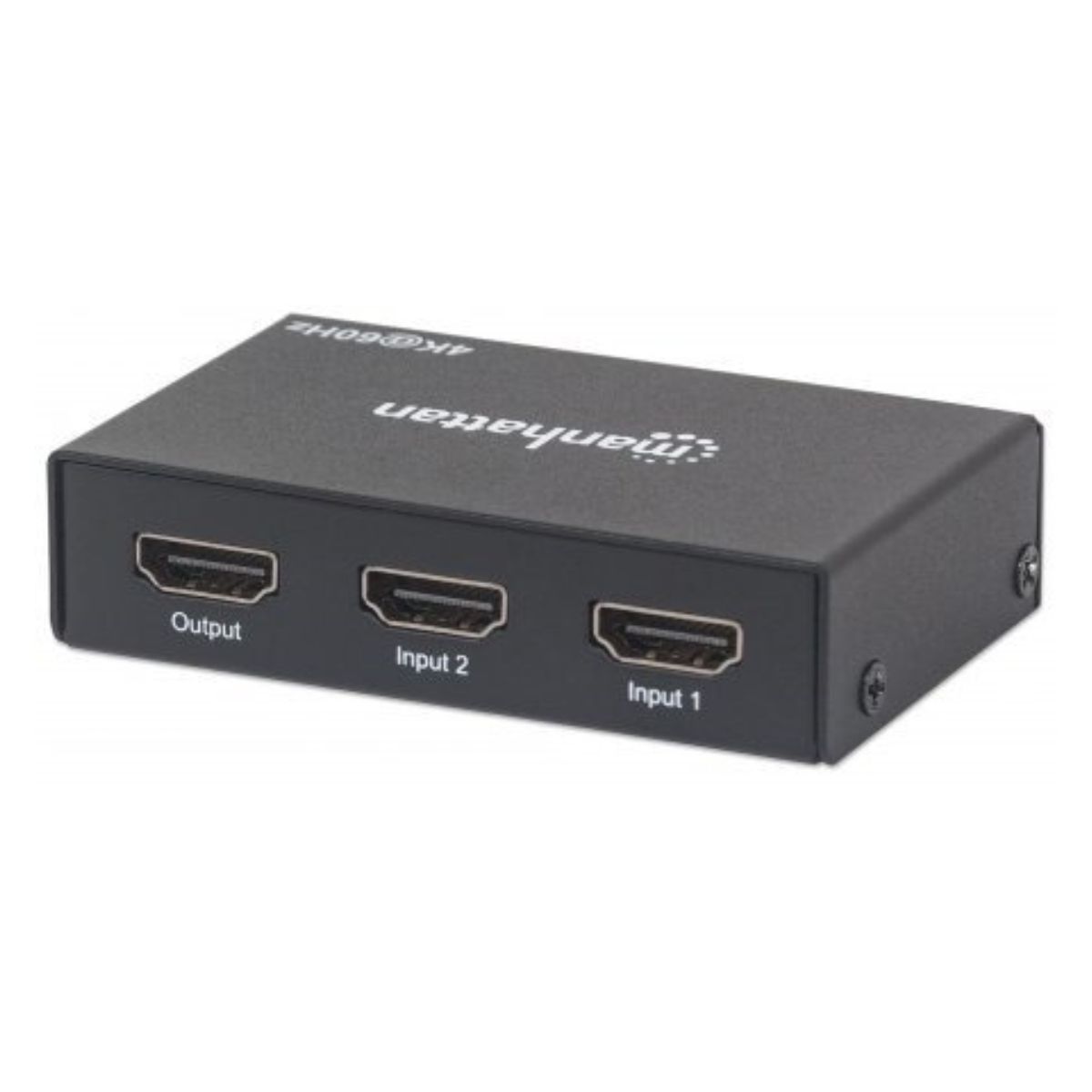

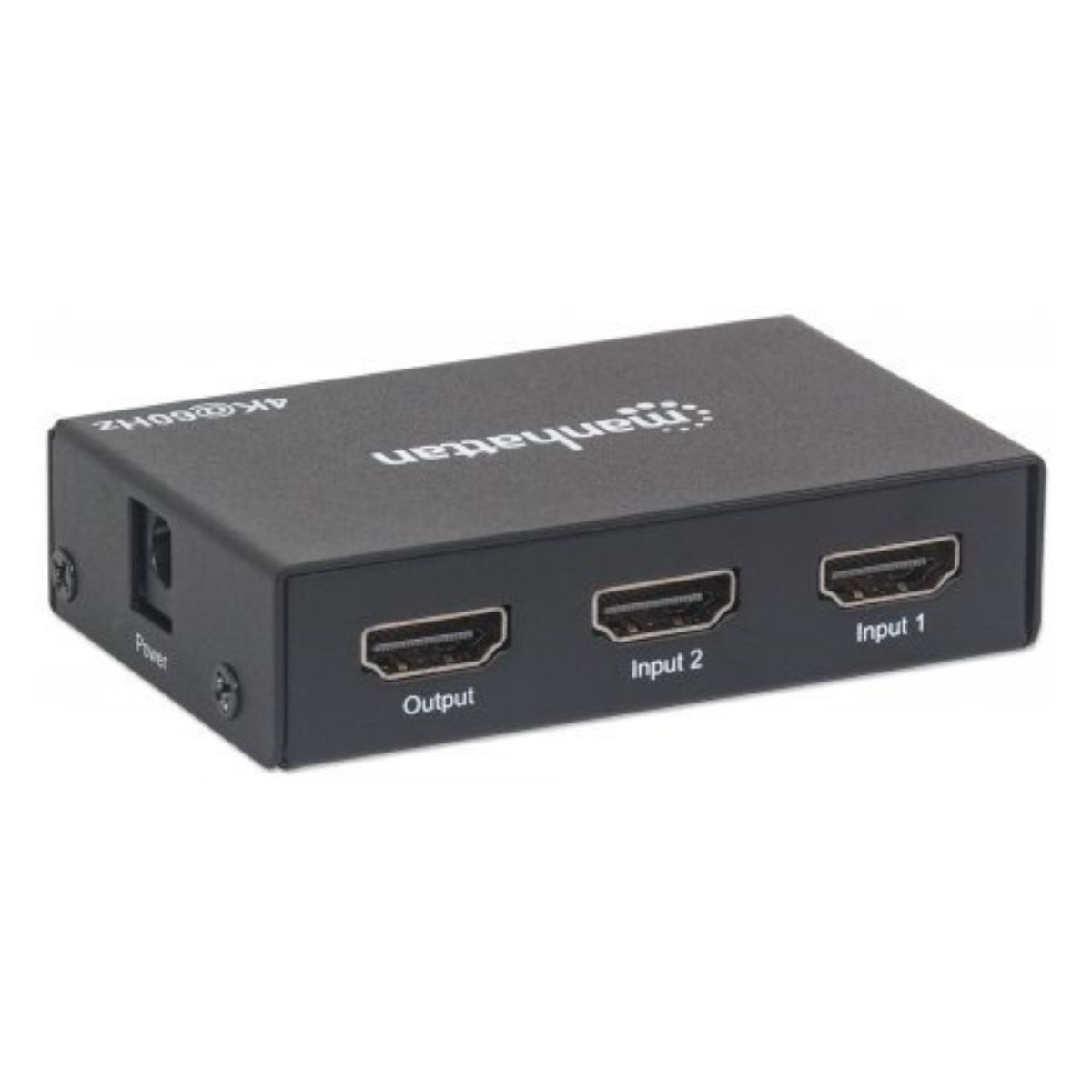

One HDMI female, 19-pin (output)
Two HDMI female, 19-pin (input)
5 VDC power female, OD 3.5 mm / ID 1.3 mm (input)
