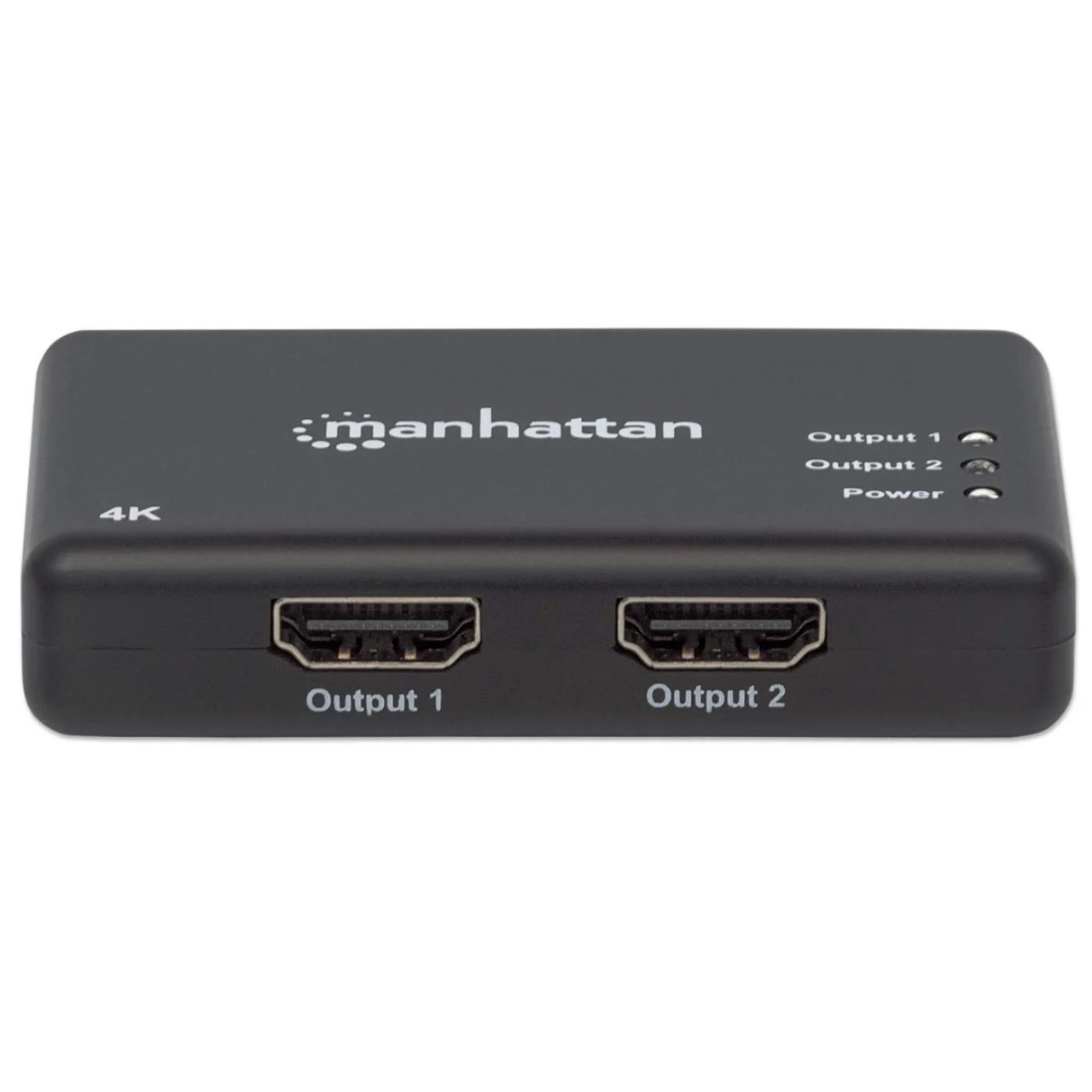

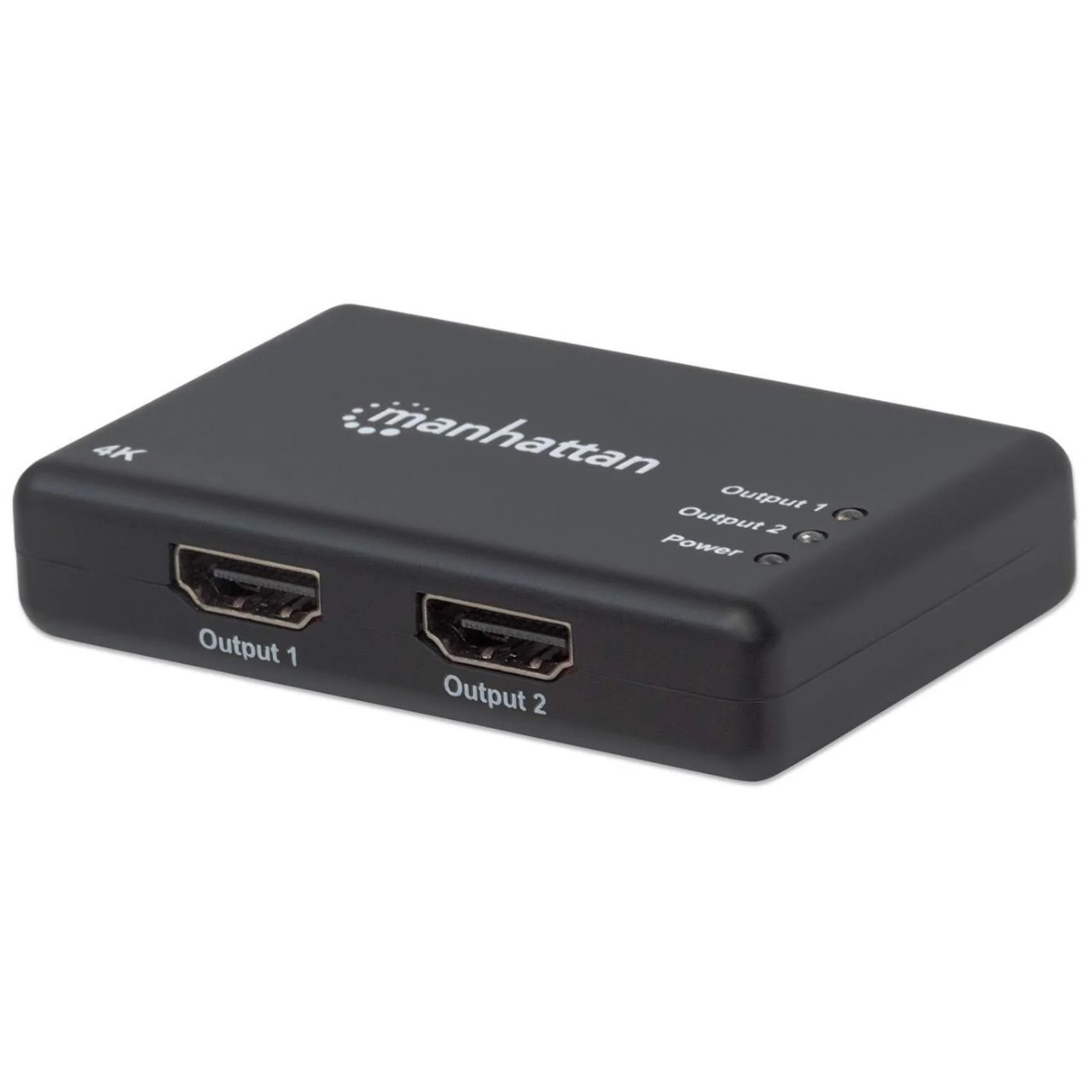

4K 2-Port HDMI Splitter (207669)

Ideal for trade shows, classrooms, video conferencing, home theater, presentations and retail applications, the Manhattan 4K HDMI Splitter features a built-in booster for added signal strength. It’s a good choice for splitting and distributing a synchronous signal to multiple 4K HDMI displays when source equipment is remotely stored in a secured room or cabinet. Cascade multiple units up to three levels to output HDMI video/audio on additional displays in widely distributed applications.

Contact to Seller
  • 4K@30Hz resolution, full 3D video and Deep Color
  • Supports video amplifier bandwidth up to 340 MHz, 3.4 Gbps per channel (10.2 Gbps total) for 4Kx2K displays
  • Supports compressed DTS-HD Master Audio and 7.1 surround sound, as well as Dolby TrueHD and uncompressed LPCM 8-channel audio
  • Supports 48-bit Deep Color (12-bits per channel) and xvYCC (x.vColor)
  • Supports LPCM, DTS Digital, DTS-HD Master Audio, and Dolby TrueHD audio
  • HDCP compliant
  • AC powered with Plug and Play installation; no special setup or remote required
  • Up to three splitters may be cascaded to support four 4K displays
Download Product catalog
Source-to-splitter range: up to 15 m (49 ft.)
Splitter-to-display range: up to 15 m (49 ft.)
Power: 5 VDC; AC power adapter, 0.9 m (2.9 ft.)

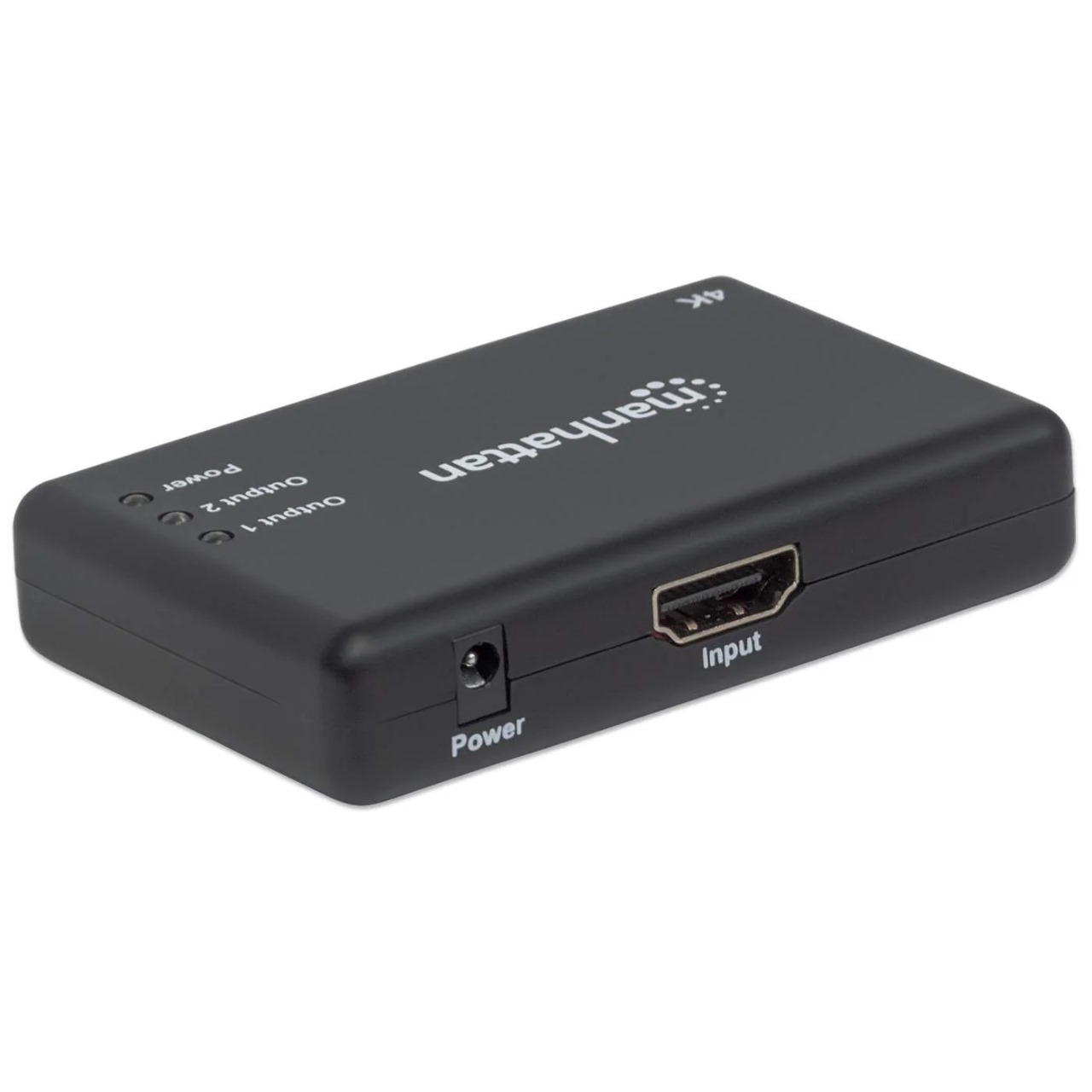

One HDMI port (female), 19-pin (input)
Two HDMI ports (female), 19-pin (output)
One DC power female, OD 3.5 mm / ID 1.3 mm (input)
