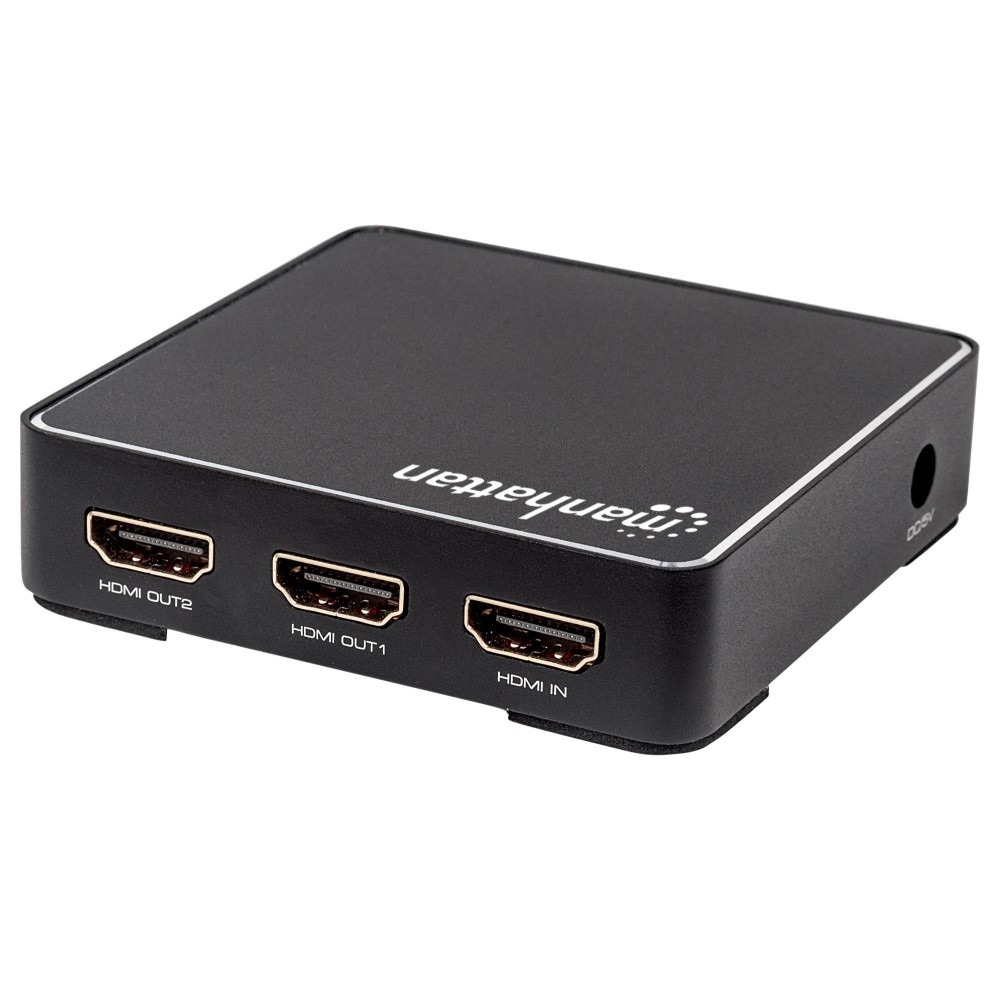

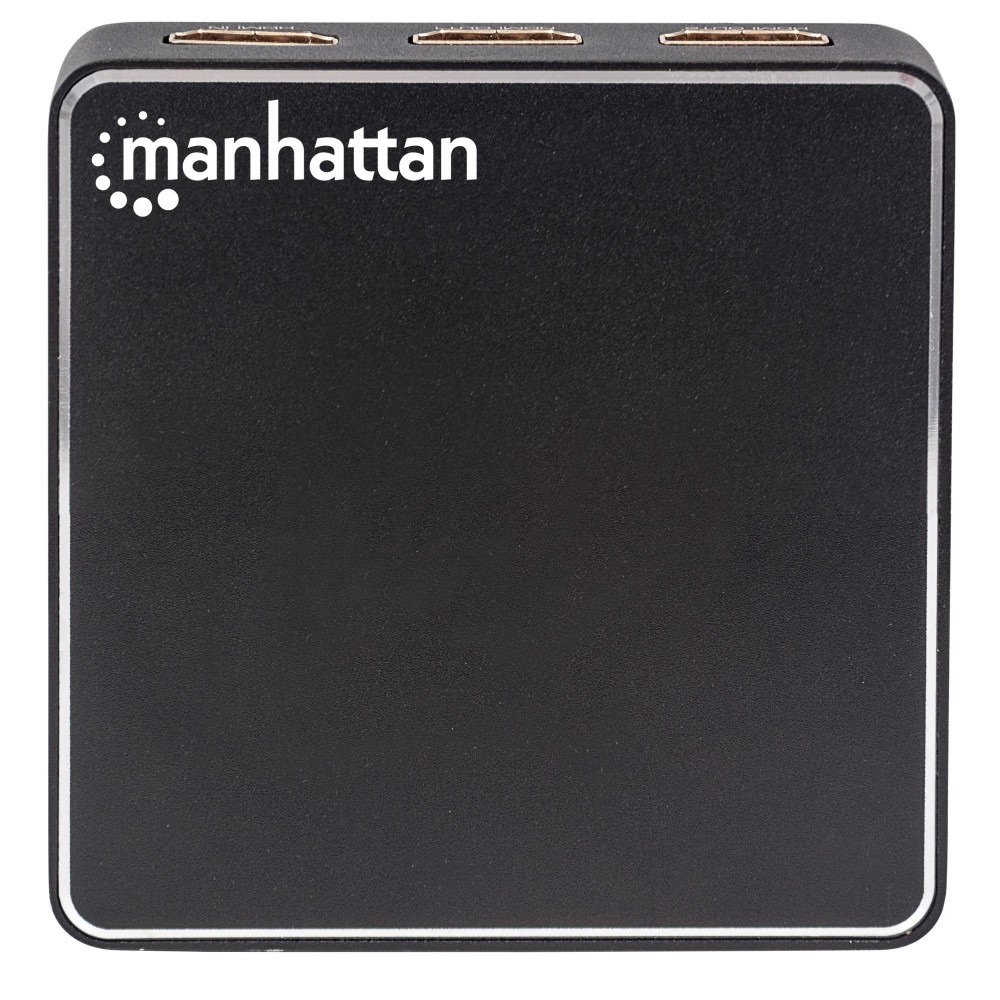

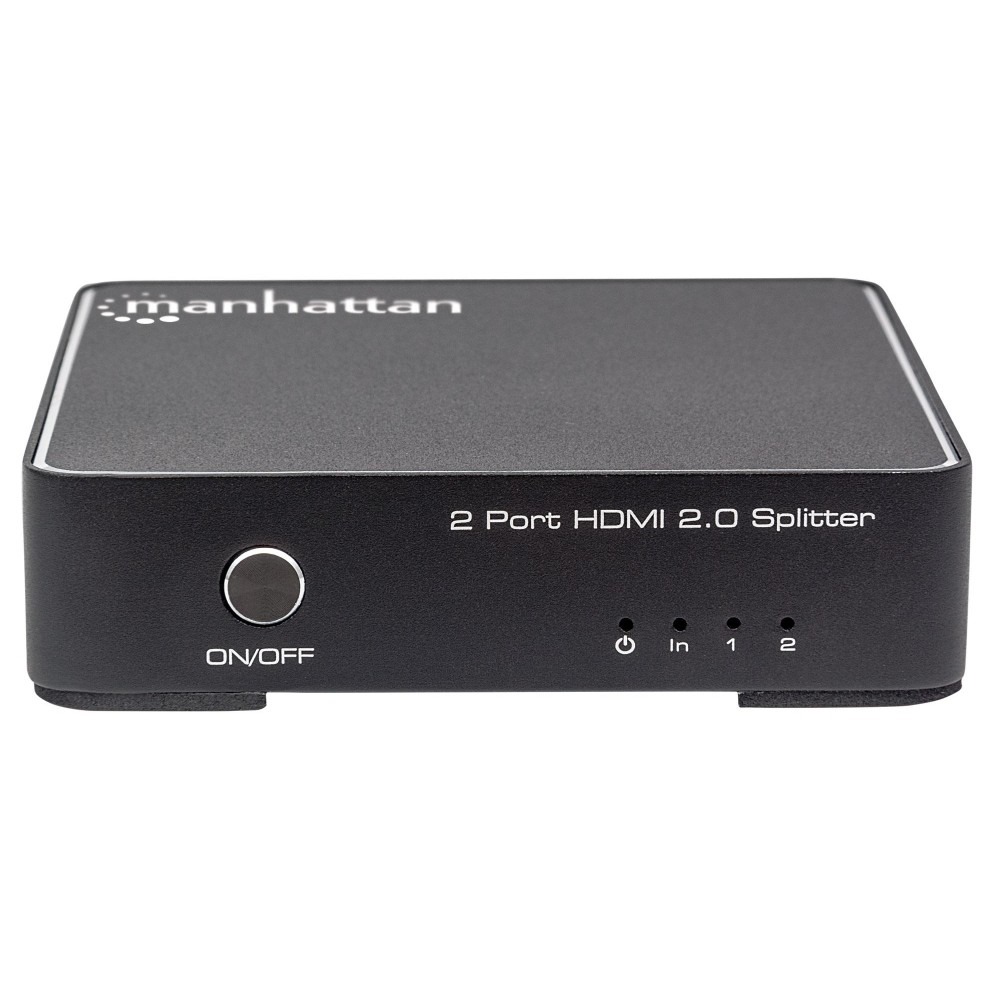

4K 2-Port HDMI Splitter, 1 In - 2 Out (207591)

Full compliance with HDMI, HDCP 2.2, and DVI 1.0 ensures that the Manhattan 4K 2-Port HDMI Splitter can provide long service and reliable performance. Quickly connect HDMI cables (not included) and the 5 V / 1 A power adapter without software/hardware configuration or complicated settings to complete This affordable Ultra-High-Definition, 4K HDMI solution.

Contact to Seller
  • Duplicates an Ultra-High-Definition (UHD) digital audio/video signal for up to two UHD HDMI displays
  • 4K@60Hz resolution, full 3D video and Deep Color
  • Supports video amplifier bandwidth up to 300 MHz, 3 Gbps per channel (10.2 Gbps total) for 4Kx2K displays
  • Supports compressed DTS-HD Master Audio, uncompressed LPCM 8-channel (7.1 surround sound) audio, and Dolby TrueHD, as well as 32-channel audio
  • Supports 48-bit Deep Color (12-bits per channel), xvYCC (x.vColor), Rec. 2020 color space, and 21:9 aspect ratio
  • Supports LPCM, DTS Digital, DTS-HD Master Audio, Dolby TrueHD audio, four audio streams, and 32-channel audio
Download Product catalog
One HDMI female (input
Two HDMI female (output)
One 5 V / 1 A DC power female (input)
Input video signal: 0.5 – 1.0 V p-p
Maximum single-link range: 10.2 Gbps, 4096x2160 at 60 Hz resolution
Output video: HDCP 2.2, DVI 1.0
