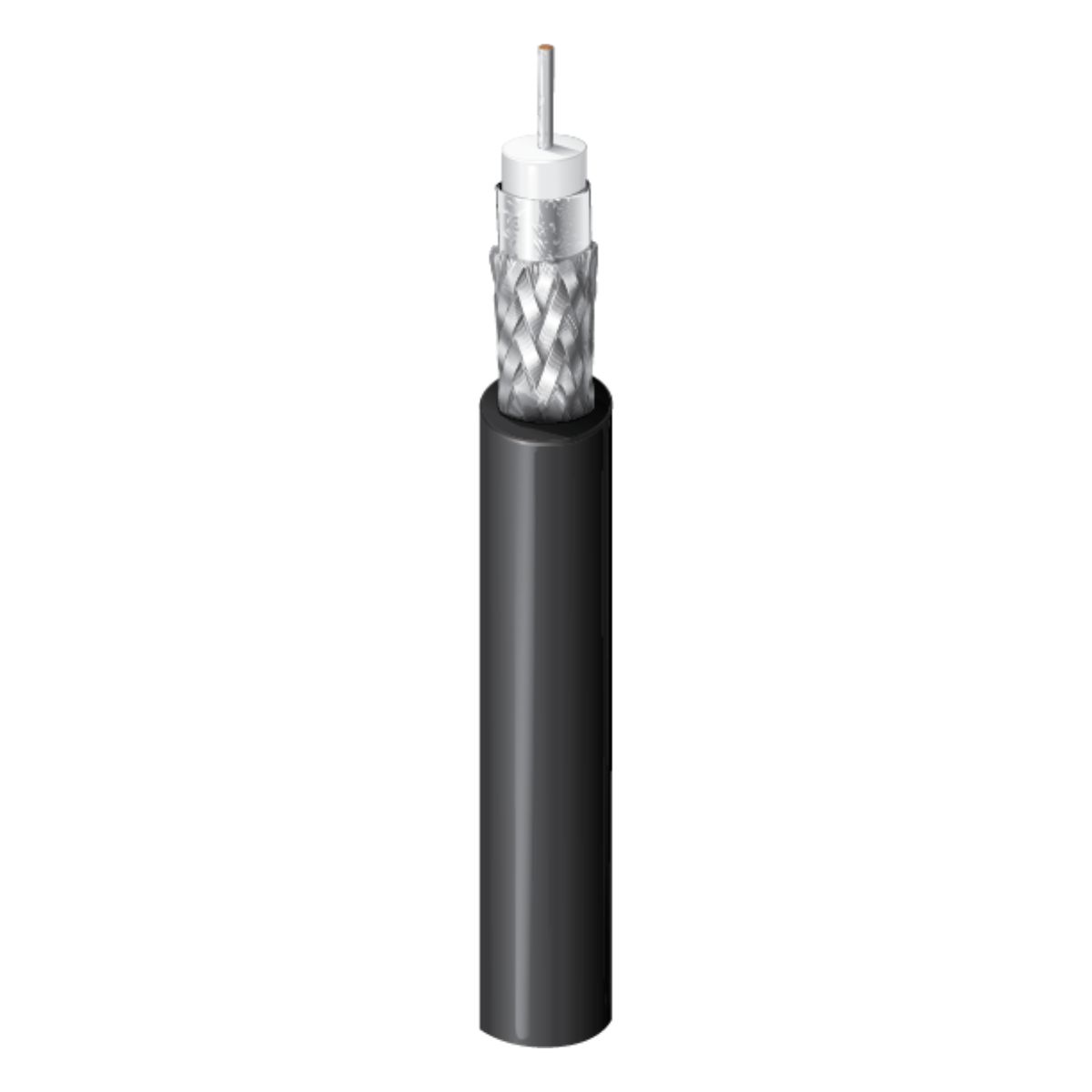

4855R RG59 MINI DIGITAL COAXIAL CABLE,4K
12 GHz, 4K UHD Precision Video Cable, Mini RG-59, 75 Ohm 23 AWG solid 0.023" silver-plated copper conductor, gas-injected foamed high-density polyethylene insulation, Duofoil® bonded to the core + tinned copper braid shield (95% coverage), PVC Jacket
Conductor
| Size | Stranding | Nom. Diameter | Material |
| 23 AWG | Solid | 0.023 in | SC - Silvered Copper |
Insulation
| Material | Nom. Insulation Diameter | Color Code | Notes |
| PE - Polyethylene (Foam) | 0.102 in (2.59 mm) | White | Gas Injected |
Electricals
| Nom. Conductor DCR | Nom. Outer Shield DCR | Nom. Capacitance Cond-to-Shield | Nom. Characteristic Impedance | Nom. Velocity of Prop |
| 19.7 Ohm/1000ft (64.6 Ohm/km) | 3.8 Ohm/1000ft (12 Ohm/km) | 16.3 pF/ft (53.5 pF/m) | 75 Ohm | 82% |
